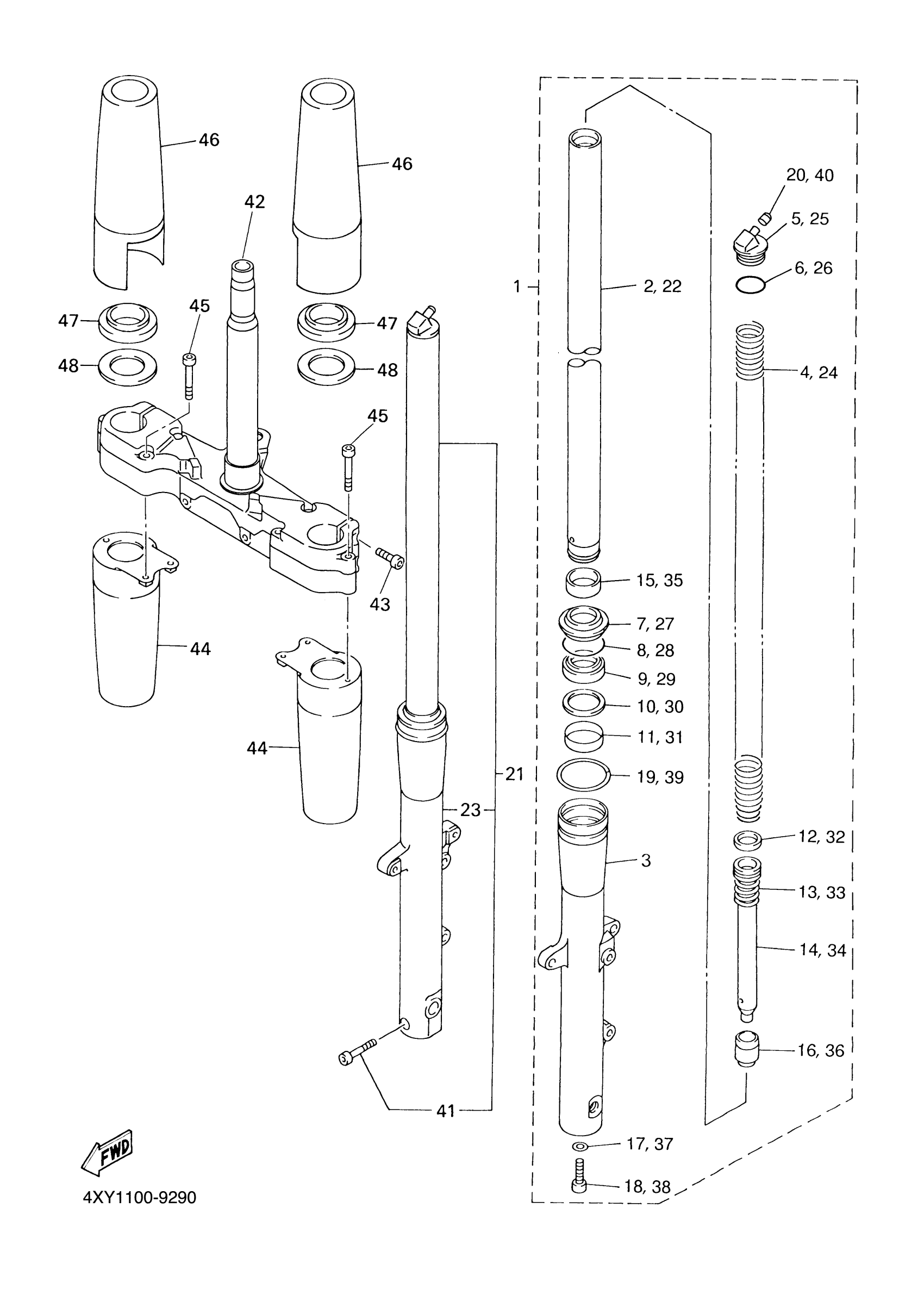

Yamaha XVZ13TFMWC (ROYAL STAR MIDNIGHT VENTURE CA) 2C9E 2007 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

4XY-23102-10-00

Unavailable

2

INNER TUBE COMP.1

4XY-23110-00-00

Unavailable

3

TUBE, OUTER (LEFT)

5MB-23126-00-00

Unavailable

4

SPRING, FRONT FORK

4XY-23141-00-00

$56.99

5

BOLT, CAP

4XY-23111-10-00

$127.99

6

O-RING

4NK-23147-00-00

$6.99

7

SEAL, DUST

4NK-23144-00-00

Unavailable

8

RING, SNAP

34L-23153-00-00

Unavailable

9

OIL SEAL

4NK-23145-00-00

$27.99

10

WASHER, OIL SEAL

4NK-23146-00-00

$9.99

11

METAL, SLIDE 1

4NK-23125-00-00

Unavailable

12

RING, PISTON

4NK-23157-00-00

$9.99

13

SPRING, REBOUND

4NK-23151-00-00

Unavailable

14

PISTON, FRONT FORK

4WM-23171-00-00

Unavailable

15

METAL, SLIDE 2

4NK-23135-01-00

$9.99

16

SPACER, OIL LOCK

4WM-23166-00-00

Unavailable

17

GASKET

3MA-23163-10-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD

4NK-23181-00-00

Unavailable

19

GUIDE, BOOT

4NK-23193-00-00

Unavailable

20

CAP, AIR VALVE

4V1-23184-L0-00

Unavailable

21

FRONT FORK ASSY (R.H)

4XY-23103-10-00

Unavailable

22

INNER TUBE COMP.1

4XY-23110-00-00

Unavailable

23

TUBE, OUTER (RIGHT)

5MB-23136-00-00

Unavailable

24

SPRING, FRONT FORK

4XY-23141-00-00

$56.99

25

BOLT, CAP

4XY-23111-10-00

$127.99

26

O-RING

4NK-23147-00-00

$6.99

27

SEAL, DUST

4NK-23144-00-00

Unavailable

28

RING, SNAP

34L-23153-00-00

Unavailable

29

OIL SEAL

4NK-23145-00-00

$27.99

30

WASHER, OIL SEAL

4NK-23146-00-00

$9.99

31

METAL, SLIDE 1

4NK-23125-00-00

Unavailable

32

RING, PISTON

4NK-23157-00-00

$9.99

33

SPRING, REBOUND

4NK-23151-00-00

Unavailable

34

PISTON, FRONT FORK

4WM-23171-00-00

Unavailable

35

METAL, SLIDE 2

4NK-23135-01-00

$9.99

36

SPACER, OIL LOCK

4WM-23166-00-00

Unavailable

37

GASKET

3MA-23163-10-00

Unavailable

38

BOLT, HEXAGON SOCKET HEAD

4NK-23181-00-00

Unavailable

39

GUIDE, BOOT

4NK-23193-00-00

Unavailable

40

CAP, AIR VALVE

4V1-23184-L0-00

Unavailable

41

BOLT, SOCKET

91314-08035-00

Unavailable

42

UNDER BRACKET COMP.

4XY-23340-01-00

Unavailable

43

BOLT, SOCKET

91317-08030-00

Unavailable

44

COVER, LOWER 1

4NK-23123-10-00

Unavailable

45

BOLT, HEXAGON SOCKET HEAD

4XY-23181-00-00

Unavailable

46

COVER, UPPER 1

4XY-23121-10-00

Unavailable

47

GASKET

4NK-23163-00-00

Unavailable

48

WASHER, FELT

4NK-23165-00-00

Unavailable
