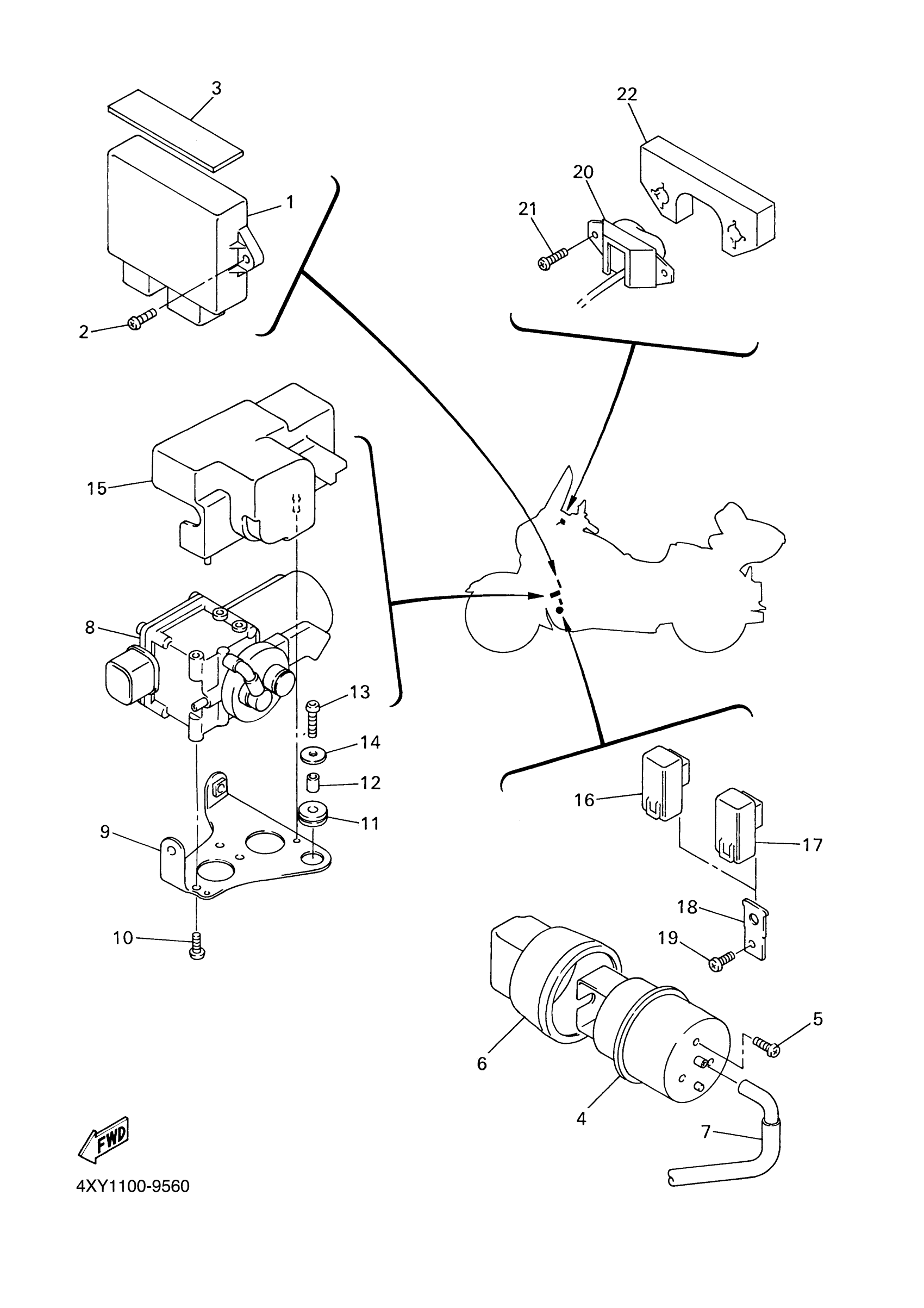

Yamaha XVZ13TFMWC (ROYAL STAR MIDNIGHT VENTURE CA) 2C9E 2007 ELECTRICAL 3 Diagram

#

Description
Price

1

CONTROL UNIT ASSY

4XY-85830-01-00

Unavailable

2

SCREW, TRUSS TAP.

97707-60016-00

$1.70

3

DAMPER

4XY-2834E-00-00

$2.34

4

VACUUM ACTUATOR

4XY-85860-00-00

Unavailable

5

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

6

COVER, WIRE

4XY-85825-00-00

Unavailable

7

PIPE 1

4XY-2840B-00-00

Unavailable

8

PUMP, VACUUM

4XY-85861-00-00

Unavailable

9

STAY 1

4XY-28321-00-00

Unavailable

10

SCREW, TRUSS TAP.

97707-50014-00

$8.49

11

GROMMET(2GH)

90480-12475-00

$8.49

12

COLLAR

90387-06113-00

$11.49

13

BOLT, BUTTON

92017-06020-00

$3.76

14

WASHER, PLATE

90201-06020-00

$9.49

15

COVER

4XY-28365-00-00

Unavailable

16

RELAY ASSY (1UY-92)

1UY-81950-92-00

Unavailable

17

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

18

STAY, RELAY

1VJ-81953-00-00

Unavailable

19

SCREW, TRUSS TAP.

97707-50014-00

$8.49

20

AUTO CRUISE SWITCH ASSY

4XY-8596A-00-00

Unavailable

21

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

22

DAMPER

4XY-82176-00-00

Unavailable
