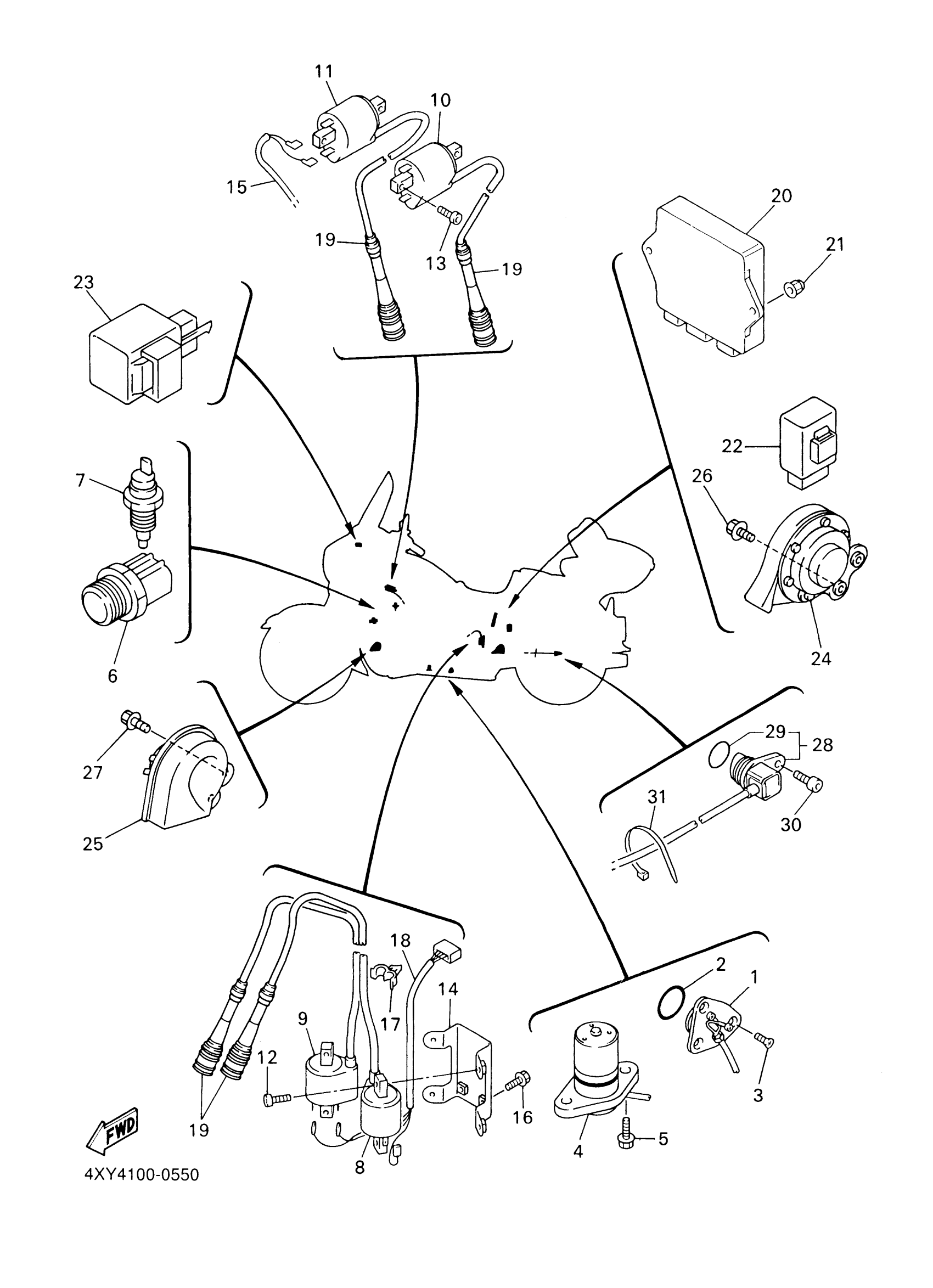

Yamaha XVZ13TFMWC (ROYAL STAR MIDNIGHT VENTURE CA) 2C9E 2007 ELECTRICAL 2 Diagram

#

Description
Price

1

NEUTRAL SWITCH ASSY

4WY-82540-00-00

Unavailable

2

O-RING (371)

93210-29196-00

$8.49

3

SCREW(3HX)

90149-05245-00

$8.49

4

OIL LEVEL GAUGE ASSY

4XY-85720-00-00

Unavailable

5

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

6

THERMO SWITCH ASSY

5EB-82560-01-00

Unavailable

7

THERMO SWITCH ASSY

3YX-82560-00-00

$83.99

8

IGNITION COIL ASSY

4XY-82310-00-00

Unavailable

9

IGNITION COIL ASSY

4XY-82310-10-00

Unavailable

10

IGNITION COIL ASSY

4XY-82320-10-00

Unavailable

11

IGNITION COIL ASSY

4XY-82320-00-00

$144.99

12

BOLT, SOCKET

91317-05016-00

$3.28

13

BOLT(4TW)

97017-05016-00

$3.29

14

BRACKET, IGNITION COIL

4NK-82316-00-00

Unavailable

15

WIRE, SUB LEAD

4XY-82309-00-00

Unavailable

16

BOLT, FLANGE

95817-06010-00

Unavailable

17

CLAMP(3LD)

90464-09130-00

Unavailable

18

WIRE, SUB LEAD

4NK-82509-00-00

Unavailable

19

PLUG CAP ASSY

4XY-82370-00-00

Unavailable

20

IGNITOR UNIT ASSY

4XY-82305-00-00

Unavailable

21

NUT, CROWN(2GM)

90176-06065-00

Unavailable

22

FLASHER RELAY ASSY

4NK-83350-01-00

Unavailable

23

FLASHER RELAY ASSY

3GM-83350-03-00

Unavailable

24

HORN

4NK-83371-00-00

Unavailable

25

HORN

4XY-83371-00-00

Unavailable

26

BOLT, WITH WASHER(4ES)

90119-06217-00

Unavailable

27

BOLT, FLANGE

95817-06010-00

Unavailable

28

SENSOR, SPEED

4NK-83755-01-00

Unavailable

29

O-RING

4NK-85075-00-00

Unavailable

30

BOLT,HEX. SOCKET BUTTON

90111-08053-00

Unavailable

31

CLAMP(MF1)

90464-15152-00

Unavailable
