Description

Price

1

HANDLEBAR

4XY-26111-01-00

Unavailable

2

GRIP

4NK-26241-01-00

Unavailable

3

END, GRIP

4XY-26246-00-00

$60.99

4

PLUG(42X)

90338-10164-00

$9.49

5

GRIP ASSY

4XY-26240-00-00

$91.99

6

CABLE, THROTTLE 1

4XY-26311-10-00

Unavailable

7

CABLE, THROTTLE 2

4XY-26312-10-00

Unavailable

8

GASKET, EXHAUST

98507-05008-00

$3.55

9

BAND, SWITCH CORD

437-83936-11-00

$4.63

10

CABLE, THROTTLE 3

4XY-26313-00-00

Unavailable

11

CABLE, THROTTLE 4

4XY-2631J-00-00

Unavailable

12

HOUSING

41V-2629A-00-00

$27.99

13

NUT, U

95617-05100-00

$9.49

14

CLAMP, WIRE

41V-2627E-00-00

$5.49

15

SCREW, PAN HEAD

98507-05014-00

$8.49

16

WASHER(1RW)

92907-05600-00

Unavailable

17

ROTOR

41V-26273-00-00

Unavailable

18

ROTOR 2

41V-2627A-00-00

Unavailable

19

HOUSING 2

41V-2629G-01-00

Unavailable

20

SCREW, PAN HEAD(4MY)

98507-05025-00

Unavailable

21

WASHER(1RW)

92907-05600-00

Unavailable

22

SPRING, HOUSING SUPPORT

41V-2629L-00-00

Unavailable

23

CABLE, CONTROL 1

4XY-2637E-00-00

Unavailable

24

REAR VIEW MIRROR ASSY (LEFT)

4XY-26280-10-00

Unavailable

25

NUT 1

4XY-26294-10-00

Unavailable

26

REAR VIEW MIRROR ASSY (RIGHT)

4XY-26290-10-00

Unavailable

27

NUT 2

4XY-26295-10-00

Unavailable

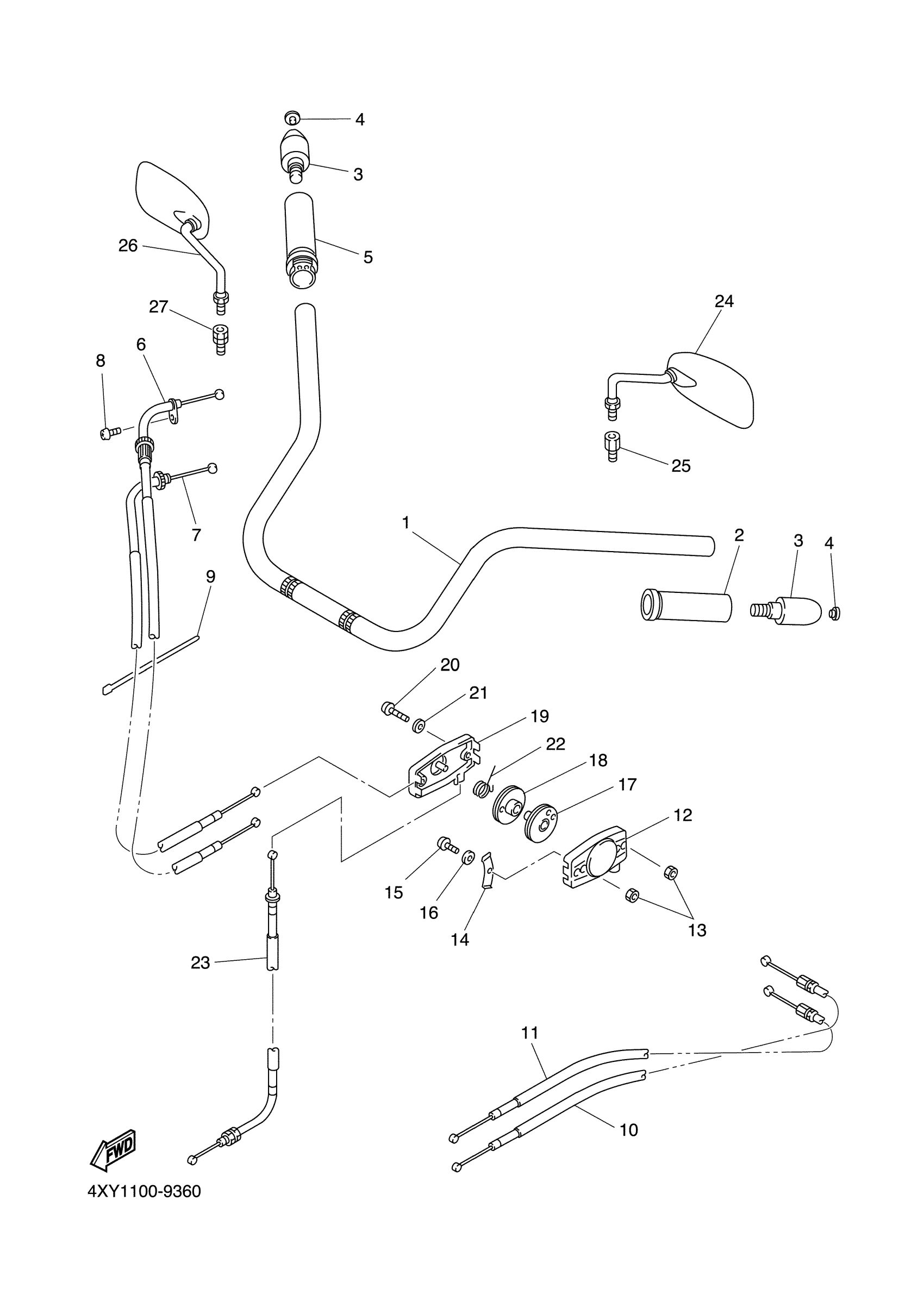

Yamaha XVZ13TFMTC (ROYAL STAR MIDNIGHT VENTURE CA) 2C92 2005 STEERING HANDLE CABLE Diagram

HANDLEBAR

GRIP

END, GRIP

PLUG(42X)

GRIP ASSY

CABLE, THROTTLE 1

CABLE, THROTTLE 2

GASKET, EXHAUST

BAND, SWITCH CORD

CABLE, THROTTLE 3

CABLE, THROTTLE 4

HOUSING

NUT, U

CLAMP, WIRE

SCREW, PAN HEAD

WASHER(1RW)

ROTOR

ROTOR 2

HOUSING 2

SCREW, PAN HEAD(4MY)

WASHER(1RW)

SPRING, HOUSING SUPPORT

CABLE, CONTROL 1

REAR VIEW MIRROR ASSY (LEFT)

NUT 1

REAR VIEW MIRROR ASSY (RIGHT)

NUT 2
