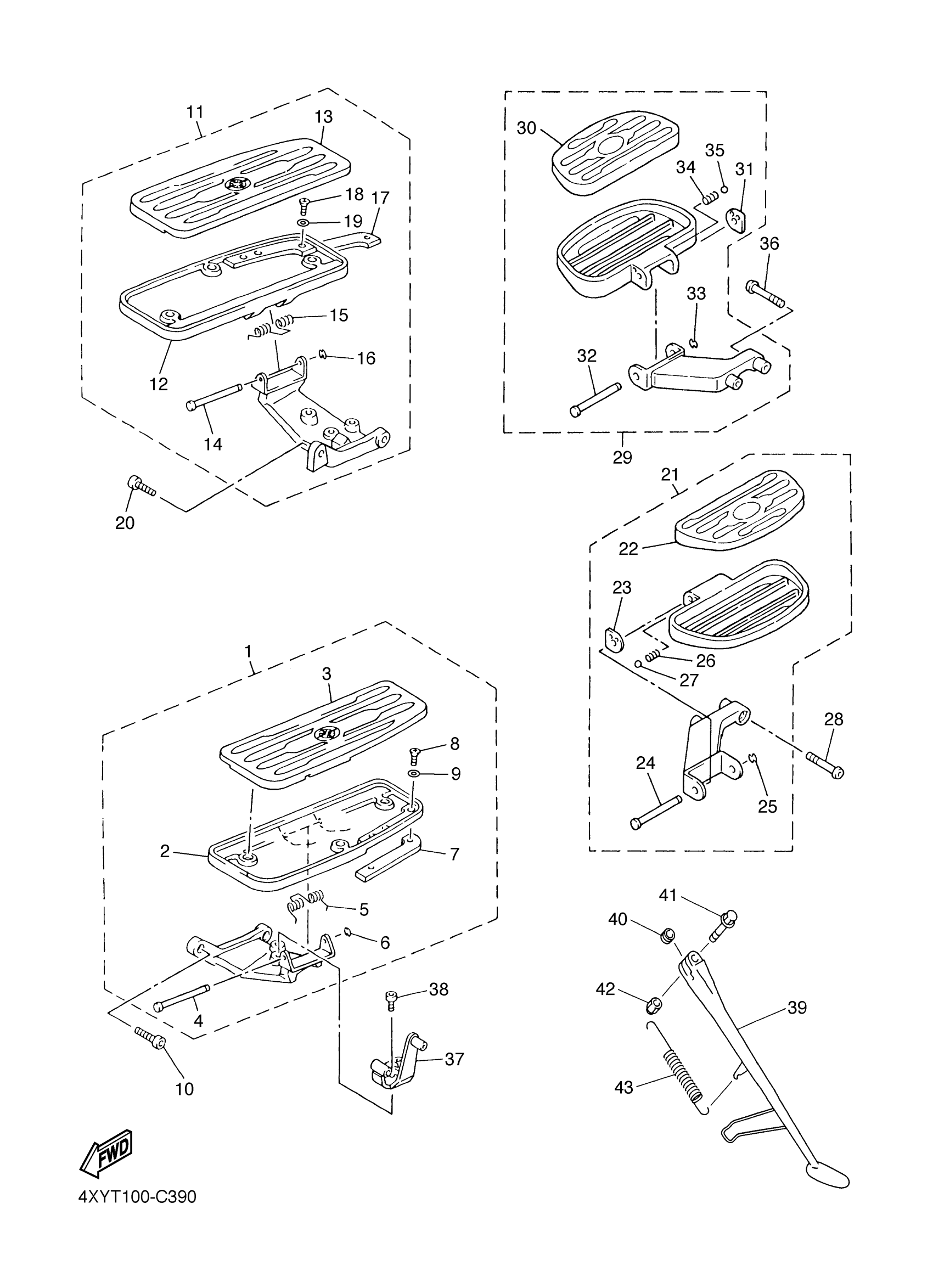

Yamaha XVZ13TFMTC (ROYAL STAR MIDNIGHT VENTURE CA) 2C92 2005 STAND FOOTREST Diagram

#

Description
Price

1

FRONT FOOTREST ASSY (LEFT)

4XY-27410-10-00

Unavailable

2

FOOTREST

4NK-27451-10-00

Unavailable

3

COVER, FOOTREST

4XY-27413-01-00

Unavailable

4

SHAFT

3D8-27427-00-00

$7.99

5

SPRING, RETURN

4NK-27426-00-00

$6.99

6

CIRCLIP(53L)

99001-06600-00

$1.01

7

MOLE 1

4NK-27496-00-00

$25.99

8

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

9

WASHER, PLAIN LARGE

92907-05200-00

$4.46

10

BOLT, SOCKET

91317-10030-00

$9.49

11

FRONT FOOTREST ASSY (RIGHT)

4XY-27420-10-00

Unavailable

12

FOOTREST

4NK-27461-10-00

Unavailable

13

COVER, FOOTREST

4XY-27423-01-00

Unavailable

14

SHAFT

3D8-27427-00-00

$7.99

15

SPRING, RETURN

4NK-27426-00-00

$6.99

16

CIRCLIP(53L)

99001-06600-00

$1.01

17

MOLE 2

4NK-27497-00-00

Unavailable

18

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

19

WASHER, PLAIN LARGE

92907-05200-00

$4.46

20

BOLT, SOCKET

91317-10030-00

$9.49

21

REAR FOOTREST ASSY 1

4XY-27430-00-00

Unavailable

22

. COVER, REAR FOOTREST

4YE-27433-00-00

Unavailable

23

WASHER, SPECIAL

4YE-27437-01-00

Unavailable

24

. SHAFT

4YE-27427-00-00

Unavailable

25

CIRCLIP(53L)

99001-06600-00

$1.01

26

SPRING, COMPRESSION (23X)

90501-13720-00

Unavailable

27

BALL

93501-04011-00

Unavailable

28

BOLT, BUTTON HEAD

92017-08040-00

Unavailable

29

REAR FOOTREST ASSY 2

4XY-27440-00-00

Unavailable

30

. COVER, REAR FOOTREST

4YE-27433-00-00

Unavailable

31

WASHER, SPECIAL

4YE-27437-01-00

Unavailable

32

. SHAFT

4YE-27427-00-00

Unavailable

33

CIRCLIP(53L)

99001-06600-00

$1.01

34

SPRING, COMPRESSION (23X)

90501-13720-00

Unavailable

35

BALL

93501-04011-00

Unavailable

36

BOLT, BUTTON HEAD

92017-08040-00

Unavailable

37

BRACKET 3

4NK-27443-00-00

Unavailable

38

BOLT, SOCKET

91317-08014-00

Unavailable

39

STAND, SIDE

4XY-27311-00-00

Unavailable

40

COLLAR

90387-1215U-00

Unavailable

41

BOLT, WASHER BASED(2HX)

90105-12460-00

Unavailable

42

NUT, SELF-LOCKING(1KH)

90185-12134-00

Unavailable

43

SPRING, TENSION(4BF)

90506-35474-00

Unavailable
