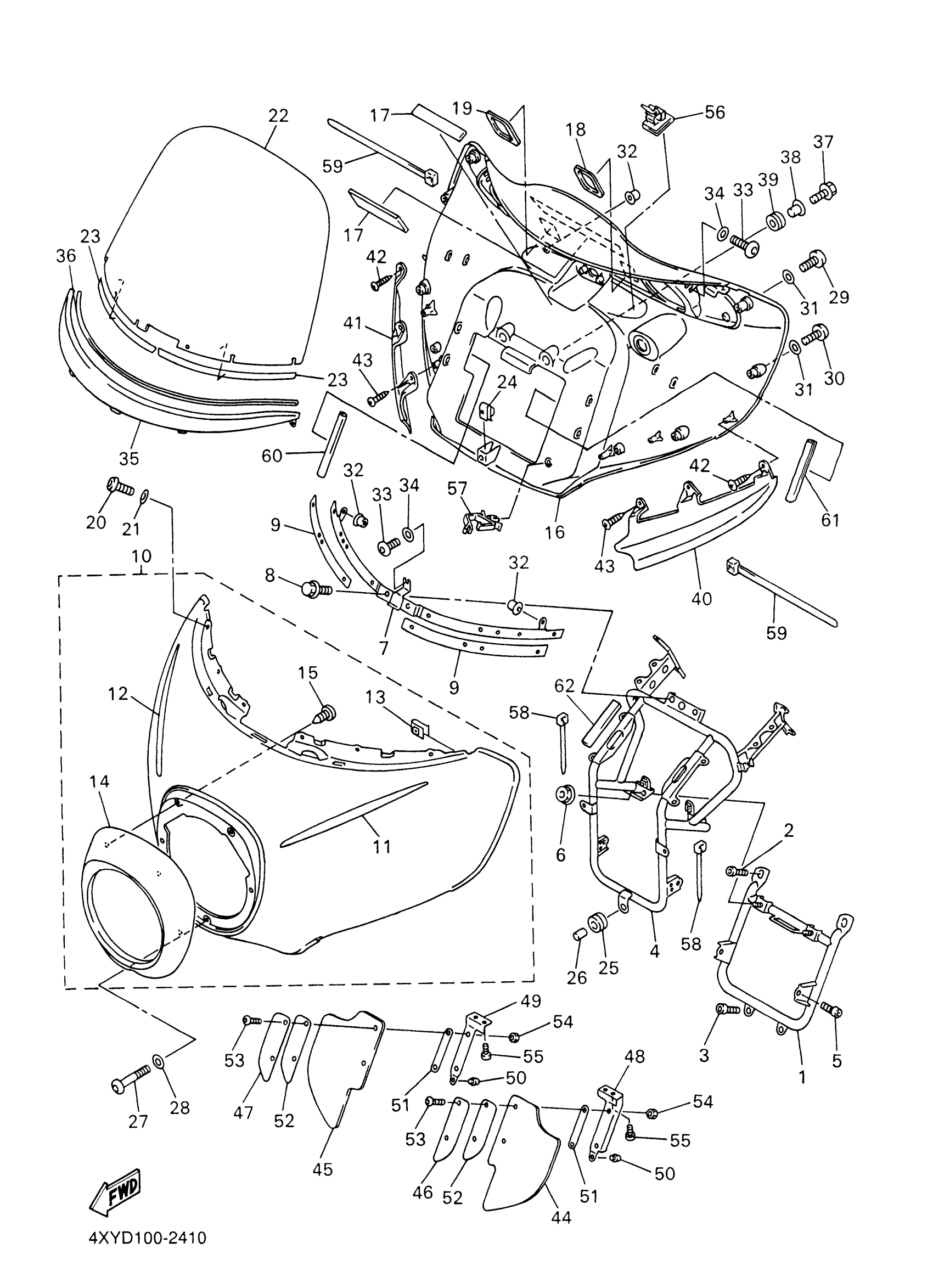

Yamaha XVZ13TFMTC (ROYAL STAR MIDNIGHT VENTURE CA) 2C92 2005 COWLING 1 Diagram

#

Description
Price

1

STAY, MAIN 1

4XY-2831R-00-00

$174.99

2

BOLT, BUTTON

92017-10030-00

$4.99

3

BOLT, SOCKET

91317-08016-00

$8.49

4

STAY 1

4XY-28356-00-00

Unavailable

5

BOLT, SOCKET

91317-08014-00

$8.49

6

NUT, FLANGE(JN5)

95707-08500-00

$3.13

7

STAY 2

4XY-28357-00-00

$133.99

8

BOLT, FLANGE

95817-06012-00

$1.43

9

DAMPER

4XY-28372-00-00

$8.99

10

BODY, FRONT UPPER 1

2C9-Y283G-00-P0

Unavailable

11

MOLE 5

4XY-2834G-00-00

$134.99

12

MOLE 6

4XY-2834H-00-00

$152.99

13

NUT, SPRING

90183-051A0-00

$3.81

14

RIM, HEADLIGHT

4XY-2835A-00-00

$253.99

15

SCREW, TRUSS TAP.

97707-40014-00

Unavailable

16

COWLING ASSY

2C9-28350-00-00

Unavailable

17

DAMPER (L.H)

1AE-2834E-00-00

Unavailable

18

DAMPER

4XY-2834F-00-00

Unavailable

19

CAP 2

4XY-2834J-00-00

Unavailable

20

BOLT, BUTTON HEAD

92017-05018-00

Unavailable

21

WASHER, PLATE(39X)

90201-057H5-00

Unavailable

22

SCREEN

4XY-2837U-01-00

Unavailable

23

SEAL

4XY-28307-00-00

Unavailable

24

NUT, SPRING (26H)

90183-06023-00

Unavailable

25

GROMMET

90480-12529-00

Unavailable

26

COLLAR(1LJ)

90387-067N5-00

Unavailable

27

BOLT, BUTTON HEAD

92014-06050-00

Unavailable

28

WASHER PLATE 626441880000

90202-06007-00

Unavailable

29

BOLT, BUTTON HEAD

92014-05035-00

Unavailable

30

BOLT, BUTTON HEAD

92014-05025-00

Unavailable

31

. WASHER, PLATE

90202-05088-00

Unavailable

32

NUT(1KT)

90179-05523-00

Unavailable

33

BOLT, BUTTON

92017-05012-00

Unavailable

34

WASHER, PLATE(39X)

90201-057H5-00

Unavailable

35

MOLE 1

4XY-28345-00-00

Unavailable

36

DAMPER

4XY-28371-00-00

Unavailable

37

BOLT, FLANGE

95817-06020-00

Unavailable

38

COLLAR(36Y)

90387-067K8-00

Unavailable

39

GROMMET (2N3)

90480-16233-00

Unavailable

40

PROTECTOR 1

4XY-2834V-00-00

Unavailable

41

PROTECTOR 2

4XY-2834W-00-00

Unavailable

42

SCREW, TRUSS TAP.

97707-50014-00

Unavailable

43

SCREW, TRUSS TAP.

97707-60016-00

Unavailable

44

PANEL 1

4XY-2835U-00-00

Unavailable

45

PANEL 2

4XY-2835V-00-00

Unavailable

46

PLATE 1

4XY-28396-00-00

Unavailable

47

PLATE 2

4XY-28397-00-00

Unavailable

48

BRACKET 1

4XY-2836A-01-00

Unavailable

49

BRACKET 2

4XY-2836E-01-00

Unavailable

50

DAMPER 2

5A8-21639-00-00

Unavailable

51

DAMPER 5

4XY-2837J-00-00

Unavailable

52

DAMPER 6

4XY-2837K-00-00

Unavailable

53

BOLT, BUTTON

92014-06016-00

Unavailable

54

NUT(650)

95380-06700-00

Unavailable

55

BOLT, BUTTON HEAD

92014-06010-00

Unavailable

56

CLAMP(1NL)

90464-62085-00

Unavailable

57

CLAMP (1J7)

90464-16021-00

Unavailable

58

BAND

1UA-82591-00-00

Unavailable

59

CLAMP

90464-20258-00

Unavailable

60

MOLE 3

4XY-28347-00-00

Unavailable

61

MOLD, FUEL TANK

1HX-24188-01-00

Unavailable

62

DAMPER

4XY-88158-00-00

Unavailable
