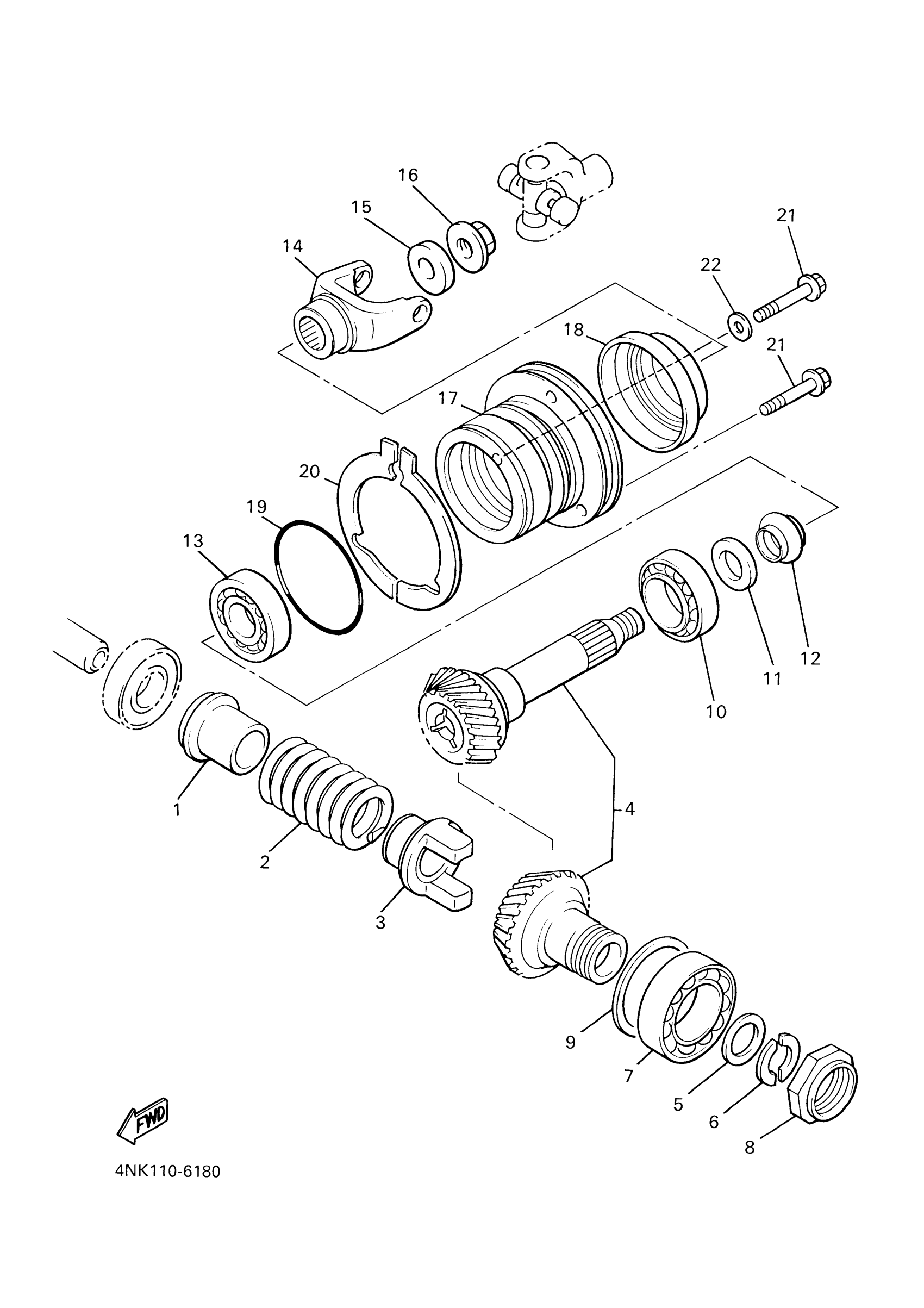

Yamaha XVZ13TFMSC (ROYAL STAR MIDNIGHT VENTURE CA) 4XYR 2004 MIDDLE DRIVE GEAR Diagram

#

Description
Price

1

HOLDER

2WE-17524-00-00

$25.99

2

SPRING, COMPRESSION (5A8)

90501-75638-00

$33.99

3

CAM, DRIVEN

2WE-17527-00-00

Unavailable

4

MIDDLE GEAR

26H-W1751-02-00

Unavailable

5

WASHER, PLATE(1FK)

90201-252K4-00

Unavailable

6

WASHER(1FK)

90209-21281-00

$24.99

7

BRG,R-B 6209RSH2-C2 85MM 412G

93306-20901-00

Unavailable

8

NUT (4X7)

90179-44328-00

Unavailable

9

SHIM, PINION

4X7-17531-00-15

$3.54

9

SHIM, PINION

4X7-17531-00-30

$4.94

9

SHIM, PINION

4X7-17531-00-50

$4.78

10

BRG,TAPERED ROLLER 62MM KY

93332-00028-00

$55.99

11

WASHER, PLATE (1J7)

90201-25634-00

$11.49

12

SPACER, EXPANSION

2H7-17571-01-00

Unavailable

13

BRG,TAPERED ROLLER 52MM KY

93332-00024-00

Unavailable

14

YOKE, JOINT

26H-17556-00-00

Unavailable

15

WASHER, PLATE(3JP)

90201-166R6-00

Unavailable

16

NUT(3JP)

90179-16662-00

Unavailable

17

HOUSING, BEARING

26H-17551-00-00

Unavailable

18

OIL SEAL (35X63X16.5-1J7)

93101-35085-00

Unavailable

19

O-RING (2H7)

93210-71360-00

Unavailable

20

SHIM, PINION(0.10T)

3UF-17531-00-00

Unavailable

20

SHIM, PINION (0.15T)

3UF-17531-10-00

Unavailable

20

SHIM, PINION (0.20T)

3UF-17531-20-00

Unavailable

20

SHIM, PINION (0.30T)

3UF-17531-30-00

Unavailable

20

SHIM, PINION

3UF-17531-40-00

Unavailable

20

SHIM, PINION

3UF-17531-50-00

Unavailable

21

BOLT, FLANGE(6TA)

95817-08030-00

Unavailable

22

WASHER (1T1)

90201-08649-00

Unavailable
