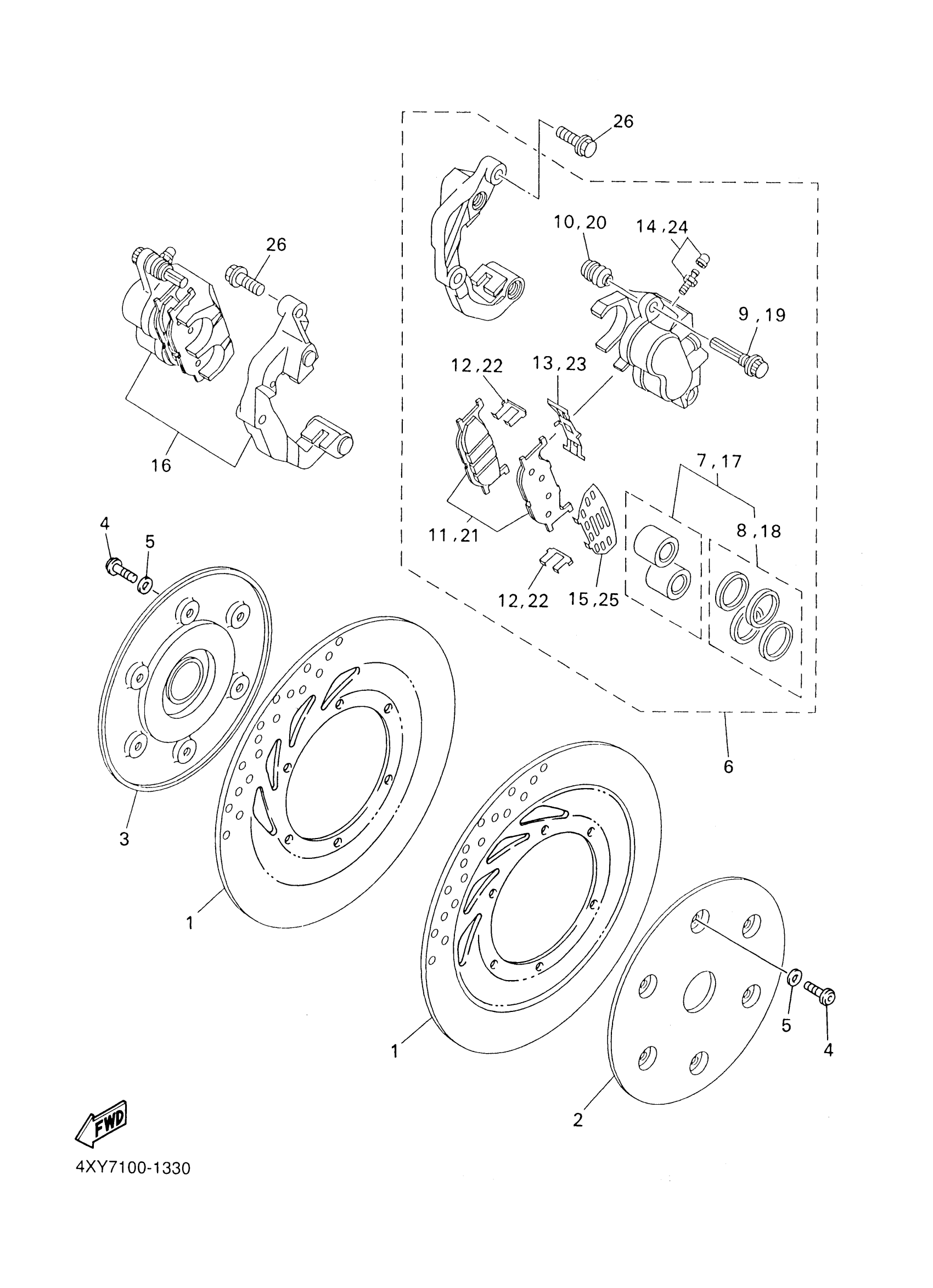

Yamaha XVZ13TFMSC (ROYAL STAR MIDNIGHT VENTURE CA) 4XYR 2004 FRONT BRAKE CALIPER Diagram

DISC, BRAKE (RIGHT)

5BN-2582U-00-00

$292.99

RING, WHEEL 1 (LEFT)

4NK-2514A-00-00

Unavailable

RING, WHEEL 2 (RIGHT)

4NK-2515A-00-00

Unavailable

SCREW

90149-08052-00

$8.49

WASHER, PLATE

90201-08014-00

$7.49

CALIPER ASSY (LEFT)

4WM-2580T-01-00

Unavailable

PISTON ASSY, CALIPER

3JB-25802-00-00

$142.99

CALIPER SEAL KIT

3JB-25803-00-00

$45.99

PIN, SLIDE

5JW-25914-10-00

$22.99

BOOT 2

4TT-25937-00-00

$16.49

BRAKE PAD KIT

4WM-W0045-00-00

$44.99

SUPPORT, PAD

4BP-25919-00-00

$44.99

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

BLEED SCREW KIT

15B-W0048-00-00

$19.99

SHIM, CALIPER

5BN-25827-00-00

Unavailable

CALIPER ASSY (RIGHT)

4WM-2580U-01-00

Unavailable

PISTON ASSY, CALIPER

3JB-25802-00-00

$142.99

CALIPER SEAL KIT

3JB-25803-00-00

$45.99

PIN, SLIDE

5JW-25914-10-00

$22.99

BOOT 2

4TT-25937-00-00

$16.49

BRAKE PAD KIT

4WM-W0045-00-00

$44.99

SUPPORT, PAD

4BP-25919-00-00

$44.99

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

BLEED SCREW KIT

15B-W0048-00-00

$19.99

SHIM, CALIPER

5BN-25827-00-00

Unavailable

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable
