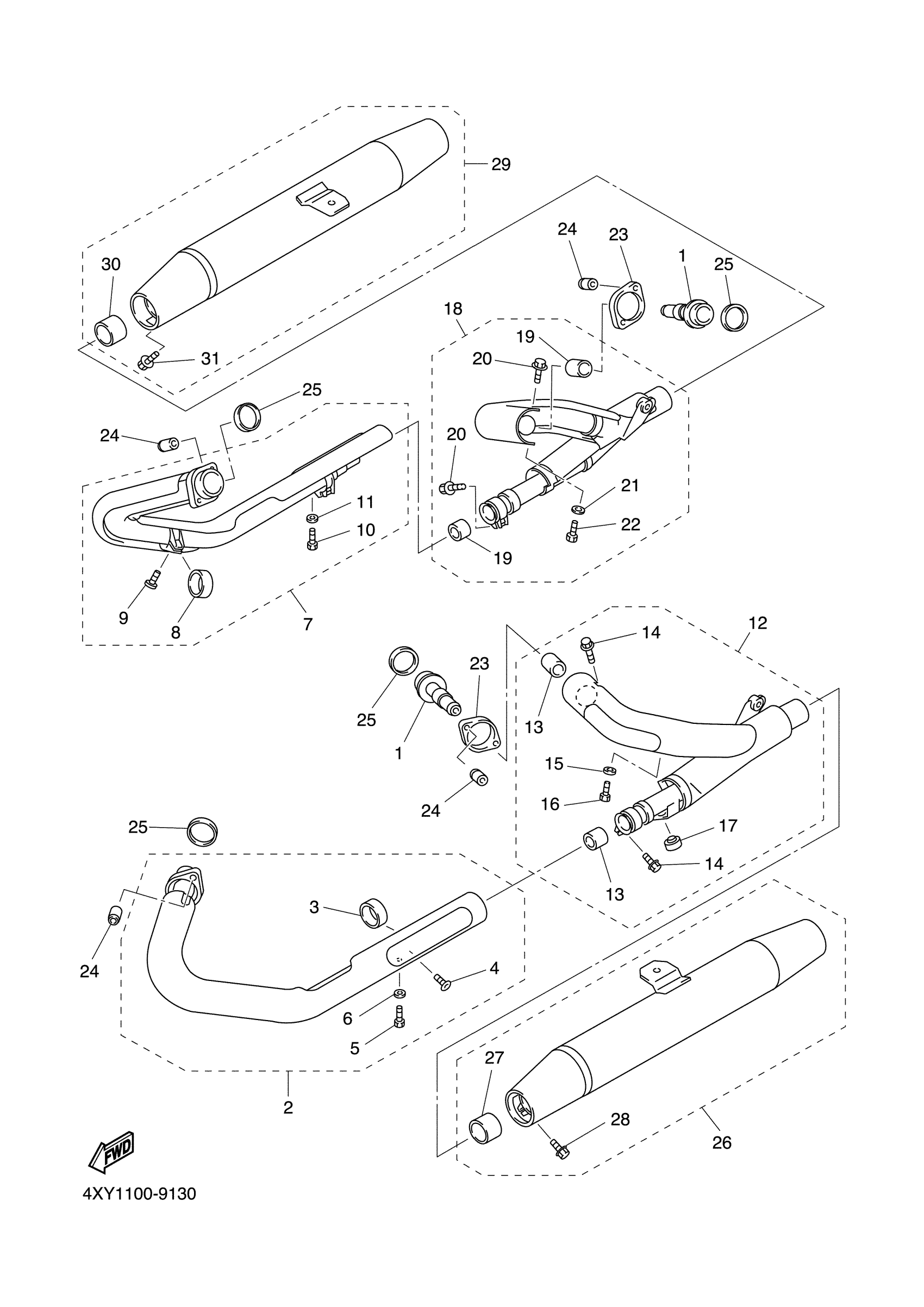

Yamaha XVZ13TFMSC (ROYAL STAR MIDNIGHT VENTURE CA) 4XYR 2004 EXHAUST Diagram

#

Description
Price

1

FLANGE, EXHAUST PIPE

4YE-14614-00-00

Unavailable

2

EXHAUST PIPE ASSY 2

4NK-14620-01-00

$293.99

3

GASKET, MUFFLER

4NK-14714-00-00

$27.99

4

BOLT, BUTTON

92017-08025-00

$8.49

5

BOLT (FJ1)

97080-06008-00

$2.34

6

WASHER, PLAIN (646)

92990-06600-00

$2.80

7

EXHAUST PIPE ASSY 4

4NK-14650-01-00

Unavailable

8

GASKET, MUFFLER

4NK-14714-00-00

$27.99

9

BOLT, BUTTON

92017-08025-00

$8.49

10

BOLT (FJ1)

97080-06008-00

$2.34

11

WASHER, PLAIN (646)

92990-06600-00

$2.80

12

CHAMBER ASSY

4XY-14730-00-00

Unavailable

13

GASKET, MUFFLER

4BH-14714-00-00

$45.99

14

BOLT, FLANGE(2UJ)

95024-08020-00

$8.49

15

WASHER, PLAIN (646)

92990-06600-00

$2.80

16

BOLT (FJ1)

97080-06008-00

$2.34

17

STOPPER, MAIN STAND

116-27114-00-00

Unavailable

18

CHAMBER ASSY

4XY-14730-10-00

Unavailable

19

GASKET, MUFFLER

4BH-14714-00-00

$45.99

20

BOLT, FLANGE(2UJ)

95024-08020-00

$8.49

21

WASHER, PLAIN (646)

92990-06600-00

$2.80

22

BOLT (FJ1)

97080-06008-00

$2.34

23

NUT, RING

4KG-14612-01-00

Unavailable

24

NUT

90179-08442-00

Unavailable

25

GASKET, EXHAUST PIPE

3GD-14613-00-00

Unavailable

26

MUFFLER ASSY 1

4XY-14710-01-00

Unavailable

27

GASKET, MUFFLER

3XW-14714-00-00

Unavailable

28

BOLT, FLANGE(4PU)

95814-08025-00

Unavailable

29

MUFFLER ASSY 2

4XY-14720-01-00

Unavailable

30

GASKET, MUFFLER

3XW-14714-00-00

Unavailable

31

BOLT, FLANGE(4PU)

95814-08025-00

Unavailable
