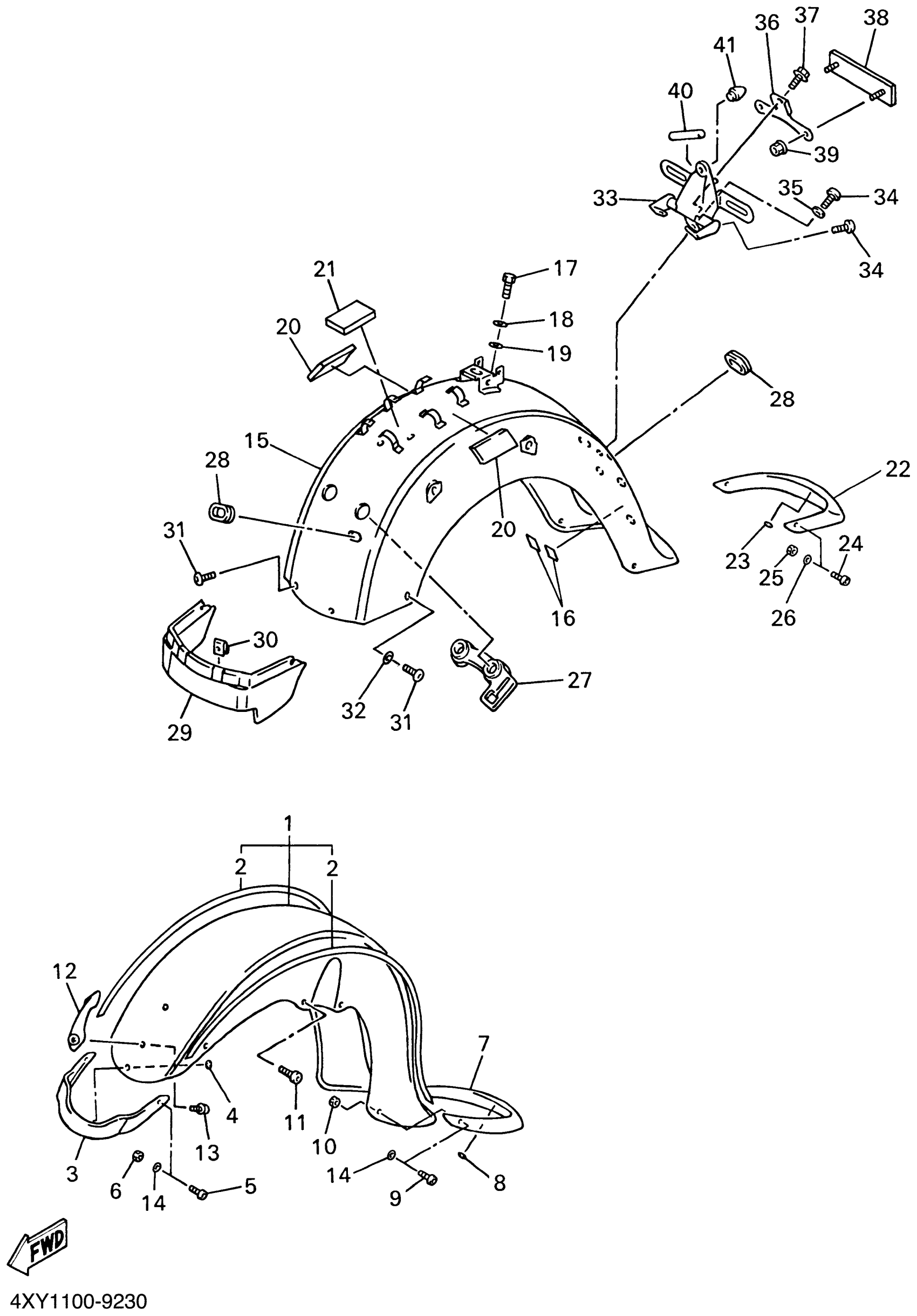

Yamaha XVZ13TFLC (ROYAL STAR VENTURE CA) 4XY2 1999 FENDER Diagram
#
1
FRONT FENDER ASSEMBLY (YELLOWISH GRAY METALLIC 5) (MARBLE SILVER)
4NL-Y2150-H0-8X
Unavailable
1
FRONT FENDER ASSEMBLY (GRAY METALLIC 5) (VERY DARK MAGENTA COCKTAIL 1)
4NL-Y2150-J0-9X
Unavailable
2
. GRAPHIC SET, FRONT FENDER (YELLOWISH GRAY METALLIC 5)
4XY-21570-00-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (VERY DARK MAGENTA COCKTAIL 1)
4XY-21570-10-00
Unavailable
3
FLAP 2
4NL-21561-11-00
Unavailable
7
FLAP, FRONT FENDER
4NL-21521-10-00
Unavailable
12
MASCOT
4NL-21577-00-00
Unavailable
14
SEAL 1
4NL-21575-10-00
Unavailable
15
REAR FENDER COMP.
4XY-21610-00-0L
Unavailable
15
REAR FENDER C0MP. (VERY DARK MAGENTA COCKTAIL 1)
4XY-YK216-00-P0
Unavailable
16
PROTECTOR
3MA-27491-00-00
Unavailable
17
BOLT, HEXAGON
97017-08016-00
Unavailable
18
WASHER(6TC)
92907-08200-00
Unavailable
19
WASHER, PLATE(8BV)
90202-09227-00
Unavailable
20
DAMPER 2
4XY-21639-00-00
Unavailable
21
DAMPER
4XY-21649-00-00
Unavailable
22
FLAP
4NL-21621-10-00
Unavailable
26
SEAL 1
4NL-21575-10-00
Unavailable
27
DAMPER
4NK-21649-00-00
Unavailable
28
GROMMET (438)
90480-15061-00
Unavailable
29
FLAP (YELLOWISH GRAY METALLIC 5) (MARBLE SILVER)
4NK-21621-00-0L
Unavailable
29
FLAP (VERY DARK MAGENTA COCKTAIL 1)
4NK-21621-00-P2
Unavailable
30
NUT, SPRING(4ES)
90183-06069-00
Unavailable
31
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
32
WASHER, PLATE
90202-06170-00
Unavailable
33
STAY, 9
4YE-2317W-00-00
Unavailable
34
BOLT, BUTTON HEAD(3JP)
92014-06012-00
Unavailable
35
WASHER, PLATE 6261117600
90201-06043-00
Unavailable
36
BRACKET, REFLECTOR
4NK-21641-00-00
Unavailable
37
BOLT, FLANGE(2UJ)
95024-06010-00
Unavailable
38
REAR REFLECTOR ASSY
1FK-85130-00-00
Unavailable
39
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
40
HOSE (583)
90446-07114-00
Unavailable
41
DAMPER 2
5A8-21639-00-00
Unavailable
