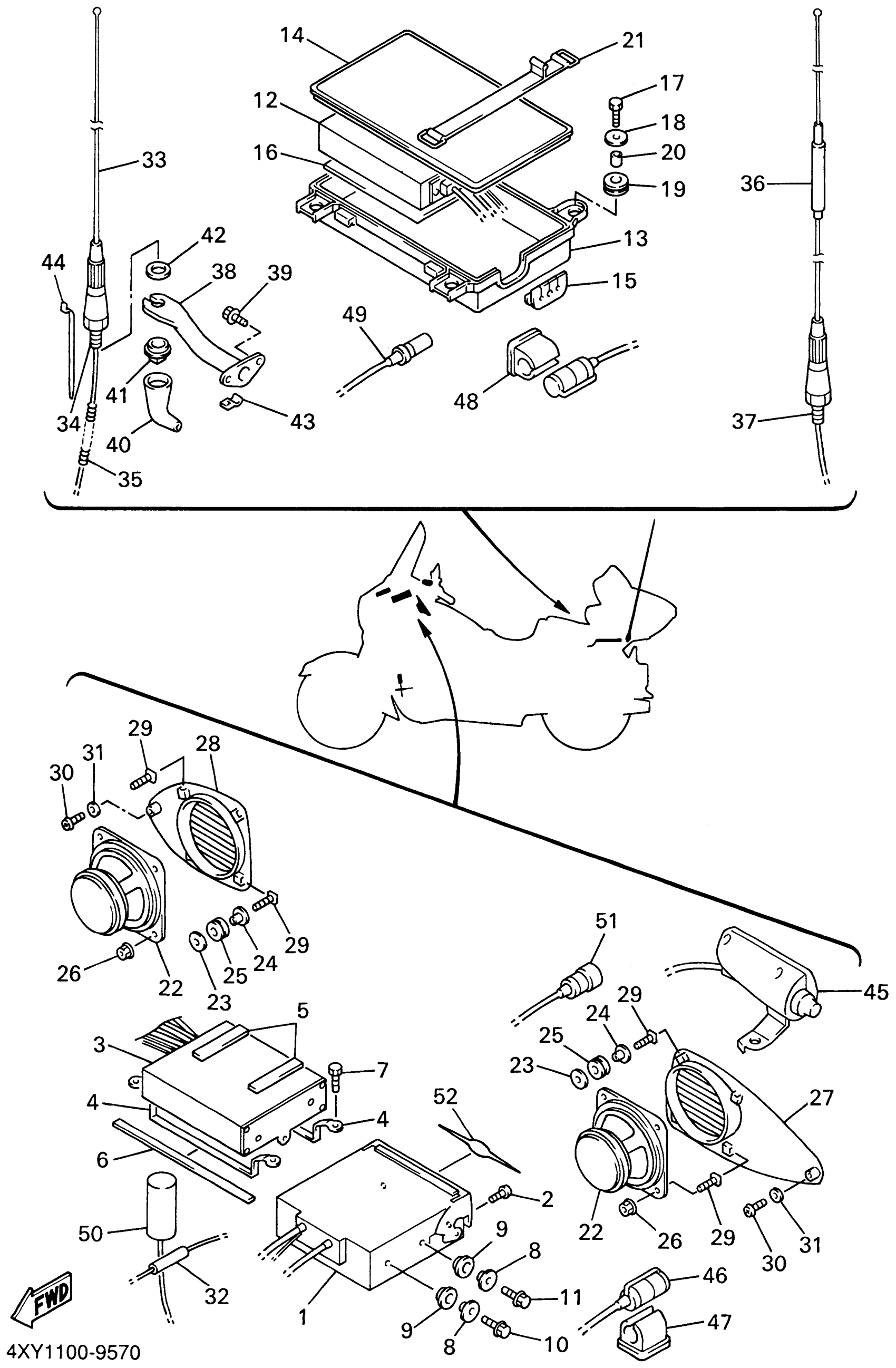

Yamaha XVZ13TFLC (ROYAL STAR VENTURE CA) 4XY2 1999 AUDIO EQUIPMENT 1 Diagram

#

Description
Price

1

CASSETTE DECK ASSEMBLY

4XY-88150-00-P0

Unavailable

1

CASSETTE DECK ASSEMBLY

4XY-88150-00-P1

Unavailable

2

SCREW, PAN HEAD

98517-04012-00

$3.88

3

AMP. POWER

4XY-88132-01-00

Unavailable

4

BRACKET, RADIO

4XY-88114-00-00

Unavailable

5

DAMPER

4XY-88158-00-00

Unavailable

6

DAMPER

4XY-88149-00-00

$1.46

7

BOLT

97027-05010-00

Unavailable

8

COLLAR (838-84757-00)

90387-06024-00

$11.49

9

GROMMET(1FN)

90480-14429-00

$7.49

10

BOLT, FLANGE(4DU)

95027-06014-00

$8.49

11

BOLT, FLANGE(2UJ)

95024-06012-00

$4.41

12

BLACK BOX, CB

4XY-88182-01-00

Unavailable

13

COVER 1

4XY-8818B-00-00

Unavailable

14

COVER 2

4XY-8818C-00-00

Unavailable

15

GASKET, CB

4XY-8818E-00-00

Unavailable

16

SEAT 1

4XY-8818D-00-00

Unavailable

17

BOLT, HEXAGON

97017-06025-00

Unavailable

18

WASHER, PLATE

90201-06380-00

Unavailable

19

GROMMET(1UF)

90480-14450-00

Unavailable

20

COLLAR

90387-07020-00

Unavailable

21

BAND, BATTERY

4J2-82131-01-00

Unavailable

22

SPEAKER 1

4XY-88161-00-00

Unavailable

23

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

24

COLLAR (3L6)

90387-06737-00

Unavailable

25

GROMMET (1E5)

90480-13163-00

Unavailable

26

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

27

GRILLE, SPEAKER 1

4XY-88163-00-P0

Unavailable

27

GRILLE, SPEAKER 1

4XY-88163-00-P1

Unavailable

28

GRILLE, SPEAKER 2

4XY-88173-00-P0

Unavailable

28

GRILLE, SPEAKER 2

4XY-88173-00-P1

Unavailable

29

BOLT

4XY-28333-00-00

Unavailable

30

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

31

WASHER(JF2)

92907-04600-00

Unavailable

32

FILTER, NOISE

4XY-88188-00-00

Unavailable

33

POLE, ANTENNA

4XY-88141-00-00

Unavailable

34

CABLE

4XY-88146-00-00

Unavailable

35

TUBE

4XY-82139-00-00

Unavailable

36

POLE, CB ANTENNA

4XY-88143-00-00

Unavailable

37

EXTENSION, CORD

4XY-88147-00-00

Unavailable

38

BRACKET, ANTENNA

4XY-88144-01-00

Unavailable

39

BOLT, FLANGE(2UJ)

95024-06012-00

$4.41

40

COVER

4XY-88145-00-00

Unavailable

41

SPACER

4XY-8814A-00-00

Unavailable

42

DAMPER 2

4XY-8814C-00-00

Unavailable

43

CLAMP(4GY)

90464-05188-00

Unavailable

44

CLAMP(4FM)

90464-15195-00

Unavailable

45

REMOTE CONTROL 1

4XY-88168-00-00

Unavailable

46

CORD, HEAD SET 1

4XY-88196-00-00

Unavailable

47

HOLDER, CONNECTOR

4XY-88195-01-00

Unavailable

48

HOLDER, CONNECTOR

4XY-88195-01-00

Unavailable

49

CORD, CB

4XY-88186-01-00

Unavailable

50

CONDENSER, SMOOTHING

1NL-81965-01-00

Unavailable

51

CORD, EXTENSION

4XY-88192-01-00

Unavailable

52

EMBLEM 3D

4XY-2839B-00-00

Unavailable
