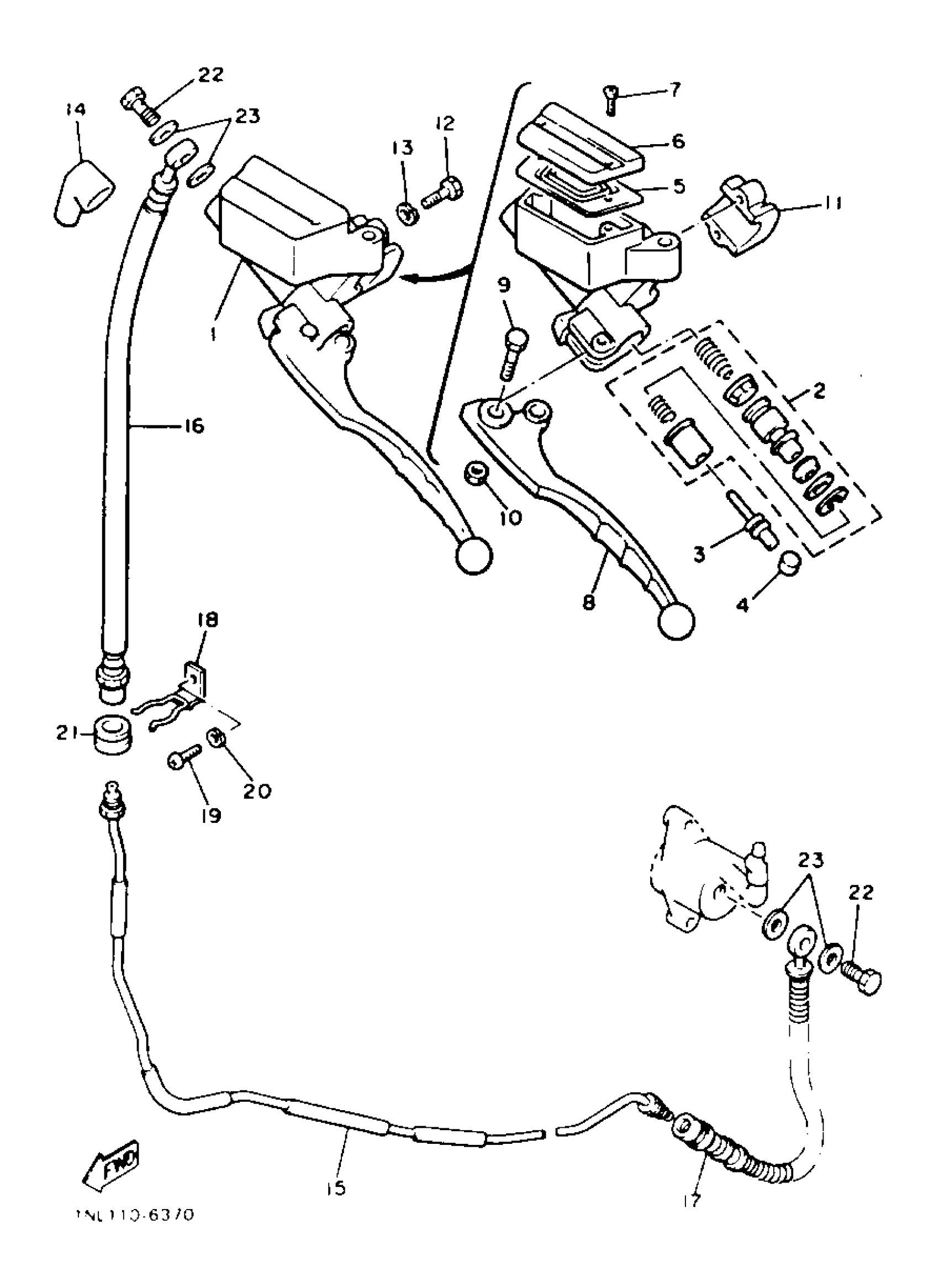

Yamaha XVZ13TC (VENTURE CA) 1987 FRONT MASTER CYLINDER 2 Diagram

#

Description
Price

1

MASTER CYLINDER ASS''Y (CLUTCH) (26H-26450-01)

26H-26450-20-00

Unavailable

2

CYLINDER KIT, MASTER (CLUTCH)

2KW-W0099-00-00

Unavailable

3

PUSH ROD

26H-26464-00-00

$22.35

4

BUSH

3GM-26455-00-00

$17.96

5

DIAPHRAGM, RESERVOIR

26H-25854-00-00

Unavailable

6

. CAP, RESERVOIR

26H-26452-00-00

Unavailable

7

SCREW, FLAT

98707-04012-00

$1.49

8

. LEVER 1 (26H-83912-00)

26H-83912-10-00

Unavailable

9

BOLT (4L0)

90109-06577-00

$4.89

10

NUT, SELF-LOCKING

95617-06100-00

$2.29

11

PUSH ROD

26H-26464-00-00

$22.35

12

BOLT, HEXAGON

97017-06025-00

$2.84

13

WASHER, SPRING

92907-06100-00

$1.49

14

BOOT, MASTER CYLINDER

306-25862-00-00

$42.06

15

PIPE

26H-26471-02-00

Unavailable

16

HOSE, clutch 1

26H-26472-00-00

Unavailable

17

HOSE, clutch 2

26H-26473-00-00

Unavailable

18

HOLDER

26-H2647-50-10

Unavailable

19

SCREW, PAN

98517-06012-00

Unavailable

20

WASHER, SPRING

92907-06100-00

$1.49

21

PROTECTOR, BRAKE HOSE

341-25881-00-00

Unavailable

22

BOLT, UNION(3GM)

90401-10159-00

Unavailable

23

WASHER, PLATE(481)

90201-10118-00

Unavailable
