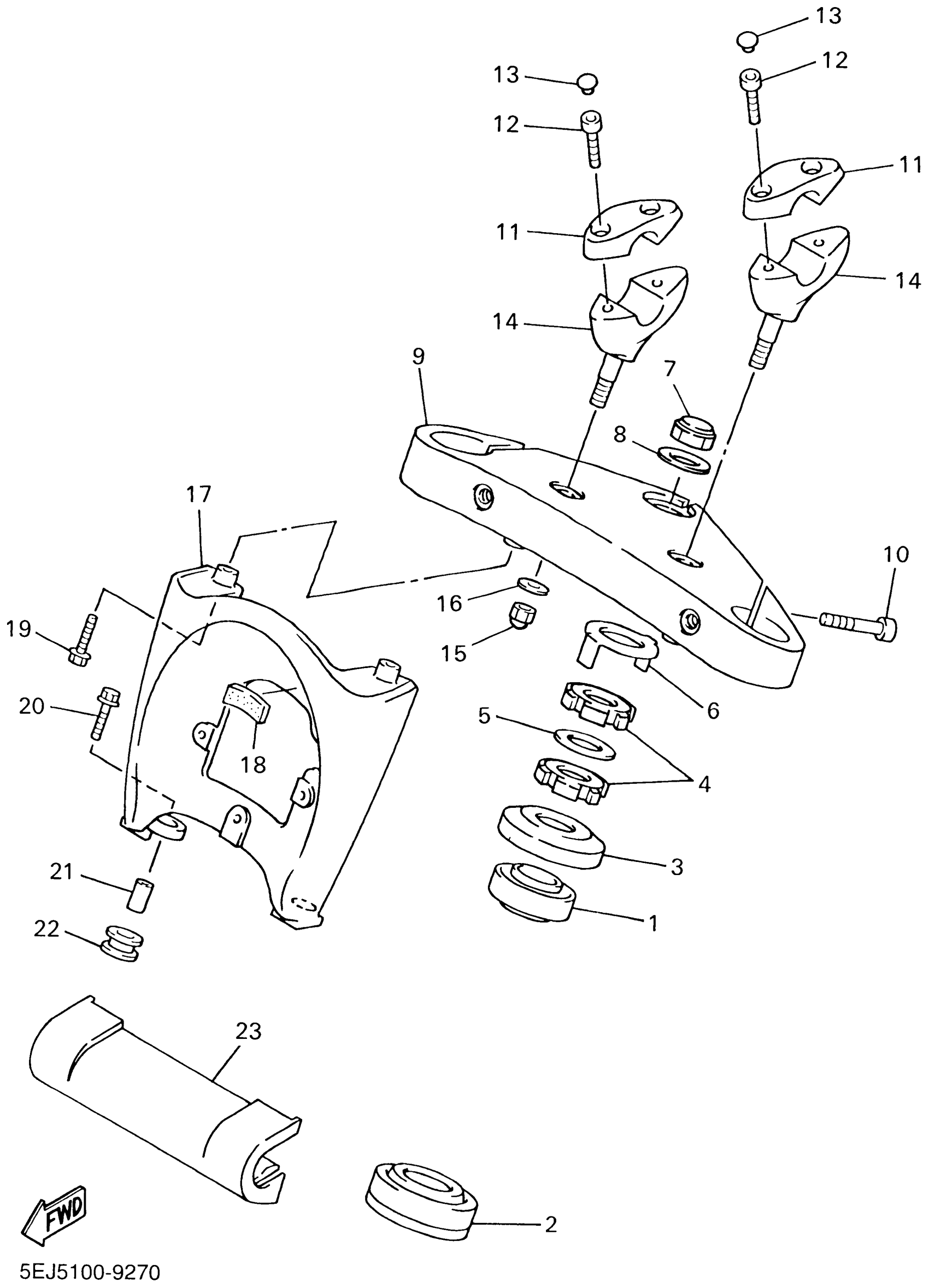

Yamaha XVZ13LTLC (ROYAL STAR TOUR DELUXE CA) 4YEA 1999 STEERING Diagram

#

Description
Price

1

BRG, TAPERED ROLLER (409)

93332-00001-00

$58.99

2

BRG,CYL-CAL ROLLER 131G KY

93332-00008-00

$67.99

3

COVER, BALL RACE 2

1W1-23416-00-00

Unavailable

4

NUT

90179-25004-00

$24.99

5

WASHER, PLATE (26H)

90202-26142-00

$9.49

6

WASHER, SPECIAL

26H-23418-01-00

$14.49

7

NUT, CROWN(4FM)

90176-22081-00

$34.99

8

WASHER, PLATE

90201-22018-00

$5.60

9

CROWN, HANDLE

4NK-23435-00-00

Unavailable

10

BOLT, SOCKET

91314-06030-00

$8.49

11

HOLDER, HANDLE UPPER

4NK-23441-00-00

Unavailable

12

BOLT,SOCKET

91314-08025-00

$8.49

13

PLUG(42X)

90338-08163-00

$3.45

14

HOLDER, HANDLE LOWER

4NK-23442-00-00

Unavailable

15

NUT, CROWN(4TR)

90176-12052-00

$12.49

16

WASHER, PLATE

90201-12043-00

Unavailable

17

COVER, CROWN

4NK-23437-00-00

Unavailable

18

DAMPER, PLATE

90520-07001-00

Unavailable

19

BOLT, FLANGE

95814-06025-00

Unavailable

20

BOLT, FLANGE

95814-06035-00

Unavailable

21

. COLLAR

90387-06605-00

Unavailable

22

GROMMET

90480-16284-00

Unavailable

23

COVER, OUTER 1

4NK-23122-01-00

Unavailable
