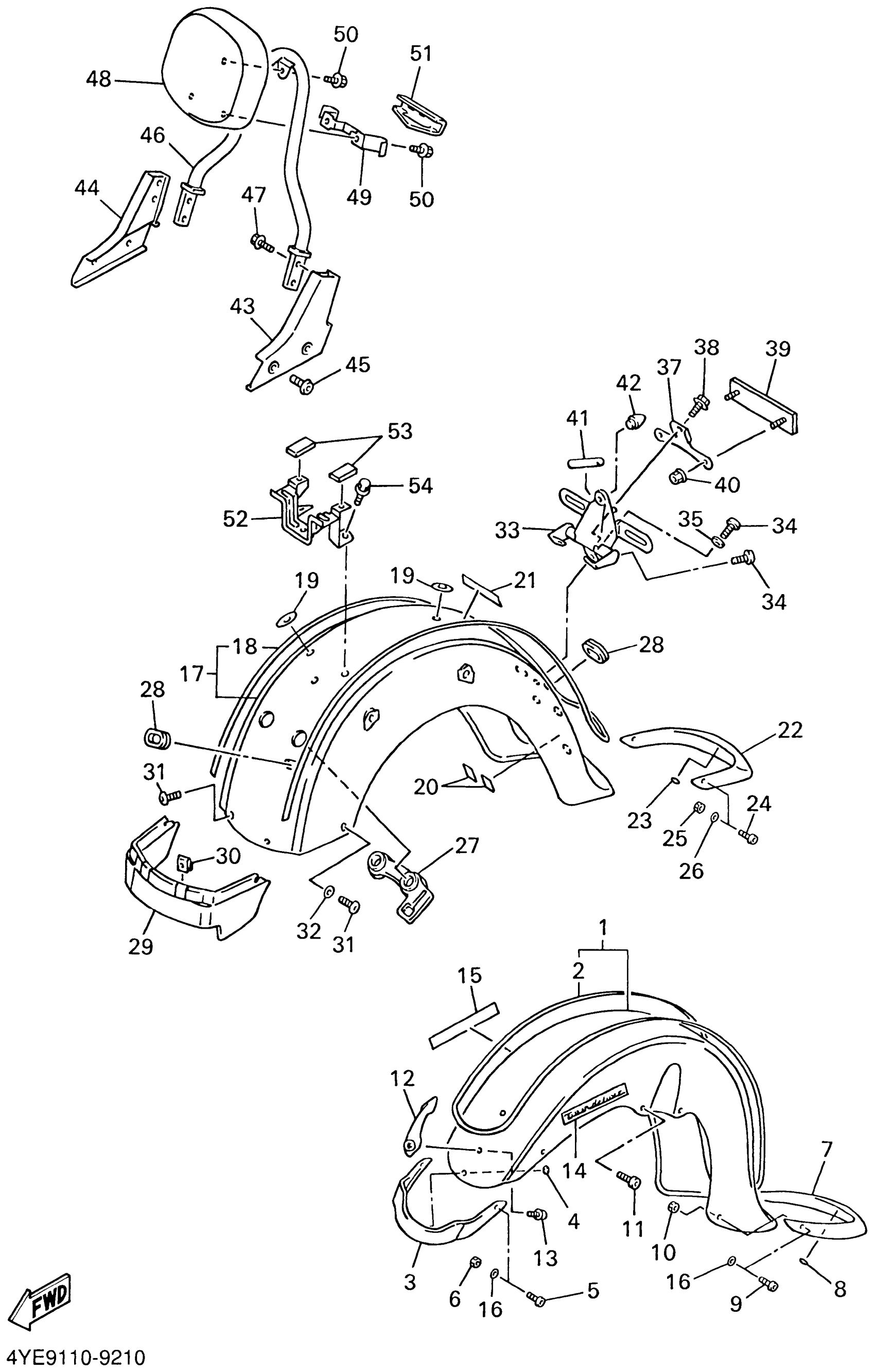

Yamaha XVZ13LTLC (ROYAL STAR TOUR DELUXE CA) 4YEA 1999 FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSEMBLY (BRIGHT CHERRY RED) (CARMINE RED)

4NL-Y2150-K0-0Y

Unavailable

2

. GRAPHIC SET, FRONT FENDER (BRIGHT CHERRY RED)

4NK-21570-50-00

Unavailable

3

FLAP 2

4NL-21561-11-00

Unavailable

4

NUT, SPRING(1FK)

90183-06008-00

$8.49

5

BOLT, BUTTON HEAD(4NK)

92014-05010-00

$8.49

6

NUT, HEXAGON (663)

95380-05600-00

$8.49

7

FLAP, FRONT FENDER

4NL-21521-10-00

Unavailable

8

NUT, SPRING(1FK)

90183-06008-00

$8.49

9

BOLT, BUTTON HEAD(4NK)

92014-05010-00

$8.49

10

NUT, HEXAGON (663)

95380-05600-00

$8.49

11

BOLT,SOCKET

91314-08025-00

$8.49

12

MASCOT

4NL-21577-00-00

Unavailable

13

SCREW, PAN

98517-06012-00

$3.78

14

EMBLEM 3

4YE-2152A-00-00

Unavailable

15

EMBLEM

4YE-21578-00-00

Unavailable

16

SEAL 1

4NL-21575-10-00

Unavailable

17

REAR FENDER C0MP. (BRIGHT CHERRY RED) (CARMINE RED)

4YE-Y2161-40-2X

Unavailable

18

. GRAPHIC SET, REAR FENDER (BRIGHT CHERRY RED)

4NK-2165A-50-00

Unavailable

19

SEAL 2

4NK-21735-00-00

Unavailable

20

PROTECTOR

3MA-27491-00-00

Unavailable

21

EMBLEM, YAMAHA

99247-00080-00

Unavailable

22

FLAP

4NL-21621-10-00

Unavailable

23

NUT, SPRING(1FK)

90183-06008-00

$8.49

24

BOLT, BUTTON HEAD(4NK)

92014-05010-00

$8.49

25

NUT, HEXAGON (663)

95380-05600-00

$8.49

26

SEAL 1

4NL-21575-10-00

Unavailable

27

DAMPER

4NK-21649-00-00

Unavailable

28

GROMMET (438)

90480-15061-00

Unavailable

29

FLAP (BRIGHT CHERRY RED)

4NK-21621-00-E9

Unavailable

30

NUT, SPRING(4ES)

90183-06069-00

Unavailable

31

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

32

WASHER, PLATE

90202-06170-00

Unavailable

33

STAY, 9

4YE-2317W-00-00

Unavailable

34

BOLT, BUTTON HEAD(3JP)

92014-06012-00

Unavailable

35

WASHER, PLATE 6261117600

90201-06043-00

Unavailable

37

BRACKET, REFLECTOR

4NK-21641-00-00

Unavailable

38

BOLT, FLANGE(2UJ)

95024-06010-00

Unavailable

39

REAR REFLECTOR ASSY

1FK-85130-00-00

Unavailable

40

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

41

HOSE (583)

90446-07114-00

Unavailable

42

DAMPER 2

5A8-21639-00-00

Unavailable

43

GRIP 1

4YE-F164A-00-00

Unavailable

44

GRIP 2

4YE-F164E-00-00

Unavailable

45

BOLT, BUTTON HEAD

92014-08014-00

Unavailable

46

STAY 1

4NL-F164F-10-00

Unavailable

47

BOLT, FLANGE (3JPE)

95024-08016-00

Unavailable

48

BACK REST ASSY

4YE-2840F-01-00

Unavailable

49

STAY 2

4NL-F164G-00-00

Unavailable

50

BOLT, FLANGE(2UJ)

95024-06010-00

Unavailable

51

EMBLEM

5GA-24786-01-00

Unavailable

52

BRACKET, SEAT LEVER 1

4NK-2475H-00-00

Unavailable

53

DAMPER, SEAT

509-24724-00-00

Unavailable

54

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable
