Description

Price

1

COVER, SIDE 1 (YAMAHA BLACK) (MILKY BROWN)

4NK-21711-00-33

Unavailable

1

COVER, SIDE 1 (CAMELLIA GREEN)

4NK-21711-00-TK

Unavailable

2

DAMPER 2

51Y-21639-00-00

$6.99

3

SCREW(3XV)

90149-06298-00

$5.60

4

WASHER, PLATE

90202-06170-00

Unavailable

5

GROMMET(4FU)

90480-13567-00

$4.99

6

COVER, SIDE 2 (YAMAHA BLACK) (MILKY BROWN)

4NK-21721-00-33

Unavailable

6

COVER, SIDE 2 (CAMELLIA GREEN)

4NK-21721-00-TK

Unavailable

7

DAMPER 2

51Y-21639-00-00

$6.99

8

SCREW(3XV)

90149-06298-00

$5.60

9

WASHER, PLATE

90202-06170-00

Unavailable

10

GROMMET(4FU)

90480-13567-00

$4.99

11

SEAL,2

1JK-21735-00-00

$9.99

12

COVER 9

4NK-2117X-01-33

Unavailable

12

COVER 9 (CAMELLIA GREEN)

4NK-2117X-00-TK

Unavailable

13

PROTECTOR

52W-2117G-00-00

Unavailable

14

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

Unavailable

15

SCREW(3XV)

90149-06298-00

$5.60

16

WASHER, PLATE

90202-06170-00

Unavailable

17

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

18

BOLT, HEXAGON

97017-06020-00

Unavailable

19

COLLAR(1LJ)

90387-067N5-00

Unavailable

20

GROMMET

90480-13014-00

Unavailable

21

BOX, BATTERY

4NK-2177G-00-00

Unavailable

22

GROMMET(42X)

90480-20384-00

Unavailable

23

GROMMET

90480-13014-00

Unavailable

24

COLLAR(1LJ)

90387-067N5-00

Unavailable

25

BOLT, WITH WASHER (30X)

90119-06096-00

Unavailable

26

TANK, RECOVERY

4NK-21871-00-00

Unavailable

27

BOLT, WITH WASHER

90119-06242-00

Unavailable

28

GROMMET(4FU)

90480-13567-00

$4.99

29

CAP

1B7-21875-00-00

Unavailable

30

ELBOW

26H-21828-00-00

Unavailable

31

CLIP(72X)

90467-11M08-00

Unavailable

32

HOSE (L545)

90445-09361-00

Unavailable

33

CLIP

90467-090A2-00

Unavailable

34

PLATE, BRIDGE

4NK-21243-01-00

Unavailable

35

BOLT, FLANGE

95817-06010-00

Unavailable

36

BRACKET, FUEL PUMP

3CV-24491-10-00

Unavailable

37

BOLT, FLANGE

95817-06016-00

Unavailable

38

COLLAR(42G)

90387-062L2-00

Unavailable

39

GROMMET (1E5)

90480-13163-00

Unavailable

40

SCREW, BINDING

98907-05010-00

Unavailable

41

COVER, SIDE 3

4YE-21731-00-00

Unavailable

42

PLUG(1FN)

90338-23172-00

Unavailable

43

SCREW, W/WASHER (4L0)

90159-06060-00

Unavailable

44

GROMMET(4FU)

90480-13567-00

$4.99

45

GROMMET (1H3)

90480-28191-00

Unavailable

46

COVER, SIDE 4

4NK-21741-00-00

Unavailable

47

PLUG(1FN)

90338-23172-00

Unavailable

48

SCREW, W/WASHER (4L0)

90159-06060-00

Unavailable

49

GROMMET(4FU)

90480-13567-00

$4.99

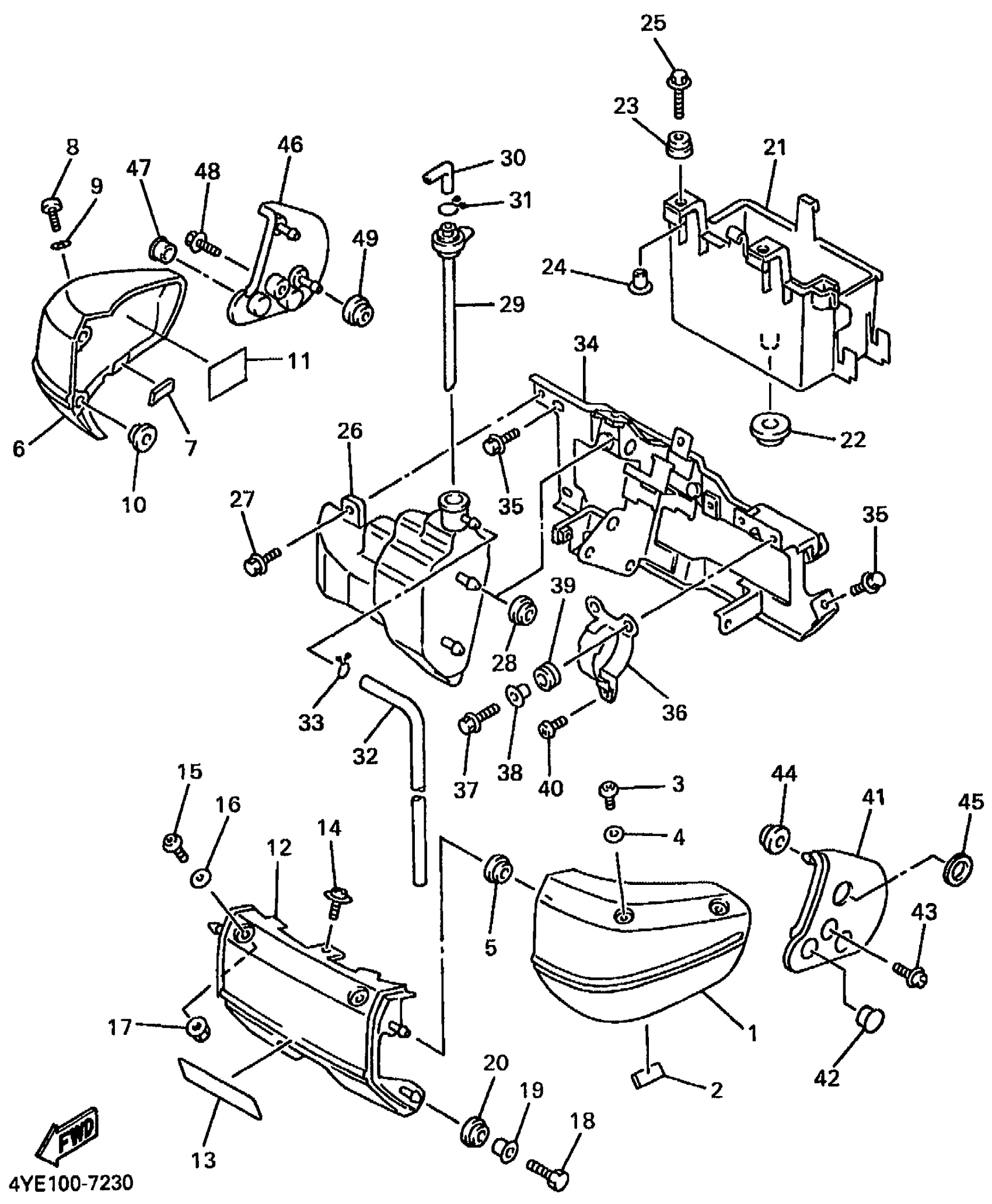

Yamaha XVZ13LTKC (ROYAL STAR TOUR DELUXE CA) 4YE6 1998 SIDE COVER Diagram

COVER, SIDE 1 (YAMAHA BLACK) (MILKY BROWN)

COVER, SIDE 1 (CAMELLIA GREEN)

DAMPER 2

SCREW(3XV)

WASHER, PLATE

GROMMET(4FU)

COVER, SIDE 2 (YAMAHA BLACK) (MILKY BROWN)

COVER, SIDE 2 (CAMELLIA GREEN)

DAMPER 2

SCREW(3XV)

WASHER, PLATE

GROMMET(4FU)

SEAL,2

COVER 9

COVER 9 (CAMELLIA GREEN)

PROTECTOR

SCREW, PANHEAD W/WASHER (22F)

SCREW(3XV)

WASHER, PLATE

NUT, FLANGE(4MV)

BOLT, HEXAGON

COLLAR(1LJ)

GROMMET

BOX, BATTERY

GROMMET(42X)

GROMMET

COLLAR(1LJ)

BOLT, WITH WASHER (30X)

TANK, RECOVERY

BOLT, WITH WASHER

GROMMET(4FU)

CAP

ELBOW

CLIP(72X)

HOSE (L545)

CLIP

PLATE, BRIDGE

BOLT, FLANGE

BRACKET, FUEL PUMP

BOLT, FLANGE

COLLAR(42G)

GROMMET (1E5)

SCREW, BINDING

COVER, SIDE 3

PLUG(1FN)

SCREW, W/WASHER (4L0)

GROMMET(4FU)

GROMMET (1H3)

COVER, SIDE 4

PLUG(1FN)

SCREW, W/WASHER (4L0)

GROMMET(4FU)
