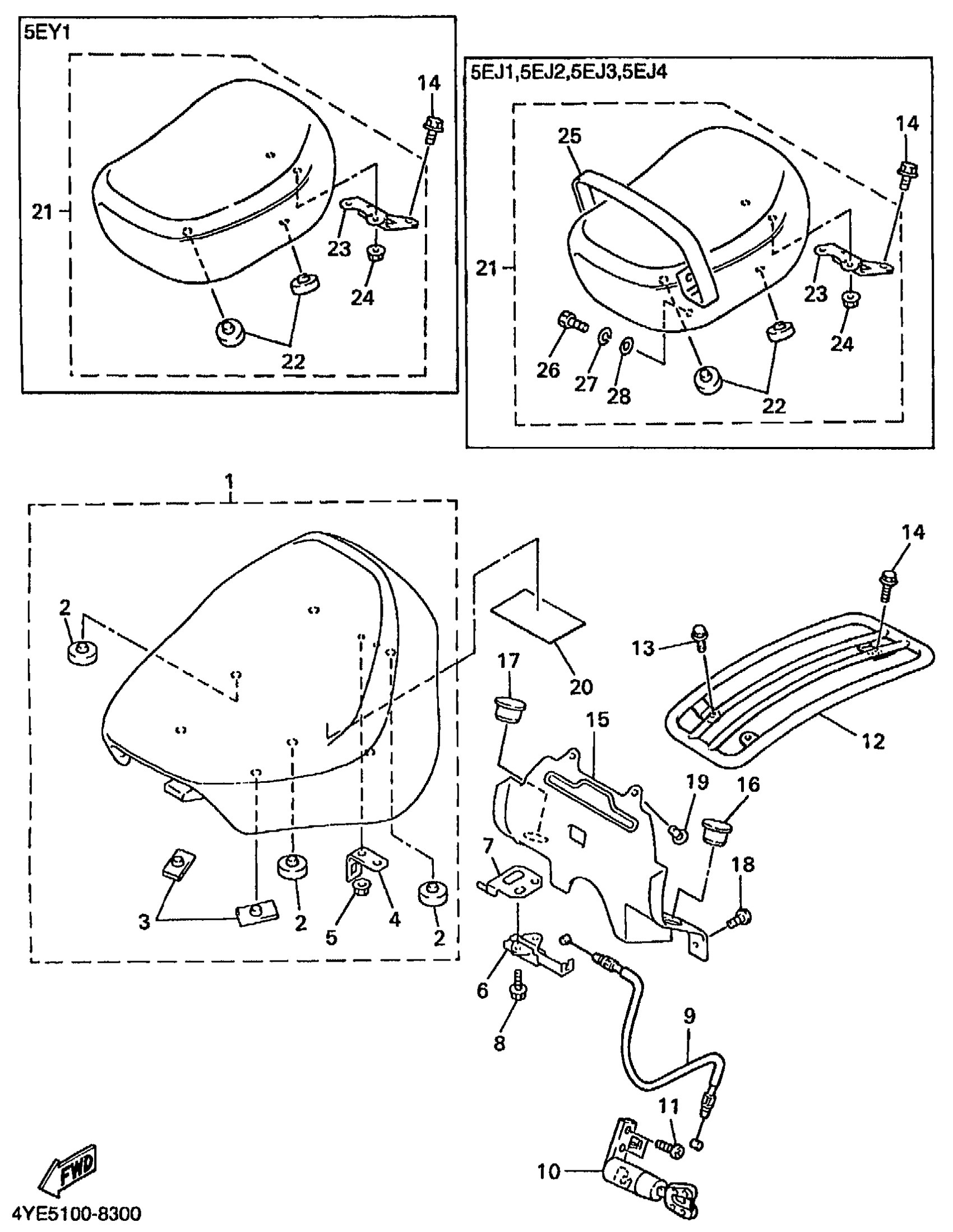

Yamaha XVZ13LTKC (ROYAL STAR TOUR DELUXE CA) 4YE6 1998 SEAT Diagram
#
Description
Price
1
SINGLE SEAT ASSY
4YE-24710-00-00
Unavailable
6
SEAT LOCK ASSY
50W-W247E-00-00
Unavailable
7
PLATE
4NK-24792-00-00
Unavailable
8
BOLT, FLANGE
95817-06014-00
Unavailable
9
CABLE, SEAT LOCK
4YE-2478E-00-00
Unavailable
10
SEAT LOCK ASSY
4YE-W2470-00-00
Unavailable
12
CARRIER ASSEMBLY
4YE-24810-00-00
Unavailable
16
PLUG(1FN)
90338-23172-00
Unavailable
17
PLUG
90338-36258-00
Unavailable
18
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
19
RIVET
90269-06001-00
Unavailable
20
PLATE, EPA 2 (CALIFORNIA)
4YE-2179R-10-00
Unavailable
20
PLATE, EPA 1 (NON CALIFORNIA)
4YE-2179V-10-00
Unavailable
21
TANDEM SEAT ASSEMBLY
5EJ-24750-00-00
Unavailable
23
STAY, SEAT
4NK-2471A-00-00
Unavailable
25
. BAND, SEAT
5EJ-24734-00-00
Unavailable
26
BOLT, HEXAGON
97017-06020-00
Unavailable
27
WASHER, SPRING
92907-06100-00
Unavailable
28
WASHER, PLATE
90201-06380-00
Unavailable
