- XVZ13LTKC (ROYAL STAR TOUR DELUXE CA) 4YE6 1998
SADDLEBAG 1

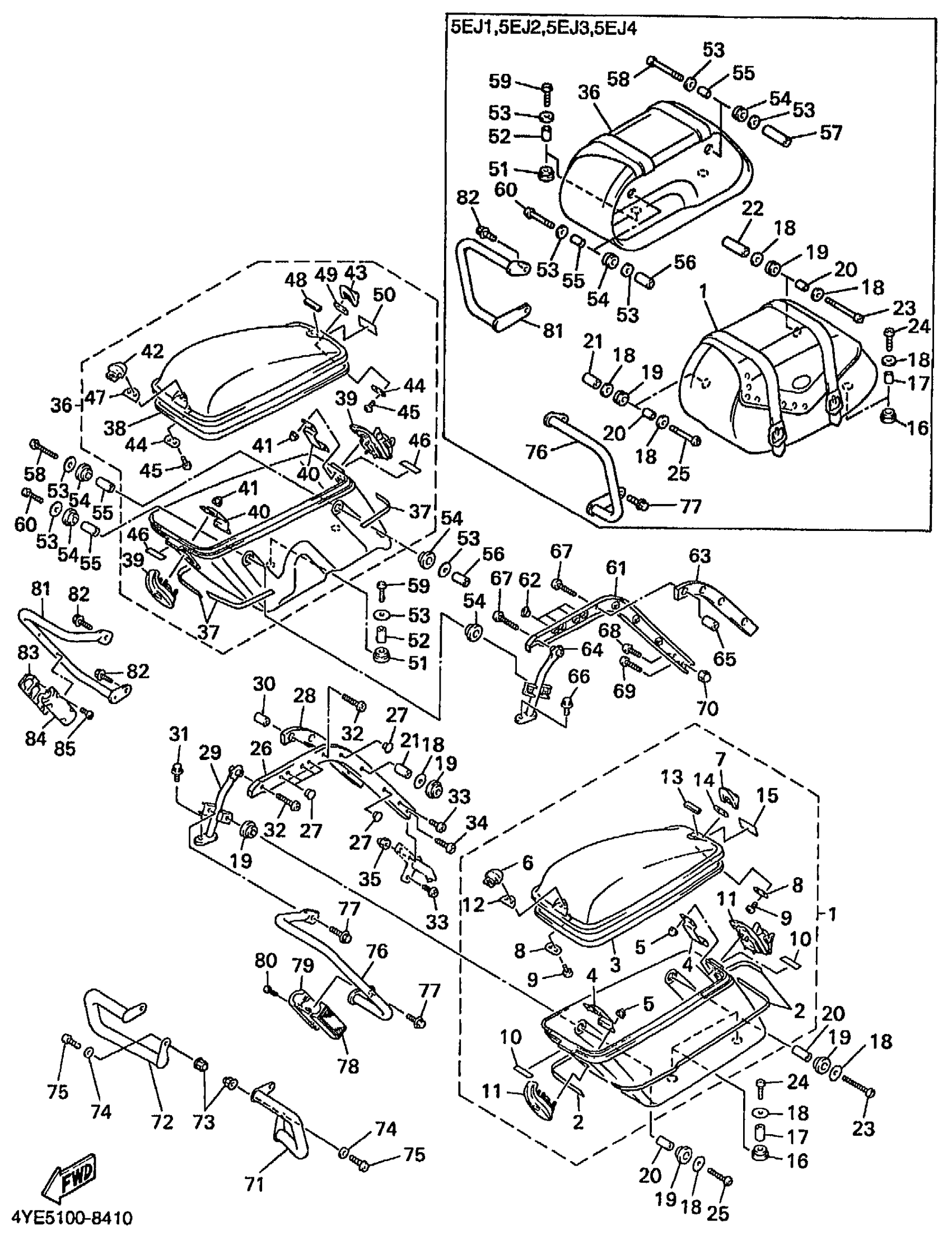

Yamaha XVZ13LTKC (ROYAL STAR TOUR DELUXE CA) 4YE6 1998 SADDLEBAG 1 Diagram
#
1
SADDLEBAG COMP. 1
4YE-F8430-40-00
Unavailable
1
SADDLEBAG COMP. 1
4YE-F8430-60-00
Unavailable
1
SADDLEBAG COMP. 1
5EJ-F8430-00-00
Unavailable
2
. SADDLEBAG GRAPHIC SET
4YE-2840G-20-00
Unavailable
2
. SADDLEBAG GRAPHIC SET
4YE-2840G-30-00
Unavailable
3
. SEAL 1
4YE-28428-00-00
Unavailable
4
. COVER LOCK ASSEMBLY 2
1NL-28493-00-00
Unavailable
6
. HOOK
4YE-28488-00-00
Unavailable
7
. HOOK 2
4YE-28498-00-00
Unavailable
8
. PLATE 2
4YE-28487-00-00
Unavailable
10
SEAL 2
2GH-21735-00-00
Unavailable
11
. LOCK ASSEMBLY 2
4YE-28490-00-00
Unavailable
12
. PLATE, RUBBER 5
4YE-2845J-00-00
Unavailable
13
. PLATE, RUBBER 7
4YE-2847J-00-00
Unavailable
14
. PLATE, RUBBER 8
4YE-2848J-00-00
Unavailable
15
SEAL
1JK-21268-00-00
Unavailable
16
GROMMET 437147470000
90480-20132-00
Unavailable
17
COLLAR(88R)
90387-061Y7-00
Unavailable
18
WASHER PLATE 248217570000
90201-06074-00
Unavailable
18
WASHER (23T)
90201-065G8-00
Unavailable
19
GROMMET
90480-20338-00
Unavailable
19
GROMMET(1NL)
90480-20447-00
Unavailable
20
COLLAR (8A7)
90387-06518-00
Unavailable
20
COLLAR(82M)
90387-084R5-00
Unavailable
21
COLLAR
90387-0811N-00
Unavailable
22
COLLAR
90387-0813T-00
Unavailable
23
BOLT, SOCKET
91317-06070-00
Unavailable
23
BOLT, BUTTON HEAD
92017-06055-00
Unavailable
24
BOLT, BUTTON
92017-06030-00
Unavailable
25
BOLT, BUTTON
92017-06035-00
Unavailable
25
BOLT, BUTTON HEAD
92017-06050-00
Unavailable
26
FRAME, SADDLEBAG 1
4YE-F8473-00-00
Unavailable
27
PLUG
90338-07259-00
Unavailable
28
DAMPER 1
4YE-28415-00-00
Unavailable
29
STAY, FRONT GUARD 1
4YE-28413-02-00
Unavailable
30
COLLAR
90387-0811N-00
Unavailable
31
BOLT, FLANGE
95817-08014-00
Unavailable
32
BOLT, BUTTON HEAD(4TR)
92014-08040-00
Unavailable
33
BOLT, BUTTON
92014-08016-00
Unavailable
34
BOLT, BUTTON
92014-08020-00
Unavailable
35
NUT, CAP
95307-08800-00
Unavailable
36
SADDLEBAG, COMP
4YE-F8440-40-00
Unavailable
36
SADDLEBAG, COMP
4YE-F8440-60-00
Unavailable
36
SIDE BAG COMP.
5EJ-F8440-00-00
Unavailable
37
. SADDLEBAG GRAPHIC SET 2
4YE-2840J-20-00
Unavailable
37
. SADDLEBAG GRAPHIC SET 2
4YE-2840J-30-00
Unavailable
38
. SEAL 1
4YE-28428-00-00
Unavailable
39
. LOCK ASSEMBLY 2
4YE-28490-00-00
Unavailable
40
. COVER LOCK ASSEMBLY 2
1NL-28493-00-00
Unavailable
42
. HOOK
4YE-28488-00-00
Unavailable
43
. HOOK 2
4YE-28498-00-00
Unavailable
44
. PLATE 2
4YE-28487-00-00
Unavailable
46
SEAL 2
2GH-21735-00-00
Unavailable
47
. PLATE, RUBBER 5
4YE-2845J-00-00
Unavailable
48
. PLATE, RUBBER 7
4YE-2847J-00-00
Unavailable
49
. PLATE, RUBBER 8
4YE-2848J-00-00
Unavailable
50
SEAL
1JK-21268-00-00
Unavailable
51
GROMMET 437147470000
90480-20132-00
Unavailable
52
COLLAR(88R)
90387-061Y7-00
Unavailable
53
WASHER PLATE 248217570000
90201-06074-00
Unavailable
53
WASHER (23T)
90201-065G8-00
Unavailable
54
GROMMET
90480-20338-00
Unavailable
54
GROMMET(1NL)
90480-20447-00
Unavailable
55
COLLAR (8A7)
90387-06518-00
Unavailable
55
COLLAR(82M)
90387-084R5-00
Unavailable
56
COLLAR
90387-0811N-00
Unavailable
57
COLLAR
90387-0813T-00
Unavailable
58
BOLT, SOCKET
91317-06070-00
Unavailable
58
BOLT, BUTTON HEAD
92017-06055-00
Unavailable
59
BOLT, BUTTON
92017-06030-00
Unavailable
60
BOLT, BUTTON
92017-06035-00
Unavailable
60
BOLT, BUTTON HEAD
92017-06050-00
Unavailable
61
FRAME, SADDLEBAG 2
4YE-F8474-00-00
Unavailable
62
PLUG
90338-07259-00
Unavailable
63
DAMPER 2
4YE-28416-00-00
Unavailable
64
STAY, FRONT GUARD 2
4YE-28414-02-00
Unavailable
65
COLLAR
90387-0811N-00
Unavailable
66
BOLT, FLANGE
95817-08014-00
Unavailable
67
BOLT, BUTTON HEAD(4TR)
92014-08040-00
Unavailable
68
BOLT, BUTTON
92014-08016-00
Unavailable
69
BOLT, BUTTON
92014-08020-00
Unavailable
70
NUT, CAP
95307-08800-00
Unavailable
71
GUARD, ENGINE 1
4NL-F8418-00-00
Unavailable
72
GUARD, ENGINE 2
4NL-F8419-00-00
Unavailable
73
NUT, CROWN(2GG)
90176-10075-00
Unavailable
74
WASHER(6TA)
92907-10600-00
Unavailable
75
BOLT, BUTTON
92017-10030-00
Unavailable
76
GUARD, SADDLEBAG 1
4YE-F841K-00-00
Unavailable
76
GUARD, SADDLEBAG 1
5EJ-F841K-00-00
Unavailable
77
BOLT, FLANGE
95814-08016-00
Unavailable
77
BOLT, FLANGE(4HM)
95814-08020-00
Unavailable
78
REFLECTOR, REAR 1
4YE-85131-00-00
Unavailable
79
BRACKET, REFLECTOR 1
4YE-85132-00-00
Unavailable
80
SCREW, TAPPING(3NX)
97707-30514-00
Unavailable
81
GUARD, SADDLEBAG 2
4YE-F842K-00-00
Unavailable
81
GUARD, SADDLEBAG 2
5EJ-F842K-00-00
Unavailable
82
BOLT, FLANGE
95814-08016-00
Unavailable
82
BOLT, FLANGE(4HM)
95814-08020-00
Unavailable
83
REFLECTOR, REAR 1
4YE-85131-00-00
Unavailable
84
BRACKET, REFLECTOR 1
4YE-85132-00-00
Unavailable
85
SCREW, TAPPING(3NX)
97707-30514-00
Unavailable
