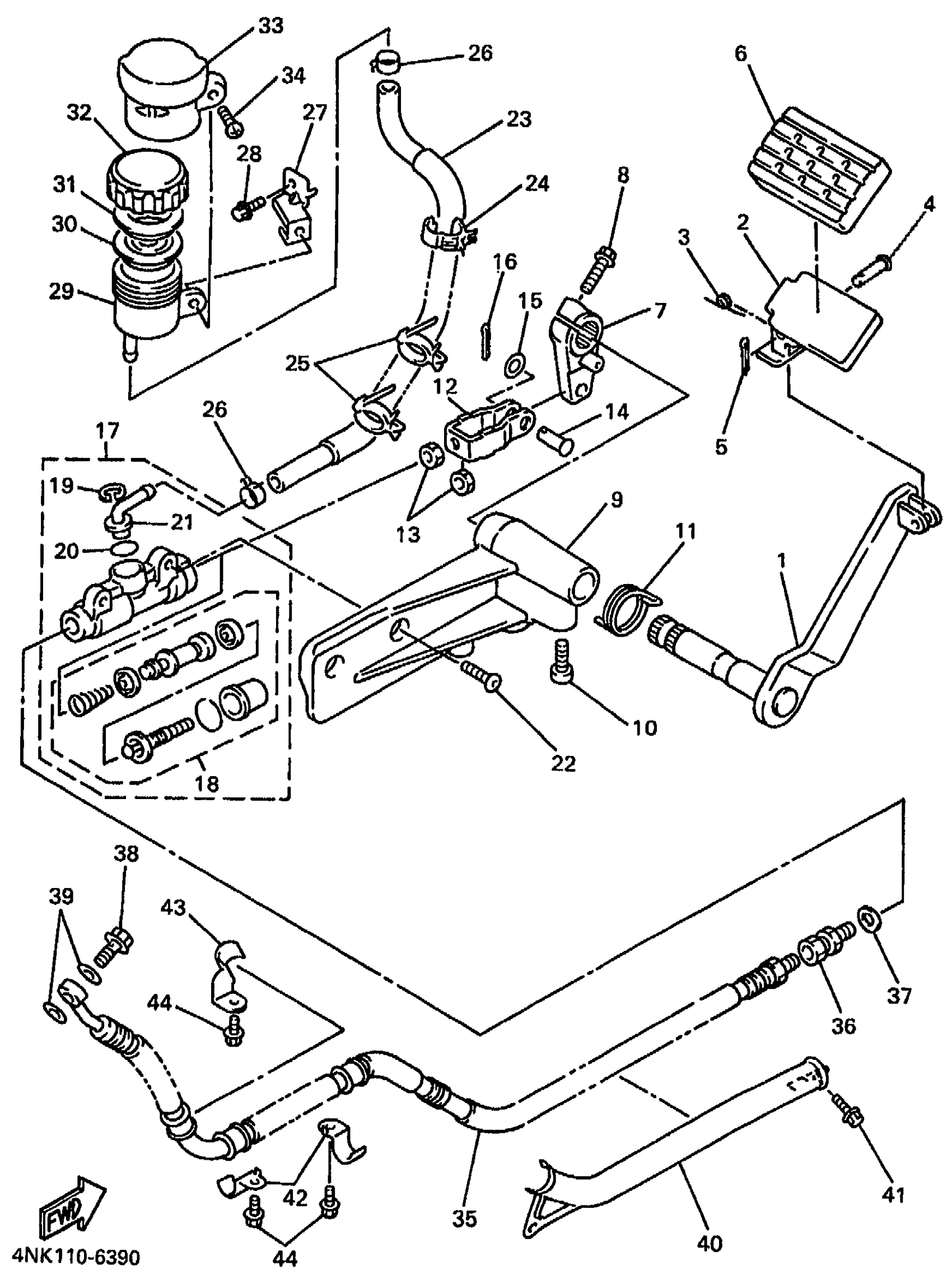

Yamaha XVZ13LTKC (ROYAL STAR TOUR DELUXE CA) 4YE6 1998 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

4NK-27211-00-00

Unavailable

2

PEDAL, BRAKE

4NK-27242-00-00

Unavailable

3

SPRING, TORSION

90508-18023-00

$7.49

4

PIN, COTTER (1W2)

91701-06022-00

$2.49

5

PIN, COTTER (648)

91490-20015-00

$2.20

6

CAP

4NK-27285-00-00

Unavailable

7

LEVER

4NK-27262-00-00

Unavailable

8

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

9

BRACKET 4

4NK-2741L-01-00

Unavailable

10

BOLT, SOCKET

91317-08014-00

$8.49

11

SPRING, SIDE STAND

4NK-27316-00-00

Unavailable

12

JOINT

4NK-27222-00-00

$32.99

13

NUT, HEXAGON SMALL

95317-08700-00

$9.49

14

PIN W/HOLE 307181180000

90240-08013-00

$8.49

15

WASHER, PLATE 1562722600

90201-08083-00

$9.49

16

PIN, COTTER

91490-16020-00

Unavailable

17

RR. MASTER CYLINDER ASSY.

4NK-2583V-00-00

Unavailable

18

CYLINDER KIT, MASTER

1FK-W0042-50-00

Unavailable

19

CIRCLIP

2VN-25866-00-00

Unavailable

20

O-RING (22U)

93210-15566-00

Unavailable

21

CONNECTER

3LD-2582A-00-00

Unavailable

22

BOLT, BUTTON

92014-08020-00

Unavailable

23

HOSE, RESERVOIR

4NK-25895-00-00

Unavailable

24

CLAMP(4GY)

90464-20191-00

Unavailable

25

CLAMP(4KJ)

90464-20213-00

Unavailable

26

CLIP (5K4)

90467-14057-00

Unavailable

27

BRACKET, RESERVE TANK

4NK-21228-00-00

Unavailable

28

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

29

TANK, RESERVOIR

31A-25894-01-00

Unavailable

30

DIAPHRAGM, RESERVER

360-25854-01-00

Unavailable

31

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

32

CAP, RESERVOIR

2KF-25852-50-00

Unavailable

33

COVER, RESERVOIR TANK

4NK-25888-00-00

Unavailable

34

BOLT, BUTTON

92014-06016-00

Unavailable

35

HOSE, BRAKE 4

4NK-2581J-02-00

Unavailable

36

JOINT

3LC-25885-00-00

Unavailable

37

WASHER, PLATE(481)

90201-10118-00

Unavailable

38

BOLT, UNION(3GM)

90401-10159-00

Unavailable

39

WASHER, PLATE(481)

90201-10118-00

Unavailable

40

HOLDER, BRAKE HOSE

4NK-25887-00-00

Unavailable

41

BOLT, FLANGE(2UJ)

95024-06012-00

Unavailable

42

HOLDER, BRAKE HOSE 2

3XV-25876-00-00

Unavailable

43

HOLDER, BRAKE HOSE 2

4NK-25876-00-00

Unavailable

44

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable
