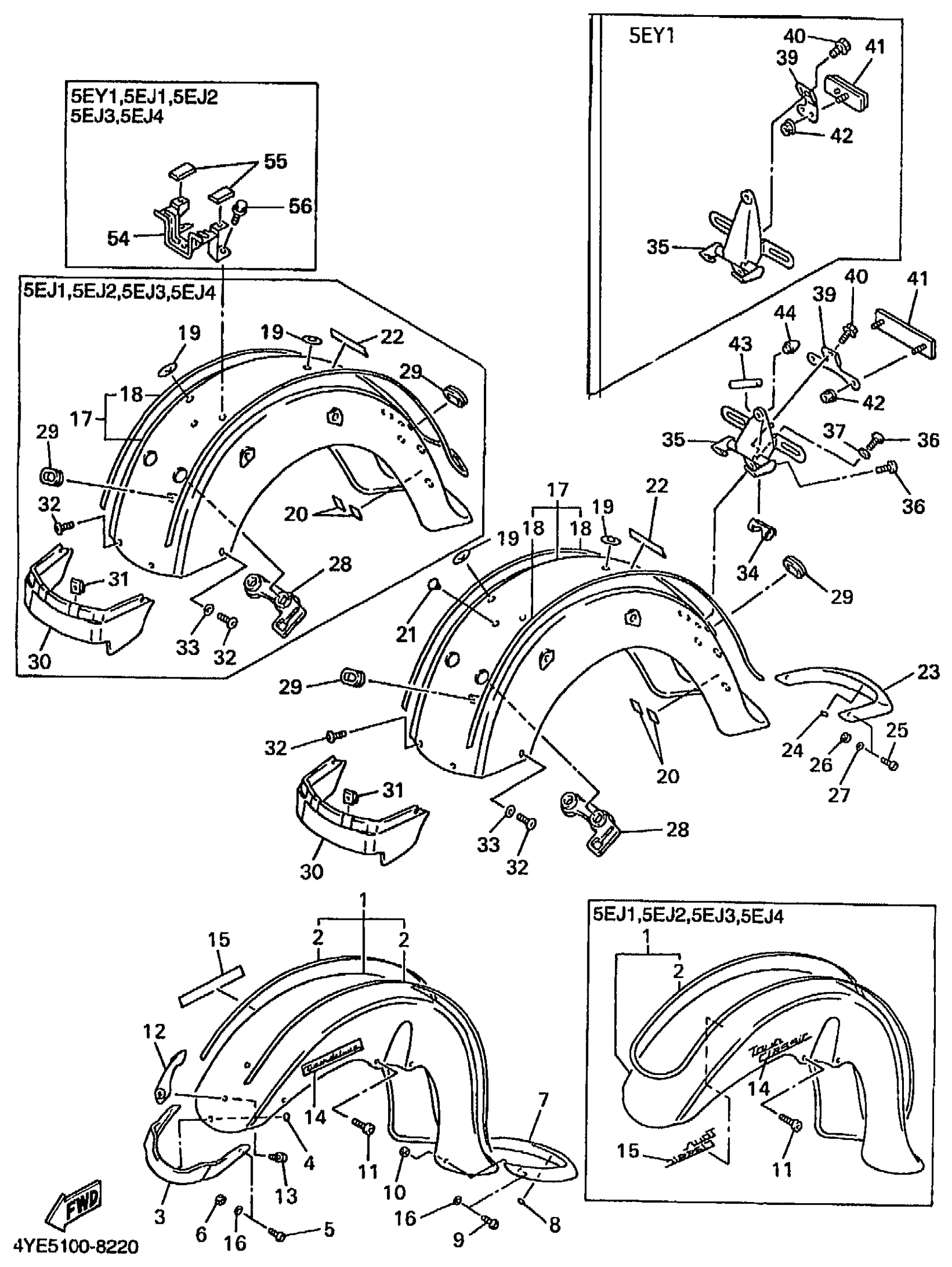

Yamaha XVZ13LTKC (ROYAL STAR TOUR DELUXE CA) 4YE6 1998 FENDER Diagram
#
1
FRONT FENDER ASSEMBLY (YAMAHA BLACK)
4NK-Y2150-C0-7X
Unavailable
1
FRONT FENDER ASSEMBLY (CAMELLIA GREEN)
4NK-Y2150-E0-8X
Unavailable
1
FRONT FENDER ASSEMBLY (YAMAHA BLACK)
4NL-Y2150-C0-33
Unavailable
1
FRONT FENDER ASSY
4NL-Y2150-E0-5X
Unavailable
2
. GRAPHIC SET, FRONT FENDER (STAR BLUE METALLIC)
4NK-21570-11-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (YAMAHA BLACK)
4NK-21570-80-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (YAMAHA BLACK)
4YE-21570-20-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (YAMAHA BLACK) (YELLOWISH GRAY SOLID 3)
4YE-21570-30-00
Unavailable
3
FLAP 2
4NL-21561-11-00
Unavailable
7
FLAP, FRONT FENDER
4NL-21521-10-00
Unavailable
11
BOLT,SOCKET
91314-08025-00
Unavailable
12
MASCOT
4NL-21577-00-00
Unavailable
13
SCREW, PAN
98517-06012-00
Unavailable
14
EMBLEM 3
4NL-2152A-10-00
Unavailable
14
EMBLEM 3
4YE-2152A-00-00
Unavailable
15
EMBLEM
4NL-21578-10-00
Unavailable
15
EMBLEM
4YE-21578-00-00
Unavailable
16
SEAL 1
4NL-21575-10-00
Unavailable
17
REAR FENDER COMP. (YAMAHA BLACK)
4YE-Y2161-20-33
Unavailable
17
REAR FENDER COMP. (YAMAHA BLACK) (YELLOWISH GRAY SOLID 3)
4YE-Y2161-30-1X
Unavailable
17
REAR FENDER COMP. (YAMAHA BLACK)
5EJ-Y2161-00-0X
Unavailable
17
REAR FENDER COMP. (CAMELLIA GREEN)
5EJ-Y2161-10-1X
Unavailable
18
. GRAPHIC SET, REAR FENDER (YAMAHA BLACK) (CERAMIC IVORY)
4YE-2165A-10-00
Unavailable
18
. GRAPHIC SET, REAR FENDER (YAMAHA BLACK)
4YE-2165A-20-00
Unavailable
18
. GRAPHIC SET, REAR FENDER
4YE-2165A-30-00
Unavailable
18
. GRAPHIC SET, REAR FENDER (YAMAHA BLACK)
4YE-2165A-80-00
Unavailable
19
SEAL 2
4NK-21735-00-00
Unavailable
20
PROTECTOR
3MA-27491-00-00
Unavailable
21
RIVET(81E)
90269-05055-00
Unavailable
22
EMBLEM, YAMAHA
99247-00080-00
Unavailable
23
FLAP
4NL-21621-10-00
Unavailable
27
SEAL 1
4NL-21575-10-00
Unavailable
28
DAMPER
4NK-21649-00-00
Unavailable
29
GROMMET (438)
90480-15061-00
Unavailable
30
FLAP (YAMAHA BLACK)
4NK-21621-00-1A
Unavailable
30
FLAP (YAMAHA BLACK) (MILKY BROWN)
4NK-21621-00-33
Unavailable
30
FLAP
4NK-21621-00-P1
Unavailable
30
FLAP (CERAMIC IVORY)
4NK-21621-00-TL
Unavailable
31
NUT, SPRING(4ES)
90183-06069-00
Unavailable
32
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
33
PLATE
4U5-2176E-00-00
Unavailable
34
PLUG, BLIND
4NK-83345-00-00
Unavailable
35
STAY, 9
4YE-2317W-00-00
Unavailable
36
BOLT, BUTTON HEAD(3JP)
92014-06012-00
Unavailable
37
WASHER, PLATE 6261117600
90201-06043-00
Unavailable
39
BRACKET, REFLECTOR
4NK-21641-00-00
Unavailable
40
BOLT, FLANGE(2UJ)
95024-06010-00
Unavailable
41
REAR REFLECTOR ASSY
1FK-85130-00-00
Unavailable
42
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
43
HOSE (583)
90446-07114-00
Unavailable
44
DAMPER 2
5A8-21639-00-00
Unavailable
54
BRACKET, SEAT LEVER 1
4NK-2475H-00-00
Unavailable
55
DAMPER, SEAT
509-24724-00-00
Unavailable
56
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
