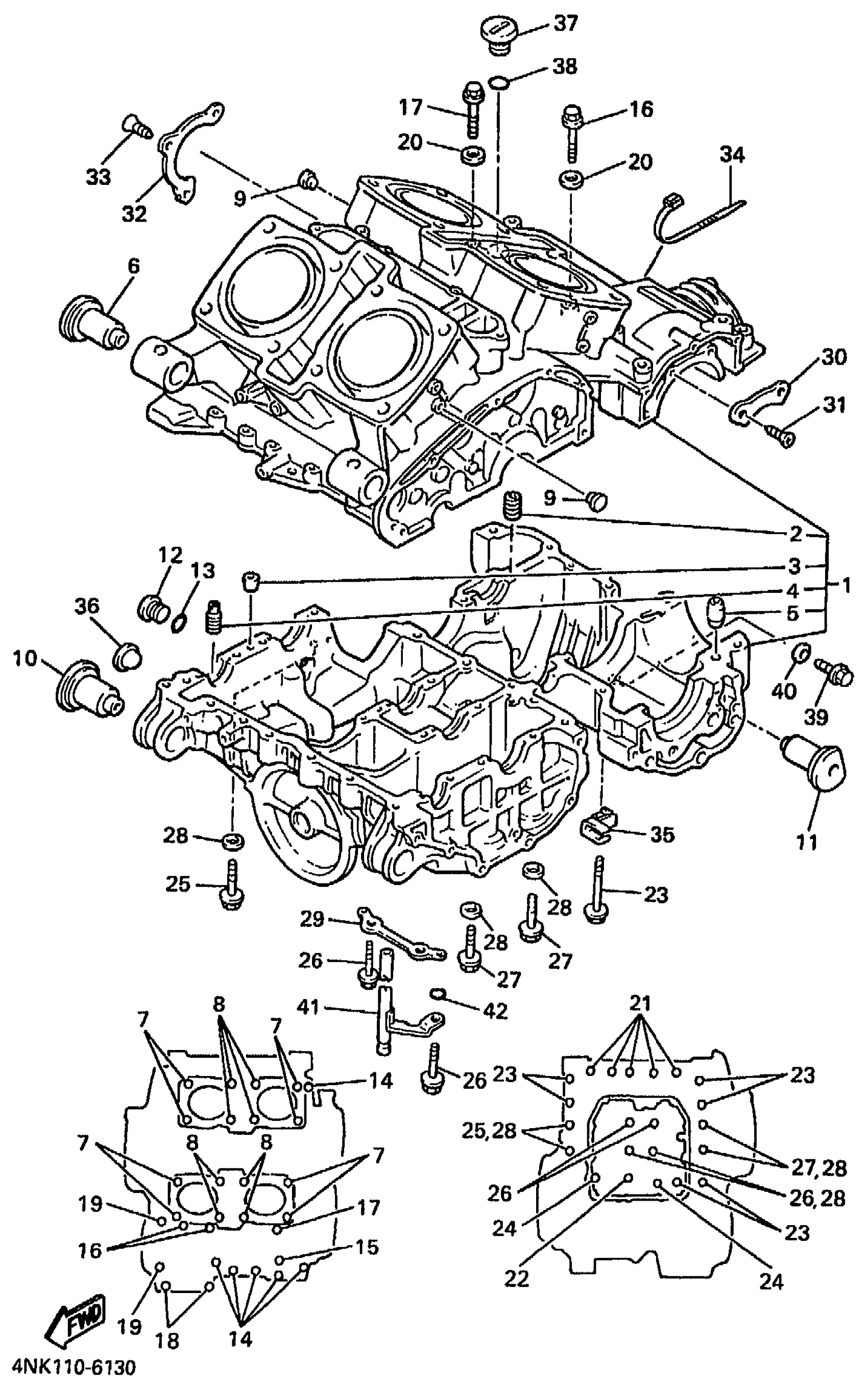

Yamaha XVZ13LTKC (ROYAL STAR TOUR DELUXE CA) 4YE6 1998 CRANKCASE Diagram
#
1
CRANKCASE ASSY
4NK-15100-00-00
Unavailable
3
NOZZLE 2
26H-15148-00-00
Unavailable
4
. NOZZLE 1
4NK-15138-00-00
Unavailable
11
DAMPER, ENGINE MOUNT 2
1AA-15326-00-00
Unavailable
16
BOLT, FLANGE(3JP)
95814-06090-00
Unavailable
17
BOLT, FLANGE
95817-06095-00
Unavailable
18
BOLT, FLANGE
95814-08045-00
Unavailable
19
BOLT, FLANGE
95814-08080-00
Unavailable
20
GASKET (4V2)
90430-06166-00
Unavailable
21
BOLT, FLANGE
95817-08050-00
Unavailable
22
BOLT, WASHER BASED
90105-084A1-00
Unavailable
23
BOLT, FLANGE
95814-08080-00
Unavailable
24
BOLT, FLANGE(8BT)
95817-08095-00
Unavailable
25
BOLT(3JP)
90109-103G0-00
Unavailable
26
BOLT, WASHER BASED (26H)
90105-10248-00
Unavailable
27
BOLT, WASHER BASED (26H)
90105-10249-00
Unavailable
28
WASHER PLATE 256111740000
90201-10131-00
Unavailable
29
PLATE
26H-15113-00-00
Unavailable
30
PLATE, BEARING COVER
26H-15381-00-00
Unavailable
31
SCREW
90149-08013-00
Unavailable
32
PLATE, BEARING COVER
26H-15383-00-00
Unavailable
33
SCREW, FLAT HEAD(4EM)
98707-06016-00
Unavailable
34
CLAMP(4FM)
90464-15195-00
Unavailable
35
CLAMP (26H)
90465-08233-00
Unavailable
36
GAUGE, LEVEL
2H7-15361-00-00
Unavailable
37
PLUG, OIL
4NK-15363-00-00
Unavailable
38
O-RING(1KT)
93210-27778-00
Unavailable
39
BOLT, FLANGE(4GY)
95817-12016-00
Unavailable
40
WASHER, PLATE
90201-12790-00
Unavailable
41
PIPE, BREATHER
26H-15373-00-00
Unavailable
42
O-RING(26H)
93210-06667-00
Unavailable
