SIDE COVER

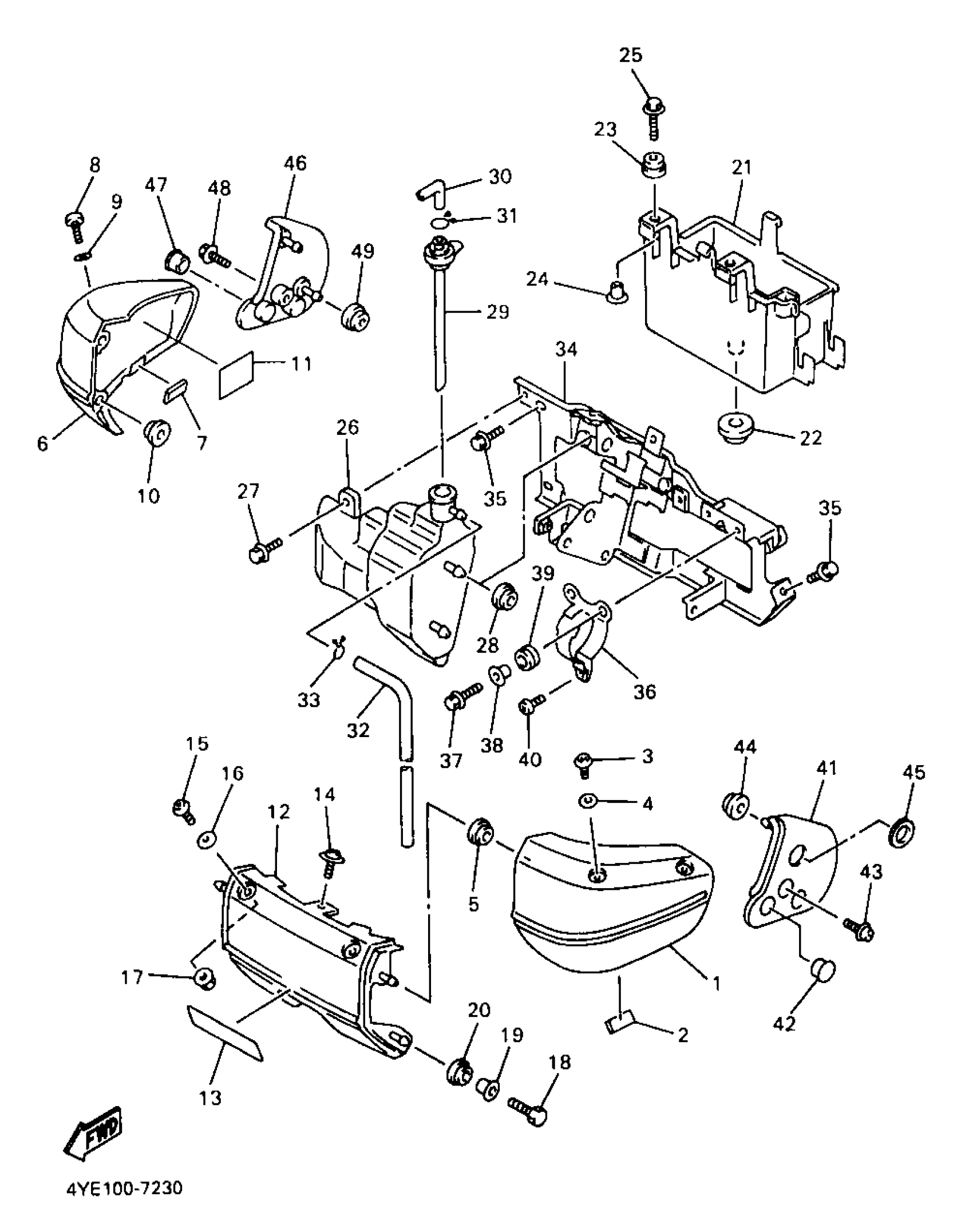

Yamaha XVZ13LTJC (ROYAL STAR TOUR DELUXE CA) 4YE2 1997 SIDE COVER Diagram
#
1
COVER, SIDE 1 (YAMAHA BLACK) (MILKY BROWN)
4NK-21711-00-33
Unavailable
4
WASHER, PLATE
90202-06170-00
Unavailable
6
COVER, SIDE 2 (YAMAHA BLACK) (MILKY BROWN)
4NK-21721-00-33
Unavailable
9
WASHER, PLATE
90202-06170-00
Unavailable
12
COVER 9
4NK-2117X-01-33
Unavailable
13
PROTECTOR
52W-2117G-00-00
Unavailable
16
WASHER, PLATE
90202-06170-00
Unavailable
17
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
18
BOLT, HEXAGON
97017-06020-00
Unavailable
19
COLLAR(1LJ)
90387-067N5-00
Unavailable
20
GROMMET
90480-13014-00
Unavailable
21
BOX, BATTERY
4NK-2177G-00-00
Unavailable
22
GROMMET(42X)
90480-20384-00
Unavailable
23
GROMMET
90480-13014-00
Unavailable
24
COLLAR(1LJ)
90387-067N5-00
Unavailable
25
BOLT, WITH WASHER (30X)
90119-06096-00
Unavailable
26
TANK, RECOVERY
4NK-21871-00-00
Unavailable
27
BOLT, WITH WASHER
90119-06242-00
Unavailable
29
CAP
1B7-21875-00-00
Unavailable
30
ELBOW
26H-21828-00-00
Unavailable
31
CLIP(72X)
90467-11M08-00
Unavailable
32
HOSE (L545)
90445-09361-00
Unavailable
33
CLIP
90467-090A2-00
Unavailable
34
PLATE, BRIDGE
4NK-21243-01-00
Unavailable
35
BOLT, FLANGE
95817-06010-00
Unavailable
36
BRACKET, FUEL PUMP
3CV-24491-10-00
Unavailable
37
BOLT, FLANGE
95817-06016-00
Unavailable
38
COLLAR(42G)
90387-062L2-00
Unavailable
39
GROMMET (1E5)
90480-13163-00
Unavailable
40
SCREW, BINDING
98907-05010-00
Unavailable
41
COVER, SIDE 3
4YE-21731-00-00
Unavailable
42
PLUG(1FN)
90338-23172-00
Unavailable
43
SCREW, W/WASHER (4L0)
90159-06060-00
Unavailable
45
GROMMET (1H3)
90480-28191-00
Unavailable
46
COVER, SIDE 4
4NK-21741-00-00
Unavailable
47
PLUG(1FN)
90338-23172-00
Unavailable
48
SCREW, W/WASHER (4L0)
90159-06060-00
Unavailable
