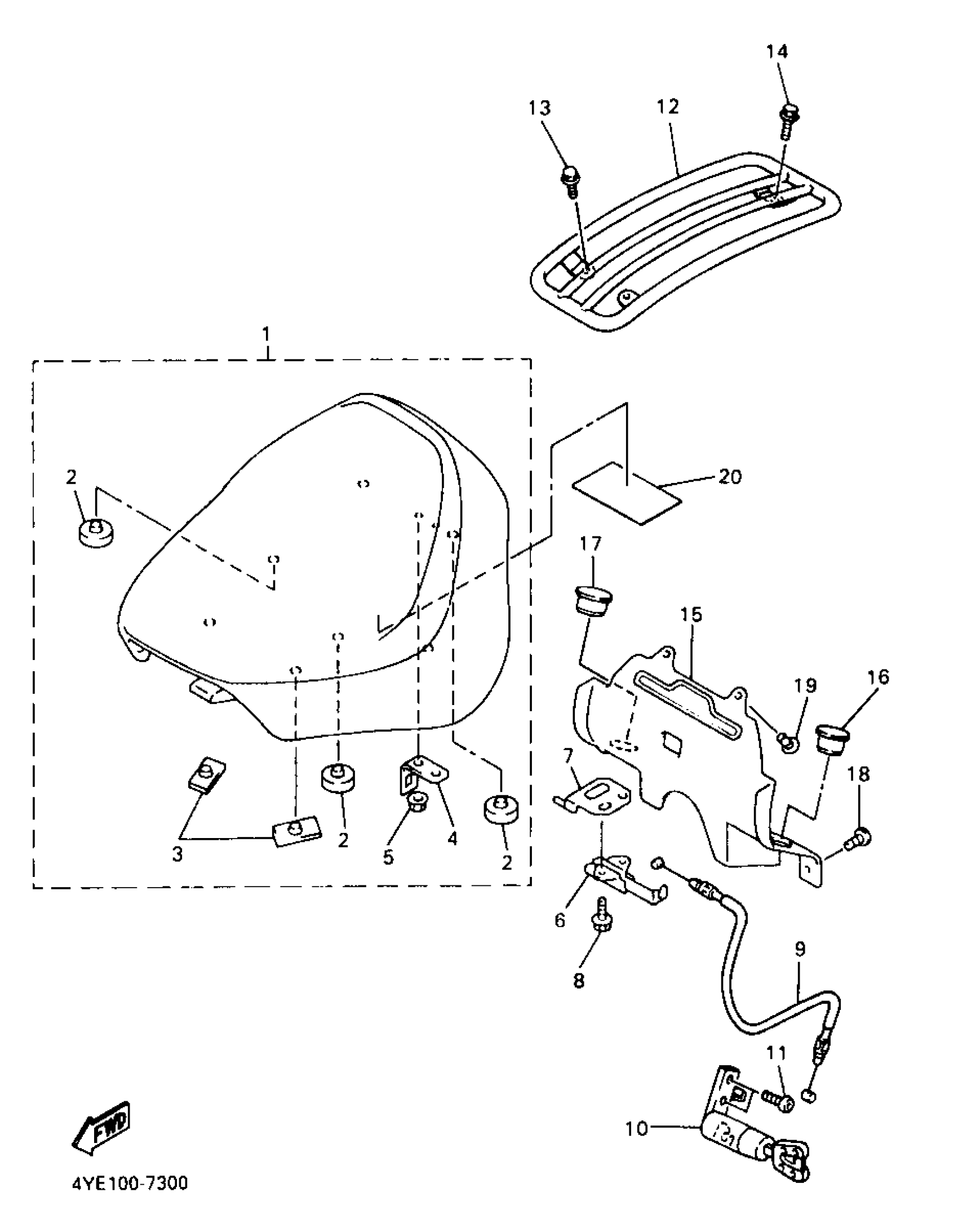

Yamaha XVZ13LTJC (ROYAL STAR TOUR DELUXE CA) 4YE2 1997 SEAT Diagram
#
Description
Price
1
SINGLE SEAT ASSY
4YE-24710-00-00
Unavailable
6
SEAT LOCK ASSY
50W-W247E-00-00
Unavailable
7
PLATE
4NK-24792-00-00
Unavailable
8
BOLT, FLANGE
95817-06014-00
Unavailable
9
CABLE, SEAT LOCK
4YE-2478E-00-00
Unavailable
10
SEAT LOCK ASSY
4YE-W2470-00-00
Unavailable
12
CARRIER ASSEMBLY
4YE-24810-00-00
Unavailable
16
PLUG(1FN)
90338-23172-00
Unavailable
17
PLUG
90338-36258-00
Unavailable
18
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
19
RIVET
90269-06001-00
Unavailable
20
PLATE, EPA 2
4YE-2179R-00-00
Unavailable
20
PLATE, EPA 1
4YE-2179V-00-00
Unavailable
