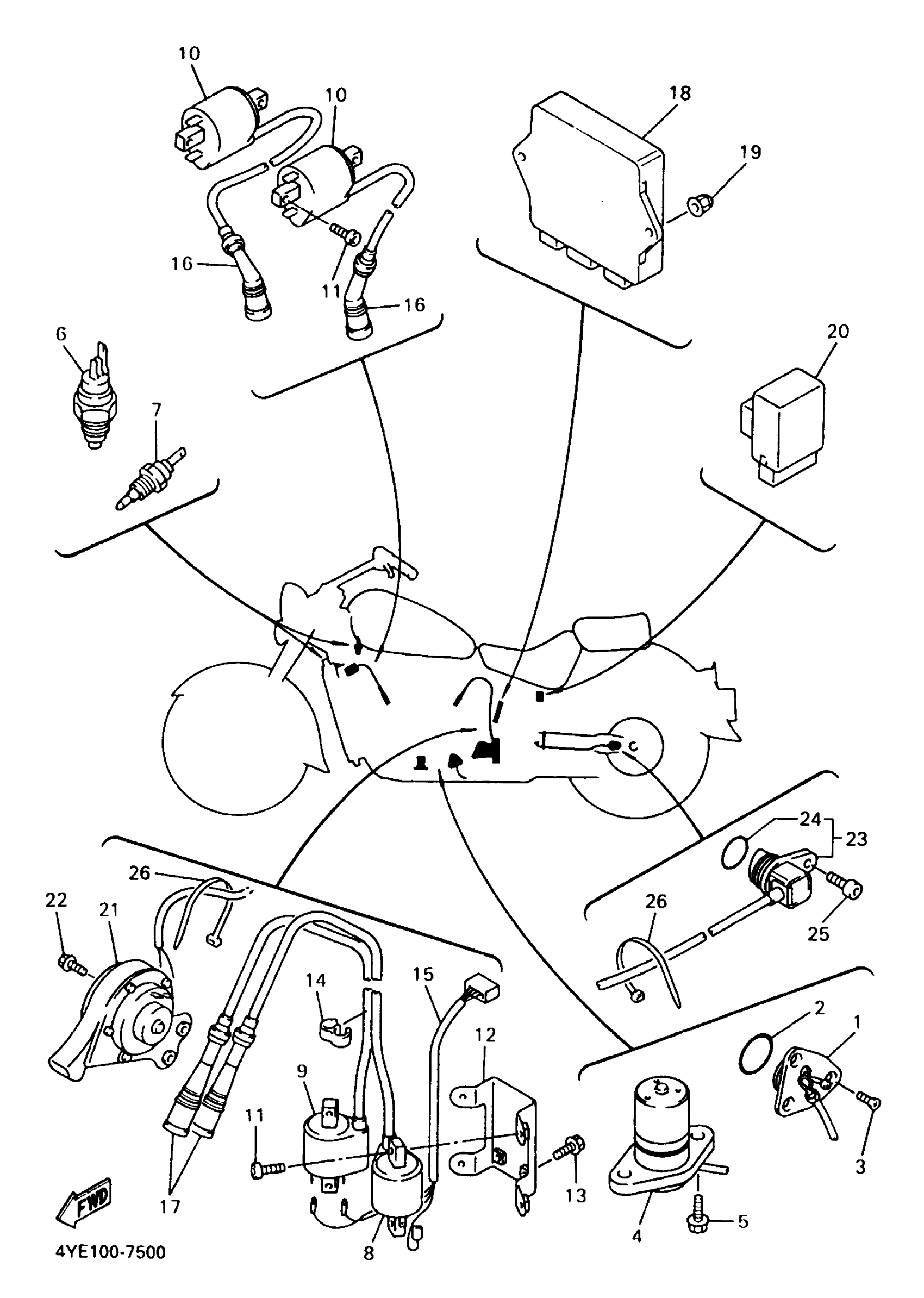

Yamaha XVZ13LTJC (ROYAL STAR TOUR DELUXE CA) 4YE2 1997 ELECTRICAL 2 Diagram

#

Description
Price

1

NEUTRAL SWITCH ASSY

4WY-82540-00-00

Unavailable

2

O-RING (371)

93210-29196-00

$8.49

3

SCREW(3HX)

90149-05245-00

$8.49

4

OIL LEVEL GAUGE ASSY

1FK-85720-00-00

Unavailable

5

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

6

THERMO SWITCH ASSY

3LN-82560-01-00

Unavailable

7

THERMO SWITCH ASSY

3YX-82560-00-00

$83.99

8

IGNITION COIL ASSY

4NK-82310-10-00

Unavailable

9

IGNITION COIL ASSY

4NK-82310-10-00

Unavailable

10

IGNITION COIL ASSY

4NK-82310-10-00

Unavailable

11

BOLT, SOCKET

91317-05016-00

$3.28

12

BRACKET, IGNITION COIL

4NK-82316-00-00

Unavailable

13

BOLT, FLANGE

95817-06010-00

$4.73

14

CLAMP(6M7)

90464-09M31-00

$8.49

15

WIRE, SUB LEAD

4NK-82509-00-00

Unavailable

16

PLUG CAP ASSY

4NK-82370-00-00

Unavailable

17

PLUG CAP ASSY

4XY-82370-00-00

Unavailable

18

IGNITOR UNIT ASSY

4NK-82305-20-00

Unavailable

19

NUT, CROWN(2GM)

90176-06065-00

Unavailable

20

FLASHER RELAY ASSY

4NK-83350-01-00

Unavailable

21

HORN

4NK-83371-00-00

Unavailable

22

BOLT, WITH WASHER(4ES)

90119-06217-00

Unavailable

23

SENSOR, SPEED

4NK-83755-01-00

Unavailable

24

O-RING

4NK-85075-00-00

Unavailable

25

BOLT,HEX. SOCKET BUTTON

90111-08053-00

Unavailable

26

CLAMP(MF1)

90464-15152-00

Unavailable
