- XVZ13LTJC (ROYAL STAR TOUR DELUXE CA) 4YE2 1997
ELECTRICAL 1

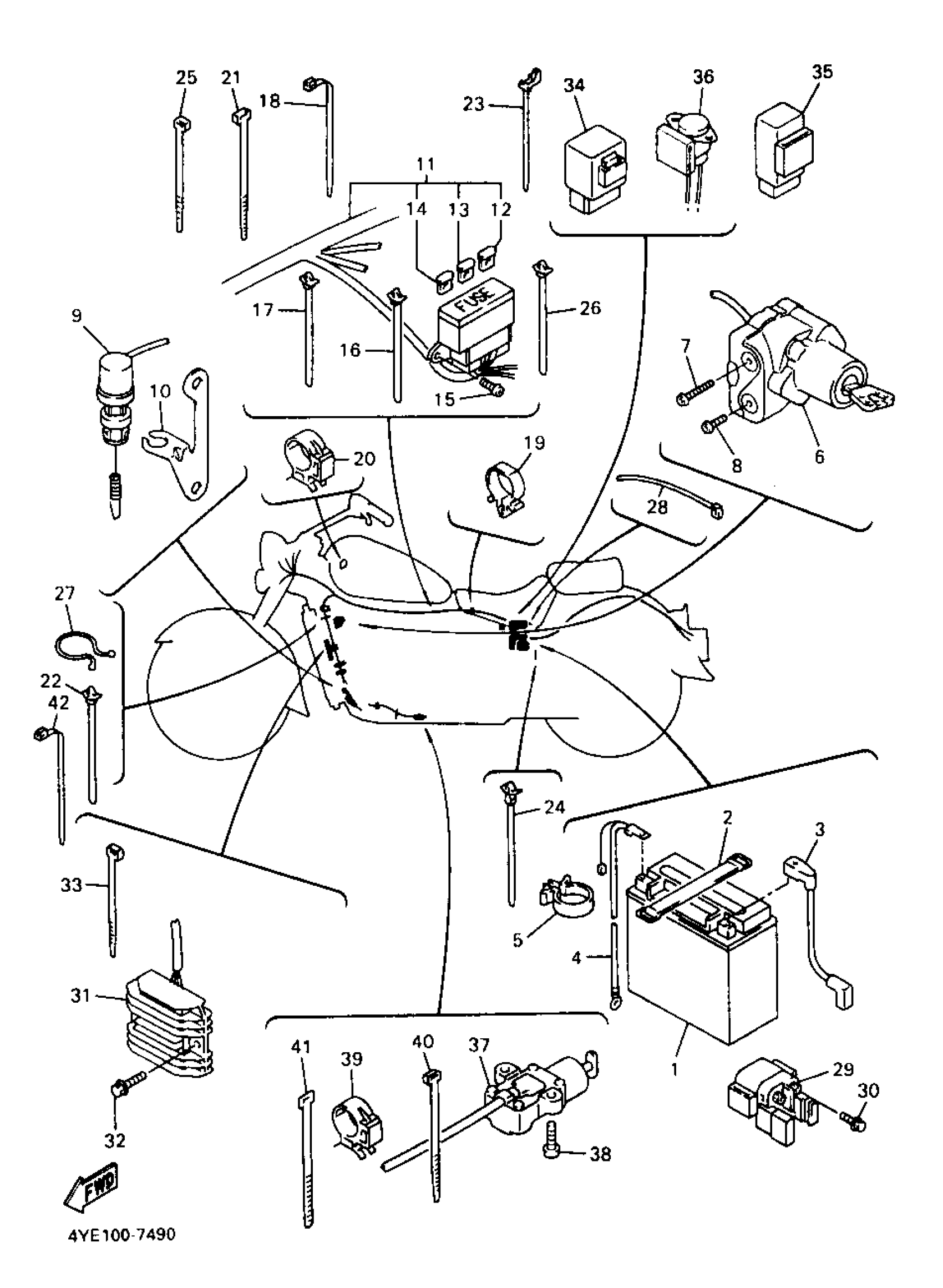

Yamaha XVZ13LTJC (ROYAL STAR TOUR DELUXE CA) 4YE2 1997 ELECTRICAL 1 Diagram
#
1
BATTERY ASSY (YUASA YTX20L-BS)
YTX-20LBS-00-00
Unavailable
4
WIRE, MINUS LEAD
4JH-82116-00-00
Unavailable
6
MAIN SWITCH ASSY
4YE-82510-02-00
Unavailable
9
STOP SWITCH ASSY
4NK-82530-00-00
Unavailable
10
STAY, STOP SWITCH
4NK-82539-00-00
Unavailable
11
WIRE HARNESS ASSEMBLY
4YE-82590-01-00
Unavailable
16
CLAMP(2TV)
90464-10112-00
Unavailable
17
CLAMP(2TV)
90464-10112-00
Unavailable
18
CLAMP(4FM)
90464-15195-00
Unavailable
19
CLAMP(4NK)
90464-24230-00
Unavailable
20
CLAMP(4GY)
90464-10190-00
Unavailable
21
BAND
1UA-82591-00-00
Unavailable
22
CLAMP(2TV)
90464-10112-00
Unavailable
23
CLAMP(4GY)
90464-15200-00
Unavailable
24
CLAMP(2TV)
90464-10112-00
Unavailable
25
CLAMP
90464-16061-00
Unavailable
26
CLAMP(2TV)
90464-10112-00
Unavailable
27
CLAMP (8M1)
90464-30040-00
Unavailable
28
CLAMP
90464-16061-00
Unavailable
29
STARTER RELAY ASSY (RC19-005)
4BH-81940-02-00
Unavailable
30
BOLT, SMALL FLANGE
95027-06008-00
Unavailable
31
RECTIFIER & REGULATOR ASSY
3VD-81960-01-00
Unavailable
32
BOLT, FLANGE
95817-06020-00
Unavailable
33
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
34
RELAY ASSY
3EN-81950-02-00
Unavailable
35
RELAY ASSY (1UY-92)
1UY-81950-92-00
Unavailable
36
THERMO SWITCH ASSY
3BT-82560-00-00
Unavailable
37
SWITCH, SIDE STAND
3LD-82566-51-00
Unavailable
38
SCREW, PAN HEAD
98507-05014-00
Unavailable
39
CLAMP(4GY)
90464-10190-00
Unavailable
40
BAND
1UA-82591-00-00
Unavailable
41
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
42
CLAMP(4FM)
90464-15195-00
Unavailable
