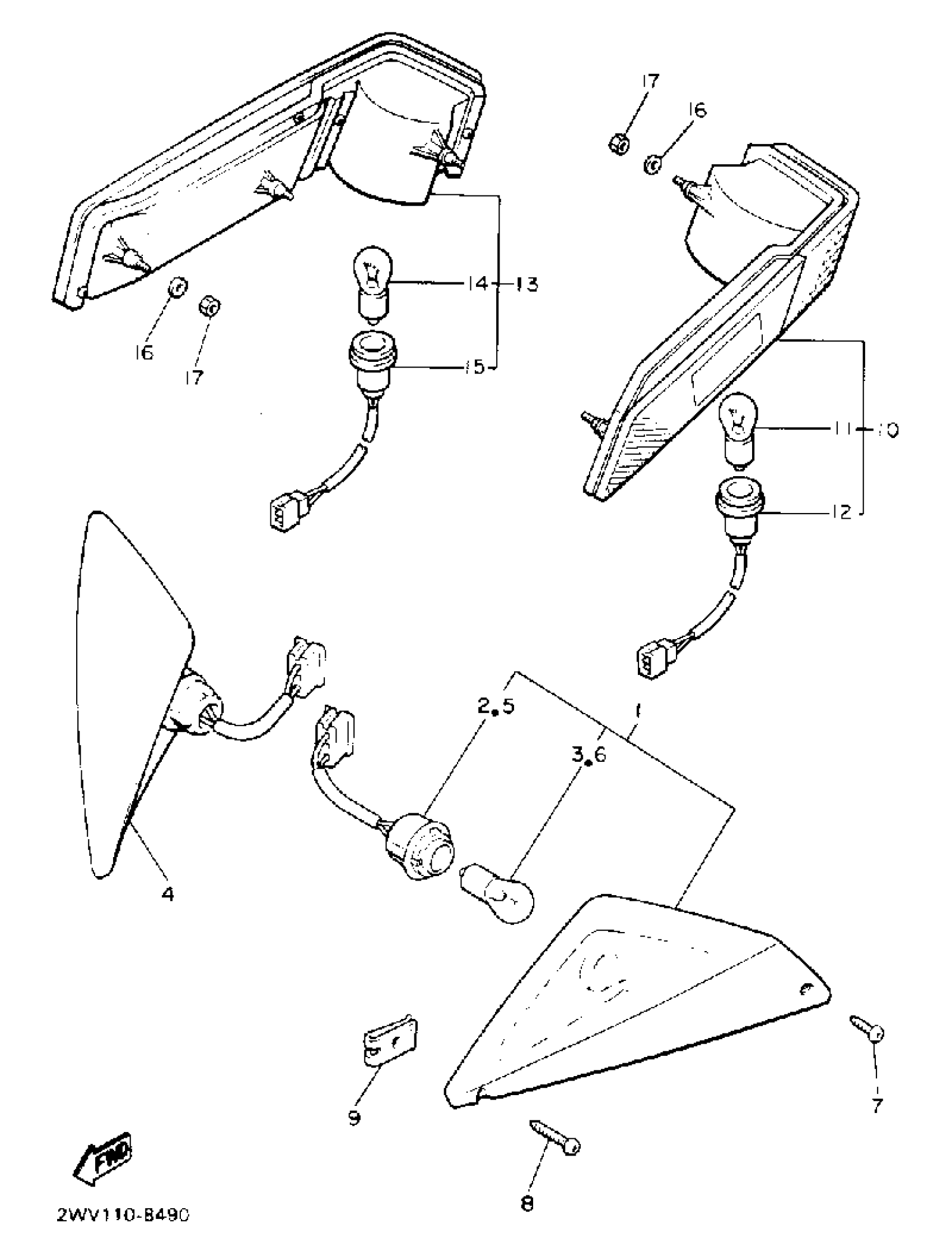

Yamaha XVZ13DWC (VENTURE ROYALE CA) 1989 TURNSIGNAL Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASS''Y 1

26H-83310-70-00

Unavailable

2

. CORD ASS''Y

26H-8331E-00-00

Unavailable

3

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

4

FRONT FLASHER LIGHT ASS''Y 2

26H-83320-70-00

Unavailable

5

. CORD ASS''Y

26H-8332E-00-00

Unavailable

6

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

7

YBS83-420 SCREW,PANH,TAPPING

97780-40120-00

$3.55

8

SCREW, PAN TAP.2 SLIT

97707-40614-00

$4.15

9

NUT, SPRING (26H)

90183-04027-00

$2.39

10

REAR FLASHER LIGHT ASS''Y 1

1NL-83330-00-00

Unavailable

11

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

12

. CORD ASS''Y

1NL-8334E-00-00

Unavailable

13

REAR FLASHER LIGHT ASS''Y 2

1NL-83340-00-00

Unavailable

14

. UNAVAILABLE IN PRICE BOOK (25G-83331-00)

256-83331-70-XX

Unavailable

15

. CORD ASS''Y

1NL-8334E-00-00

Unavailable

16

WASHER(6TA)

92907-06200-00

Unavailable

17

NUT(4MY)

95307-06800-00

Unavailable
