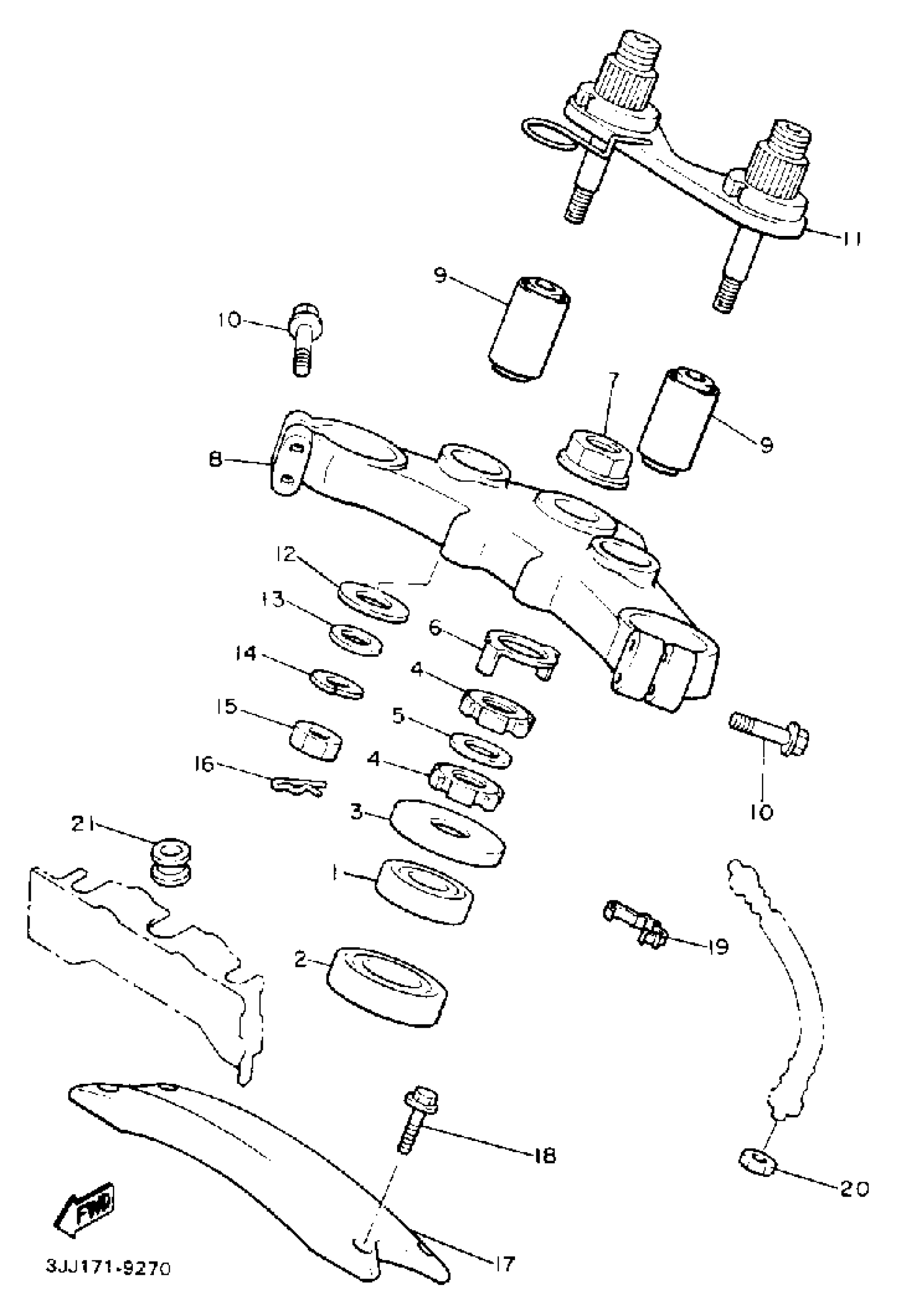

Yamaha XVZ13DWC (VENTURE ROYALE CA) 1989 STEERING Diagram

#

Description
Price

1

BRG, TAPERED ROLLER (409)

93332-00001-00

$58.99

2

BRG,CYL-CAL ROLLER 131G KY

93332-00008-00

$67.99

3

COVER, BALL RACE 1

1J7-23415-00-00

$6.99

4

NUT

90179-25004-00

$24.99

5

WASHER, PLATE (26H)

90202-26142-00

$9.49

6

WASHER, SPECIAL

26H-23418-01-00

$14.49

7

NUT (26H)

90179-22412-00

$20.99

8

CROWN, handle

1NL-23440-00-98

Unavailable

9

HOLDER, damper

1NL-23434-00-00

Unavailable

10

BOLT, FLANGE(JN5)

95817-08045-00

$3.69

11

HOLDER, handle lower

1NL-23442-00-00

Unavailable

12

WASHER, plate

90202-19173-00

Unavailable

13

WASHER, plate

90201-126K4-00

Unavailable

14

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

15

NUT, HEXAGON SMALL

95317-12700-00

$8.49

16

CLIP 136253750000

90468-12006-00

Unavailable

17

BRACE, fork

26H-2313A-00-00

Unavailable

18

BOLT, FLANGE (3JPE)

95024-08016-00

Unavailable

19

CLAMP(1NL)

90465-14310-00

Unavailable

20

NUT (682)

95380-10700-00

Unavailable

21

GROMMET

90480-14455-00

Unavailable
