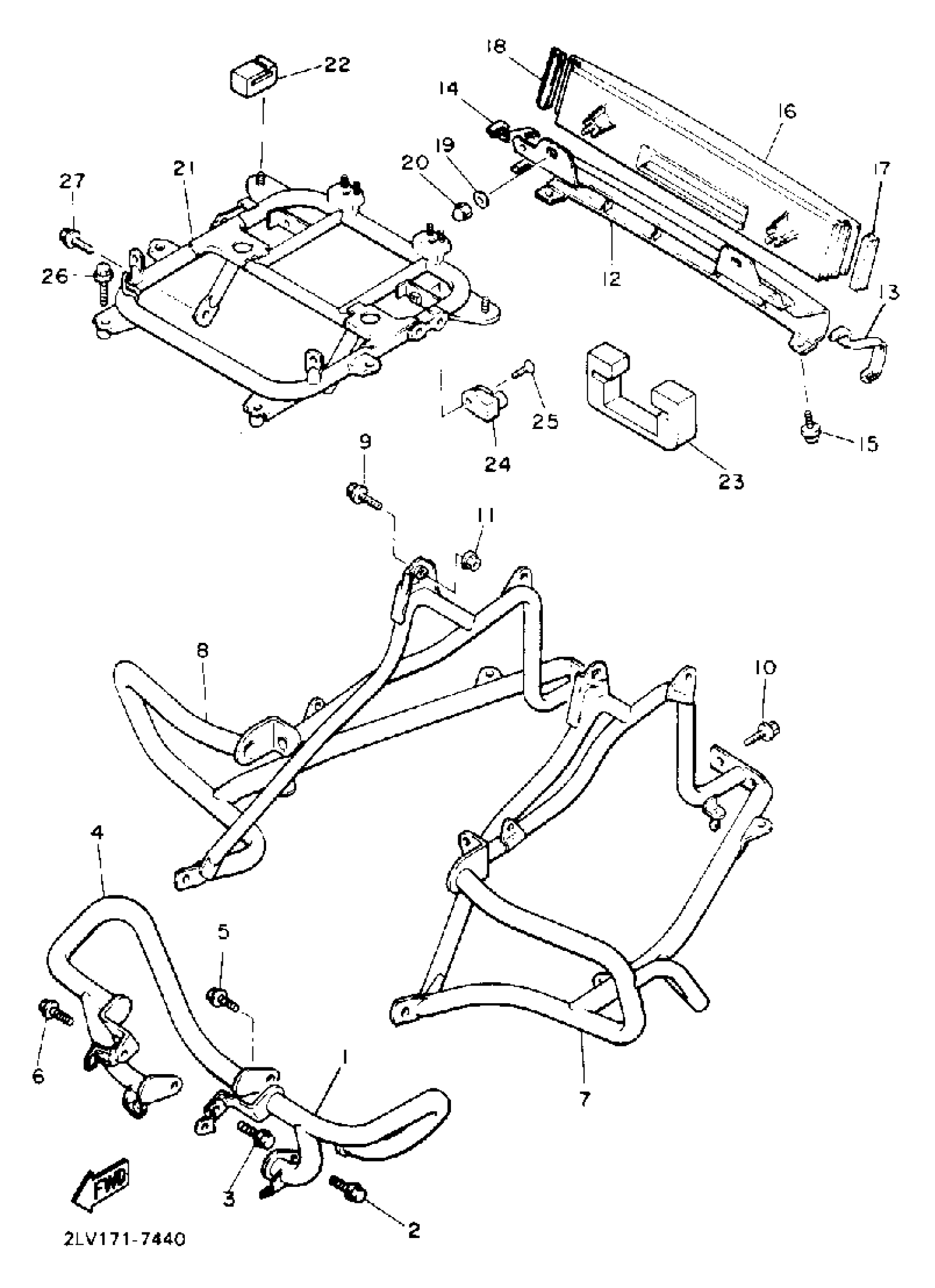

Yamaha XVZ13DWC (VENTURE ROYALE CA) 1989 GUARD Diagram

#

Description
Price

1

GUARD, ENGINE 1

1NL-28418-01-00

Unavailable

2

BOLT, FLANGE (3JPE)

95024-08016-00

$9.49

3

BOLT, FLANGE(2UJ)

95024-08020-00

$8.49

4

GUARD, ENGINE 2

1NL-28419-01-00

Unavailable

5

BOLT, FLANGE (3JPE)

95024-08016-00

$9.49

6

BOLT, FLANGE(2UJ)

95024-08020-00

$8.49

7

FRAME, SADDLEBAG 1 (1NL-28473-01-00)

1NL-28473-02-00

Unavailable

8

FRAME, SADDLEBAG 2

1NL-28474-02-00

Unavailable

9

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

10

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

11

NUT, FLANGE

95704-08500-00

$8.49

12

GUARD, SADDLEBAG 1

1NL-28422-00-00

Unavailable

13

MOULDING 3

1NL-28438-00-00

Unavailable

14

MOULDING 4

1NL-28439-00-00

Unavailable

15

SCREW, WITH WASHER(1NL)

90159-05134-00

$0.33

16

REAR REFLECTOR ASSY

1NL-85130-00-00

Unavailable

17

MOULDING 7

1NL-2844N-00-00

Unavailable

18

MOULDING 8

1NL-2844R-00-00

Unavailable

19

WASHER(6TA)

92907-06200-00

Unavailable

20

NUT(4MY)

95307-06800-00

Unavailable

21

FRAME,TRAVEL TRUNK

3JT-28475-00-00

Unavailable

22

DAMPER 1

1NL-28415-00-00

Unavailable

23

DAMPER 2

1NL-28416-00-00

Unavailable

24

HELMET HANGER ASSY

26H-21308-01-00

Unavailable

25

SCREW (3H1)

90149-06150-00

Unavailable

26

BOLT, FLANGE

95817-08040-00

Unavailable

27

BOLT, FLANGE(JN5)

95817-08016-00

$5.49
