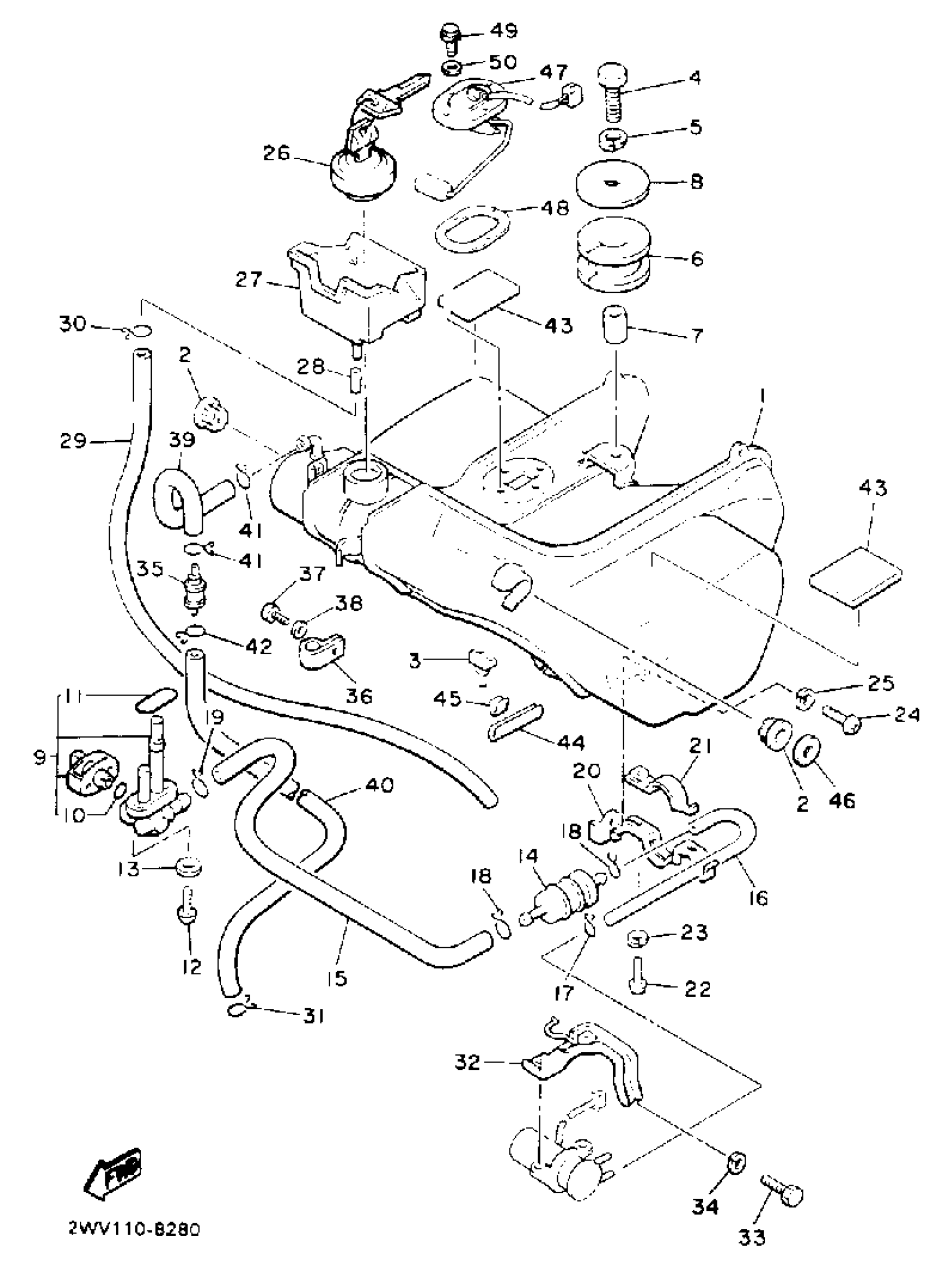

Yamaha XVZ13DWC (VENTURE ROYALE CA) 1989 FUEL TANK Diagram
#
1
. FUEL TANK COMP
54K-24110-00-33
Unavailable
3
DAMPER, locating 2
26H-24182-01-00
Unavailable
6
GROMMET
90480-20357-00
Unavailable
7
COLLAR(82M)
90387-084R5-00
Unavailable
9
FUEL COCK ASS''Y 1
3JJ-24500-00-00
Unavailable
15
PIPE 4
41R-24314-00-00
Unavailable
16
. PIPE 5
26H-24315-01-00
Unavailable
17
CLIP(42X)
90467-10091-00
Unavailable
18
CLIP (7K7)
90467-11044-00
Unavailable
19
CLIP(42X)
90467-10091-00
Unavailable
20
BRACKET, filter
26H-24566-02-00
Unavailable
21
BAND, FILTER
26H-24568-00-00
Unavailable
22
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
23
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
24
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
25
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
26
CAP ASSY
54K-24602-10-00
Unavailable
27
. COVER, filler
54K-2414A-00-00
Unavailable
28
PIPE, JOINT 1
(54K-24376-00-00)
Unavailable
29
HOSE (L1050)
90445-072G8-00
Unavailable
30
CLIP (16G)
90467-08021-00
Unavailable
31
CLIP 101235600
90467-08003-00
Unavailable
32
BRACKET, fuel pump
26H-24491-01-00
Unavailable
33
BOLT (661)
97013-06012-00
Unavailable
34
WASHER, SPRING
92995-06100-00
Unavailable
35
ROLL OVER VALVE ASSY
25H-24180-00-00
Unavailable
36
CLAMP
90464-15014-00
Unavailable
37
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
38
WASHER, PLAIN (646)
92990-05600-00
Unavailable
39
PIPE, fuel 1
54K-24311-00-00
Unavailable
40
UNAVAILABLE IN PRICE BOOK
[1U-W2431-20-00
Unavailable
40
PIPE 2
(54K-24312-00-00)
Unavailable
41
CLIP
90467-100A1-00
Unavailable
42
CLIP 101235600
90467-08003-00
Unavailable
43
DAMPER
1YW-21638-00-00
Unavailable
44
MOLD, fuel tank
26H-24188-00-00
Unavailable
45
CLIP
90468-03063-00
Unavailable
46
WASHER, plate
90202-16163-00
Unavailable
47
SENDER UNIT ASS''Y, fuel meter
26H-85752-00-00
Unavailable
48
GASKET, SENDER UNIT
2H7-85753-00-00
Unavailable
49
BOLT, FLANGE
95817-06014-00
Unavailable
