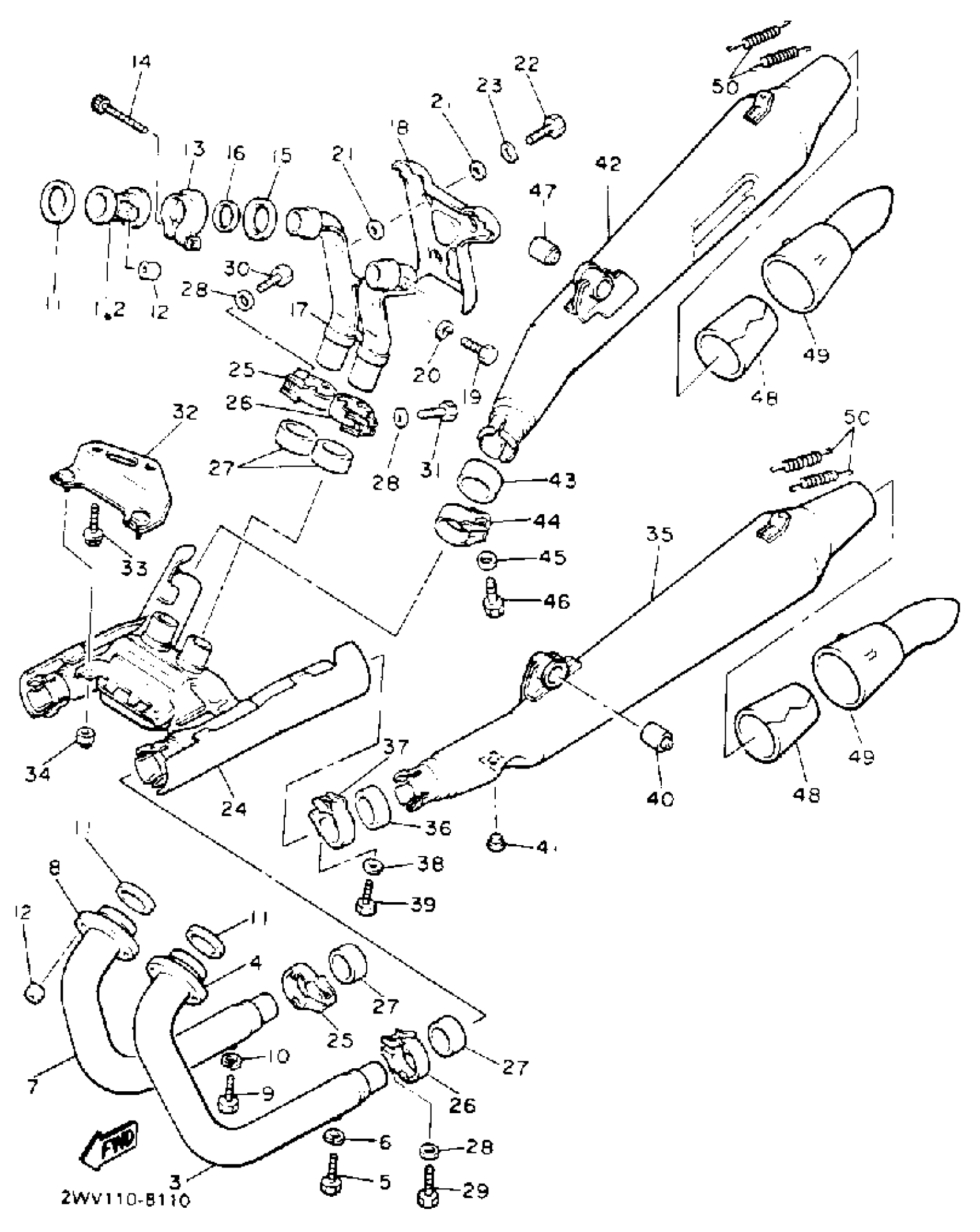

Yamaha XVZ13DWC (VENTURE ROYALE CA) 1989 EXHAUST Diagram
#
1
PIPE, exhaust 1
26H-14611-01-00
Unavailable
2
PIPE, exhaust 3
26H-14631-01-00
Unavailable
3
PIPE, exhaust 2
26H-14621-02-00
Unavailable
4
NUT, ring
26H-14612-00-00
Unavailable
6
WASHER, SPRING
92995-06100-00
Unavailable
7
PIPE, exhaust 4
26H-14641-02-00
Unavailable
8
NUT, ring
26H-14612-00-00
Unavailable
10
WASHER, SPRING
92995-06100-00
Unavailable
13
BAND, muffler (26H-14715-00)
26h-14715-01-00
Unavailable
14
BOLT, HEXAGON SOCKET HEAD
90110-06054-00
Unavailable
15
RING, stopper
26H-14618-00-00
Unavailable
16
GASKET, EXHAUST PIPE
26H-14613-01-00
Unavailable
17
JOINT, exhaust 1
26H-14615-01-00
Unavailable
18
COVER, exhaust
26H-14624-01-00
Unavailable
20
WASHER, SPRING
92995-06100-00
Unavailable
21
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
23
WASHER, WAVE(3RW)
90206-06090-00
Unavailable
24
CHAMBER 1
26H-14731-02-00
Unavailable
25
BAND, silencer
26H-14788-01-00
Unavailable
26
BAND, silencer
26H-14789-01-00
Unavailable
27
GASKET, EXST PIPE
3JJ-14623-00-00
Unavailable
28
.. WASHER, PLATE
92990-08600-00
Unavailable
29
BOLT, HEXAGON
97017-08025-00
Unavailable
30
BOLT, HEXAGON
97017-08020-00
Unavailable
31
BOLT, HEXAGON
97017-08025-00
Unavailable
32
STAY, muffler 2
26H-14772-01-00
Unavailable
33
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
34
NUT, SELF-LOCKING
90185-08169-00
Unavailable
35
MUFFLER 1
1NL-14711-00-00
Unavailable
36
GASKET, EXHAUST 4
3JJ-14653-00-00
Unavailable
37
BAND, silence 4
26H-14797-00-00
Unavailable
38
.. WASHER, PLATE
92990-08600-00
Unavailable
39
BOLT, HEXAGON
97017-08025-00
Unavailable
40
DAMPER, FOOTREST
26H-27414-00-00
Unavailable
41
STOPPER, MAIN STAND
1A0-27114-00-00
Unavailable
42
MUFFLER 2
1NL-14721-01-00
Unavailable
43
GASKET, EXHAUST 4
3JJ-14653-00-00
Unavailable
44
BAND, silencer 4
26H-14796-00-00
Unavailable
45
.. WASHER, PLATE
92990-08600-00
Unavailable
46
BOLT, HEXAGON
97017-08025-00
Unavailable
47
DAMPER, FOOTREST
26H-27414-00-00
Unavailable
48
GASKET, muffler damper 1
1NL-14739-00-00
Unavailable
49
GASKET, muffler damper 1
1NL-14746-00-00
Unavailable
50
SPRING, tension
90506-11392-00
Unavailable
