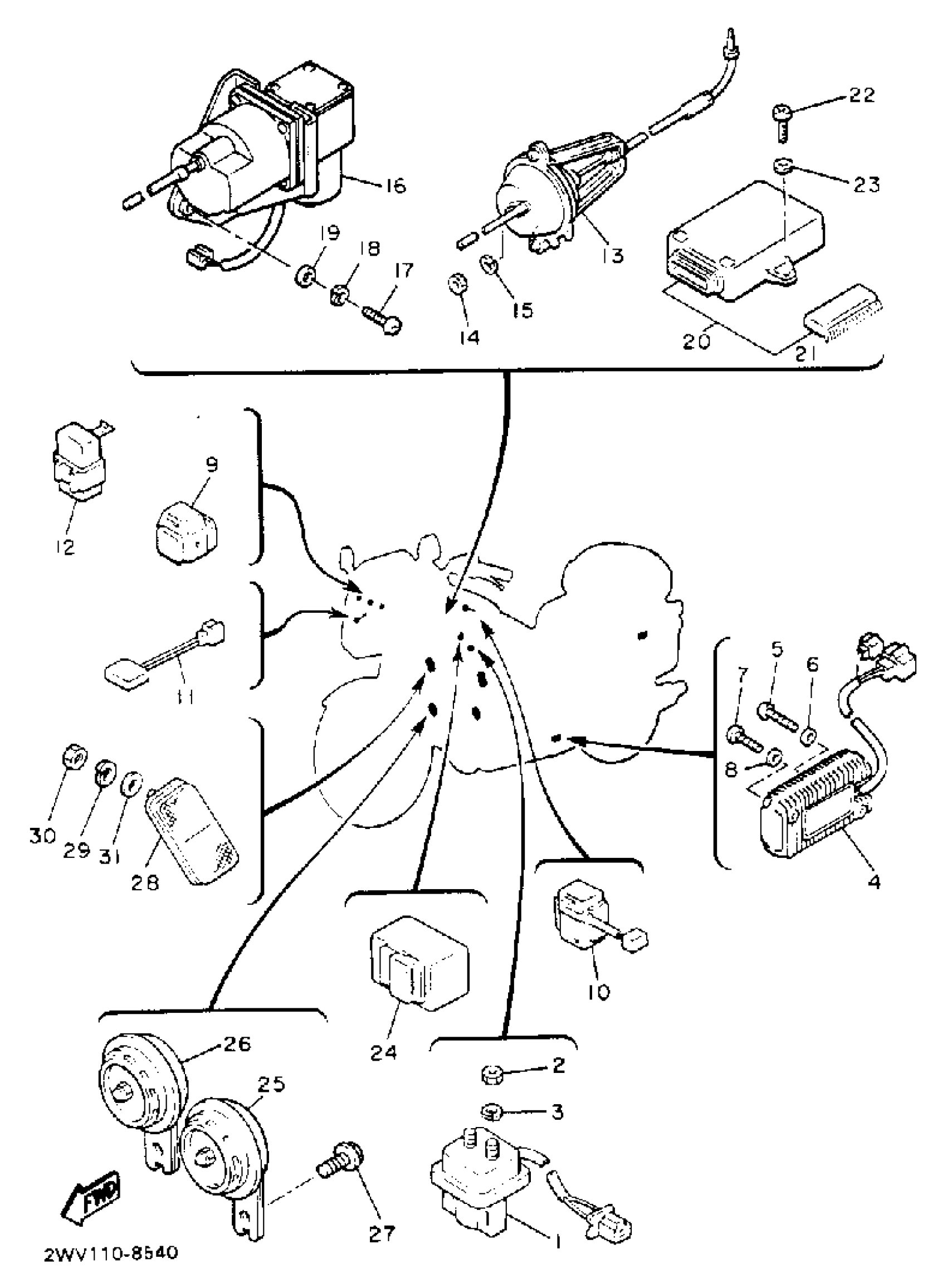

Yamaha XVZ13DWC (VENTURE ROYALE CA) 1989 ELECTRICAL 1 Diagram

#

Description
Price

1

STARTER RELAY ASSY

36Y-81940-00-00

Unavailable

2

NUT(650)

95380-06700-00

$8.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

RECTIFIER/REG ASY

2WR-81960-A0-00

Unavailable

5

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

6

WASHER(6TA)

92907-06600-00

$2.72

7

SCREW, PAN

98507-06035-00

$8.49

8

WASHER(6TA)

92907-06600-00

$2.72

9

RELAY ASSY

4U8-81950-03-00

Unavailable

10

EMERGENCY STOP SWITCH ASSY

2H7-82576-00-00

Unavailable

11

RECTIFIER 2

4H7-81980-M0-00

Unavailable

12

CONTROL UNIT ASSY

41R-85740-00-00

Unavailable

13

VACUUM ACTUATOR

1NL-85860-00-00

Unavailable

14

NUT(6L2)

95333-08600-00

$2.49

15

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

16

PUMP, vacuum

1NL-85861-00-00

Unavailable

17

SCREW PAN HEAD

98580-06020-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

WASHER, PLATE

90201-06M08-00

Unavailable

20

CONTROL UNIT ASS''Y

1NL-85830-00-00

Unavailable

21

CENTRAL PROCESSING UNIT ASS''Y

1NL-85842-00-00

Unavailable

22

SCREW, PAN

98507-06014-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable

24

FLASHER RELAY ASSY

41R-83350-72-00

Unavailable

25

HORN

1NL-83371-20-00

Unavailable

26

HORN

1NL-83371-30-00

Unavailable

27

BOLT, FLANGE (3JPE)

95024-08016-00

Unavailable

28

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

29

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

30

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

31

. WASHER, PLAIN

92990-05200-00

Unavailable
