Description

Price

1

WATER PUMP ASS''Y

26H-12420-01-00

Unavailable

2

INPELLER SHAFT ASSY

1FK-12450-00-00

$122.99

3

PIN, DOWEL

93603-14026-00

$8.49

4

GEAR, IMPELLER SHAFT (31T)

26H-12459-00-00

Unavailable

5

CIRCLIP(10W)

99009-10400-00

$4.73

6

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$37.99

7

OIL SEAL (J10)

93101-10090-00

$8.49

8

SEAL, MECHANICAL

11H-12438-10-00

$62.99

9

O-RING (26H)

93211-16591-00

$15.99

10

BOLT, SOCKET

91314-06016-00

$8.49

11

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

12

GASKET

214-11198-01-00

$3.17

13

DAMPER 4

26H-15337-01-00

Unavailable

14

CLIP (26H)

90468-98132-00

$11.49

15

DAMPER, ENGINE MOUNT 5

26H-15338-00-00

$7.99

16

GASKET, WATER PUMP

3JP-12449-02-00

Unavailable

17

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

18

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

19

BOLT, SOCKET

91314-06065-00

Unavailable

20

JOINT

26H-12446-00-00

Unavailable

21

O-RING(1KT)

93210-27778-00

Unavailable

22

HOUSING, THERMOSTAT

1FK-12417-00-00

Unavailable

23

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

24

PLUG (13K)

90338-06134-00

Unavailable

25

THERMOSTAT ASSY

99999-03066-00

Unavailable

26

SEAL, THERMOSTAT

11H-12412-00-00

Unavailable

27

COVER, THERMOSTAT

26H-12413-00-00

Unavailable

28

O-RING(1EY)

93210-43713-00

Unavailable

29

BOLT, HEXAGON SOCKET HEAD(47X)

90110-06084-00

Unavailable

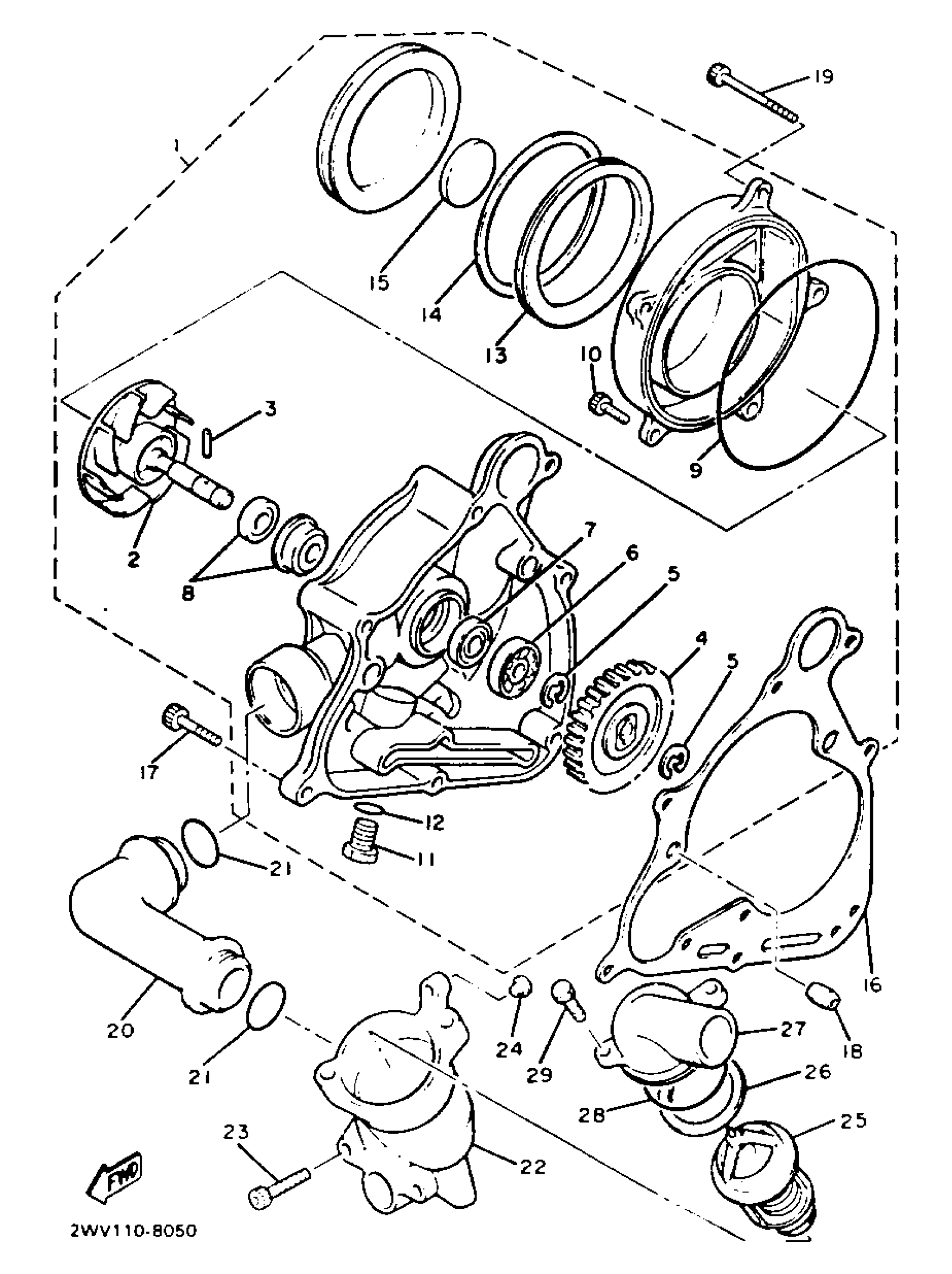

Yamaha XVZ13DUC (VENTURE ROYALE CA) 1988 WATER PUMP Diagram

WATER PUMP ASS''Y

INPELLER SHAFT ASSY

PIN, DOWEL

GEAR, IMPELLER SHAFT (31T)

CIRCLIP(10W)

BRG,R-B 6000 26MM 19G KY

OIL SEAL (J10)

SEAL, MECHANICAL

O-RING (26H)

BOLT, SOCKET

PLUG, STRAIGHT SCREW(3FA)

GASKET

DAMPER 4

CLIP (26H)

DAMPER, ENGINE MOUNT 5

GASKET, WATER PUMP

BOLT,SOCKET HEAD

PIN, DOWEL(3VD)

BOLT, SOCKET

JOINT

O-RING(1KT)

HOUSING, THERMOSTAT

BOLT,SOCKET HEAD

PLUG (13K)

THERMOSTAT ASSY

SEAL, THERMOSTAT

COVER, THERMOSTAT

O-RING(1EY)

BOLT, HEXAGON SOCKET HEAD(47X)
