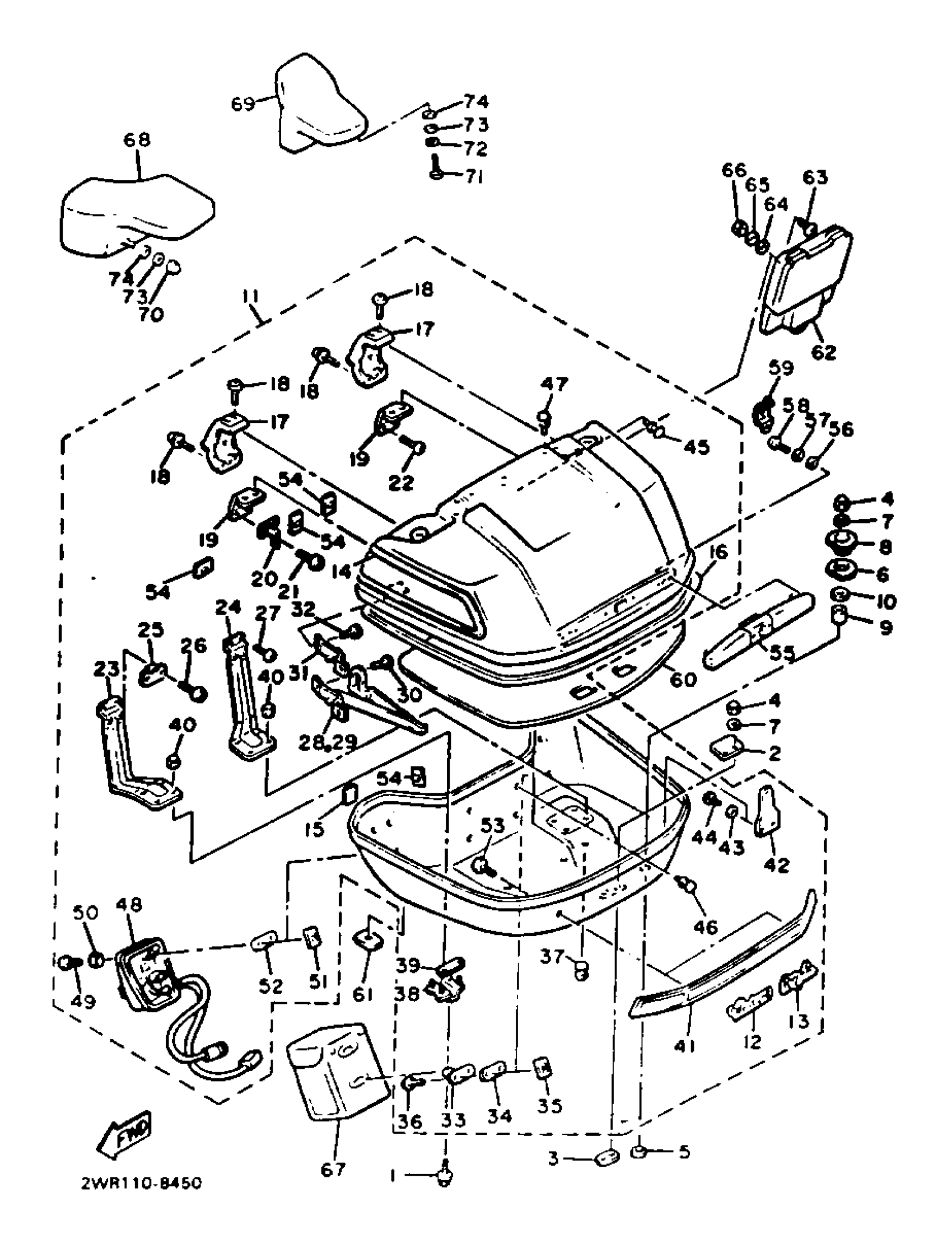

Yamaha XVZ13DUC (VENTURE ROYALE CA) 1988 TRAVELBAG Diagram
#
2
. PLATE 3
54K-28497-00-00
Unavailable
3
. PLATE, rubber 9
54K-2849J-00-00
Unavailable
5
WASHER, PLATE
90202-06058-00
Unavailable
6
PLATE, rubber 10
1NL-2845K-00-00
Unavailable
8
REINFORCEMENT 4
1NL-2843K-00-00
Unavailable
10
WASHER, PLATE (5E3)
90202-10120-00
Unavailable
11
TRAVEL TRUNK COMP
2WR-Y284E-00-6X
Unavailable
11
TRAVEL TRUNKCOMP
2WR-Y284E-00-7X
Unavailable
12
EMBLEM 4 (26H-21784-00)
26H-21783-00-00
Unavailable
13
. EMBLEM 3
31M-2842J-00-00
Unavailable
14
. GRAPHIC SET, travel trunk
2WR-2840H-00-00
Unavailable
14
. GRAPHIC SET, TRUNK TRAVEL TRUNK
2WR-2840H-10-00
Unavailable
15
PAD, BATTERY
(5G7-82121-00-00)
Unavailable
16
SEAL 5
54K-2847F-00-00
Unavailable
17
. HINGE 2
54K-2845E-00-00
Unavailable
18
. SCREW, WITH WASHER
90159-05132-00
Unavailable
19
. REINFORCEMENT 3
54K-2845H-00-00
Unavailable
20
TRUNK SWITCH BRKT. 8
1NL-28469-00-00
Unavailable
21
SCREW, TAPPING
97707-30108-00
Unavailable
22
SCREW, tapping (97701-30106)
97701-30606-00
Unavailable
23
. BRACKET 5
54K-28486-00-00
Unavailable
24
. BRACKET 6
54K-28496-00-00
Unavailable
25
TRUNK SWITCH BRKT. 7
1NL-28468-00-00
Unavailable
26
SCREW, TAPPING
97707-30108-00
Unavailable
27
SCREW, tapping (97701-30106)
97701-30606-00
Unavailable
28
STOPPER, open
1NL-2845L-00-00
Unavailable
29
STOPPER, open
1NL-2845M-00-00
Unavailable
30
SCREW, tapping (97701-30106)
97701-30606-00
Unavailable
31
BRACKET, trunk stopper
1NL-2849R-00-00
Unavailable
32
SCREW, tapping (97701-30106)
97701-30606-00
Unavailable
33
. HOOK
54K-2844L-00-00
Unavailable
34
. SEAL 7
54K-2849F-00-00
Unavailable
35
. NUT, special
54K-2849M-00-00
Unavailable
36
SCREW, TAPPING
97707-40710-00
Unavailable
37
GROMMET (397)
90480-10068-00
Unavailable
38
BRACKET 3
1NL-28476-00-00
Unavailable
39
PLATE, rubber 3
1NL-28485-00-00
Unavailable
40
NUT, CAP
95307-05800-00
Unavailable
41
. REAR REFLECTOR ASS''Y
54K-85140-00-00
Unavailable
42
. HOOK
54K-28488-00-00
Unavailable
43
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
44
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
45
PLUG(1NL)
90338-07180-00
Unavailable
46
PLUG(1NL)
90338-07180-00
Unavailable
47
. DAMPER, grip
26H-2843A-00-00
Unavailable
48
REMOTE CONTROL BASE ASS''Y
1NL-8816A-00-00
Unavailable
49
SCREW, tapping
90167-40042-00
Unavailable
50
WASHER(JF2)
92907-04600-00
Unavailable
51
. NUT, special
54K-2849M-00-00
Unavailable
52
. SEAL 7
54K-2849F-00-00
Unavailable
53
. SCREW, tapping
97706-40008-00
Unavailable
54
CLAMP(1NL)
90464-62085-00
Unavailable
55
GRIP, SADDLEBAG
54K-28408-00-00
Unavailable
56
WASHER, PLATE
90202-08146-00
Unavailable
57
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
58
GASKET, EXHAUST
98507-05008-00
Unavailable
59
COVER LOCK ASS''Y 2
54K-28493-00-00
Unavailable
60
SEAT
54K-2848H-00-00
Unavailable
61
SEAT 2
1NL-2848K-00-00
Unavailable
62
VANITY MIRROR ASS''Y
1NL-2840U-00-00
Unavailable
63
SCREW, BINDING (8J0)
90154-05005-00
Unavailable
64
WASHER, PLATE (26H)
90202-05147-00
Unavailable
65
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
66
NUT, HEXAGON
95317-05600-00
Unavailable
67
POUCH, 2
3JJ-28402-00-00
Unavailable
67
POUCH, 2
1VE-28402-00-00
Unavailable
68
REST, ARM L/H
1NL-2840R-00-00
Unavailable
68
POUCH, 2
3JJ-2840R-00-00
Unavailable
69
POUCH, 2
3JJ-2840T-00-00
Unavailable
69
POUCH, 2
3JJ-2840T-00-00
Unavailable
70
NUT, CAP
95307-05800-00
Unavailable
71
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
72
WASHER(3SX)
92907-05100-00
Unavailable
73
WASHER, PLATE (26H)
90202-05147-00
Unavailable
74
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
