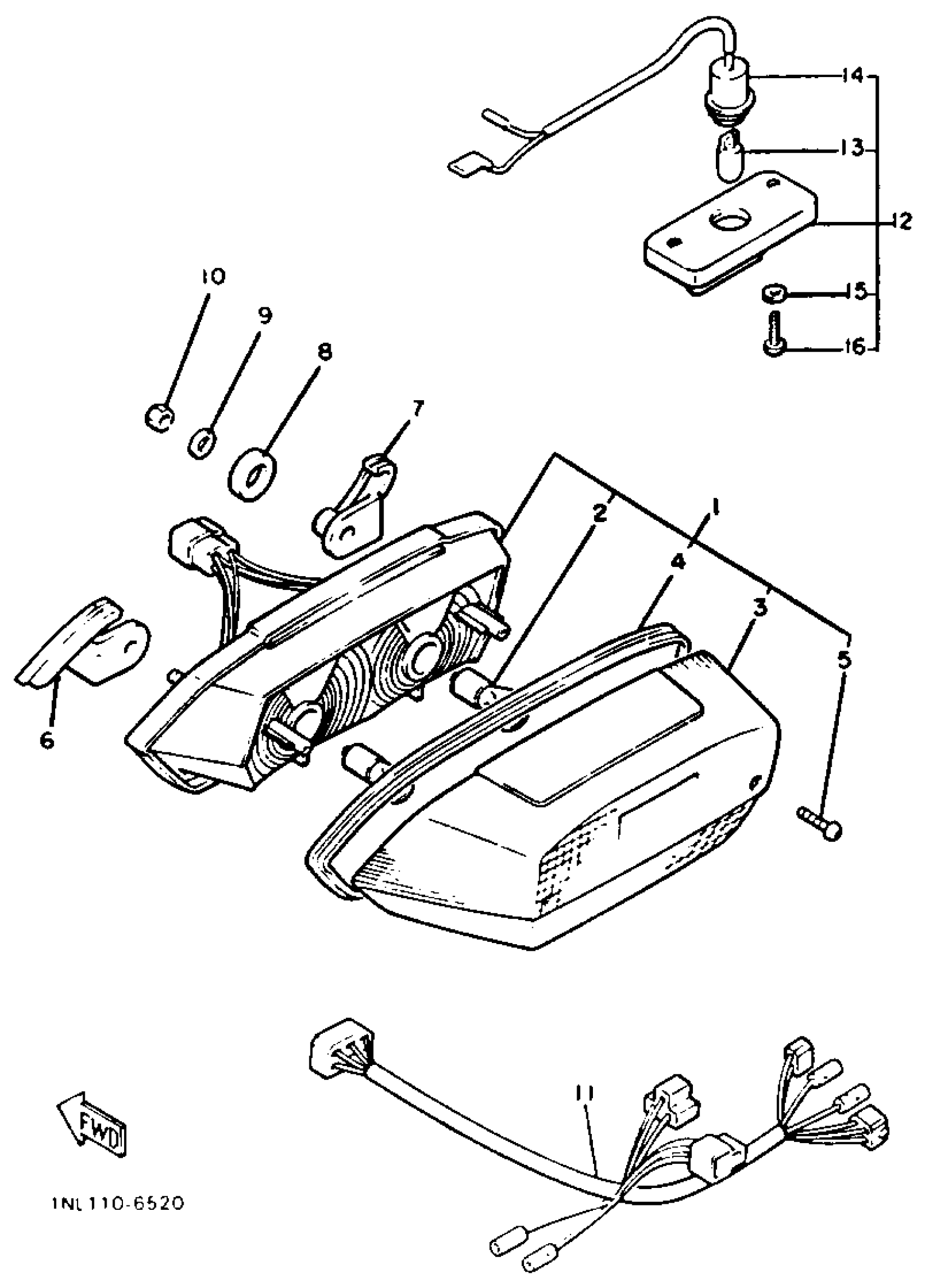

Yamaha XVZ13DUC (VENTURE ROYALE CA) 1988 TAILIGHT Diagram

TAILLIGHT UNIT ASS''Y

26H-84710-60-00

Unavailable

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

. LENS, taillight

26H-84721-60-00

Unavailable

SEAL

3TJ-14457-00-00

Unavailable

SCREW, LENS FITTING

3Y1-84524-00-00

$7.99

DAMPER, tail 1

26H-84736-00-00

Unavailable

DAMPER, tail 2

26H-84737-00-00

Unavailable

DAMPER

26H-84553-00-00

Unavailable

WASHER PLATE 248217570000

90201-06074-00

$9.49

NUT, HEXAGON

95380-06600-00

Unavailable

CORD, taillight

[1N-L8471-70-00

Unavailable

LIGHT, accessory

1NL-84770-00-00

Unavailable

BULB

4SV-84347-00-00

$8.99

. CORD ASS''Y

[1N-L8473-50-00

Unavailable

WASHER, PLATE

(90201-046K0-00)

Unavailable

SCREW, PAN HEAD

98507-04018-00

Unavailable
