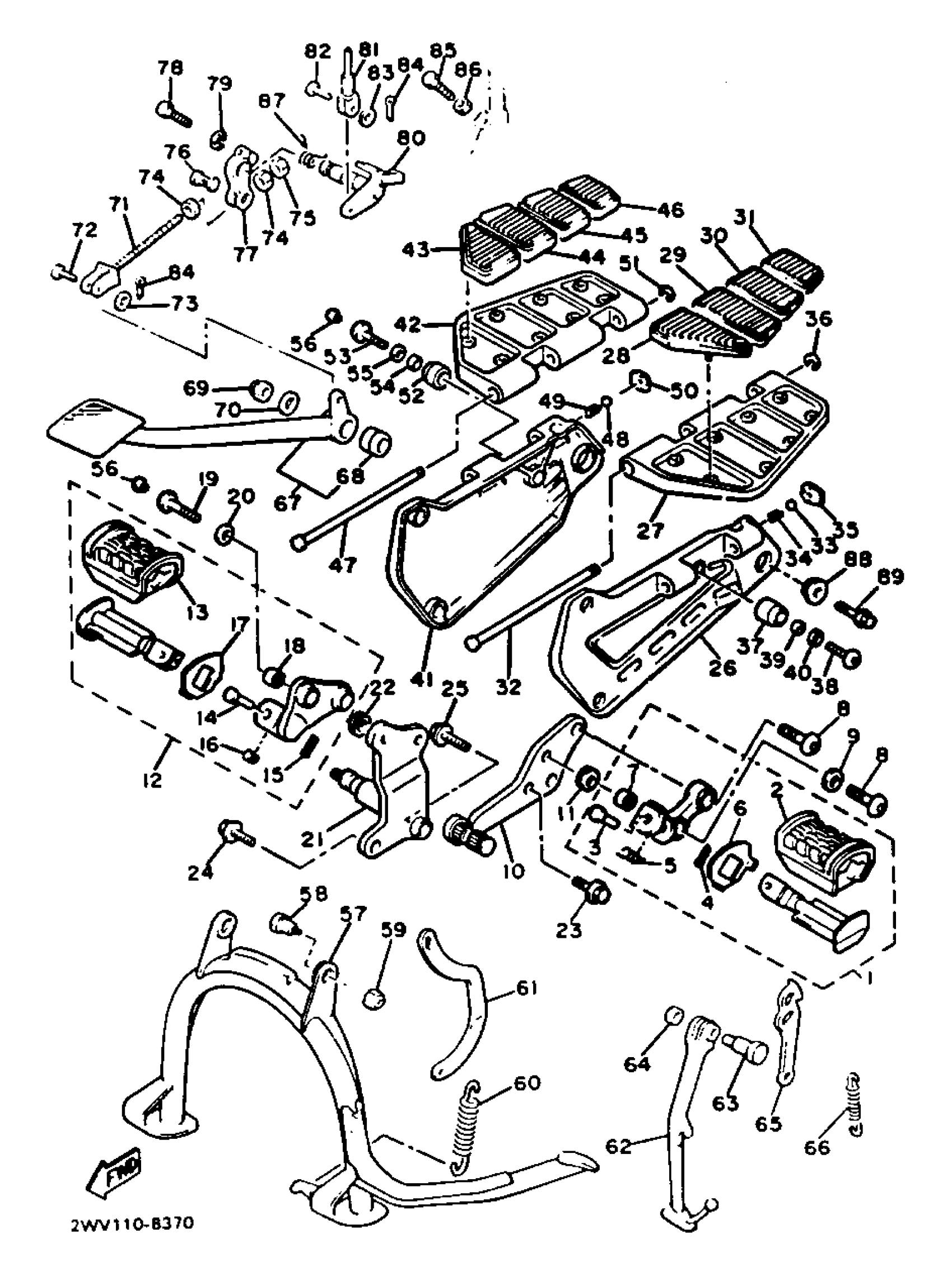

Yamaha XVZ13DUC (VENTURE ROYALE CA) 1988 STAND FOOTREST Diagram

#

Description
Price

1

FRONT FOOTREST ASSY (LEFT)

1NL-27410-01-93

Unavailable

2

COVER, FOOTREST

26H-27413-02-00

Unavailable

3

PIN, CLEVIS (2A6)

91701-08038-00

$4.14

4

PIN, COTTER

91490-25020-00

$3.19

5

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

6

. WASHER, FOOTREST

26H-27417-00-00

Unavailable

7

DAMPER, FOOTREST 2

1NL-27424-00-00

$35.99

8

BOLT (3XF1)

90110-08220-00

$7.49

9

PLATE, FOOTREST

1AA-27415-00-00

Unavailable

10

BRACKET 4 (1NL-2741L-00)

1NL-2741L-01-00

Unavailable

11

WASHER, PLATE

90202-19174-00

Unavailable

12

FRONT FOOTREST ASSY (RIGHT)

1NL-27420-01-93

Unavailable

13

COVER, FOOTREST

26H-27413-02-00

Unavailable

14

PIN, CLEVIS (2A6)

91701-08038-00

$4.14

15

PIN, COTTER

91490-25020-00

$3.19

16

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

17

. WASHER, FOOTREST

26H-27417-00-00

Unavailable

18

DAMPER, FOOTREST 2

1NL-27424-00-00

$35.99

19

BOLT (3XF1)

90110-08220-00

$7.49

20

PLATE, FOOTREST

1AA-27415-00-00

Unavailable

21

BRACKET 5

1NL-2742L-01-00

Unavailable

22

WASHER, PLATE

90202-19174-00

Unavailable

23

BOLT, SMALL FLANGE

95024-10030-00

Unavailable

24

BOLT, FLANGE

95023-10020-00

Unavailable

25

BOLT, SMALL FLANGE

95024-10030-00

Unavailable

26

BRACKET 2

1NL-27442-00-00

Unavailable

27

FOOTREST

1NL-27451-00-00

Unavailable

28

COVER, FOOTREST

1NL-27413-00-00

Unavailable

29

COVER, REAR FOOTREST

1NL-27433-00-00

Unavailable

30

COVER 1

1NL-27453-00-00

Unavailable

31

COVER 1

1NL-27486-00-00

Unavailable

32

SHAFT

1NL-27427-00-00

Unavailable

33

BALL

93501-04011-00

Unavailable

34

SPRING, COMPRESSION (23X)

90501-13720-00

Unavailable

35

WASHER, SPECIAL

1NL-27437-00-00

Unavailable

36

CIRCLIP(53L)

99001-06600-00

Unavailable

37

DAMPER, FOOTREST

1NL-27414-00-00

Unavailable

38

BOLT (3XF1)

90110-08220-00

$7.49

39

COLLAR(1NL)

90387-086N4-00

Unavailable

40

WASHER, PLATE (12X)

90201-087F0-00

Unavailable

41

BRACKET 3

1NL-27443-00-00

Unavailable

42

FOOTREST

1NL-27461-00-00

Unavailable

43

COVER, FOOTREST

1NL-27423-00-00

Unavailable

44

COVER, REAR FOOTREST

1NL-27444-00-00

Unavailable

45

COVER 2

1NL-27463-00-00

Unavailable

46

COVER 2

1NL-27487-00-00

Unavailable

47

SHAFT

1NL-27427-00-00

Unavailable

48

BALL

93501-04011-00

Unavailable

49

SPRING, COMPRESSION (23X)

90501-13720-00

Unavailable

50

WASHER, SPECIAL

1NL-27437-00-00

Unavailable

51

CIRCLIP(53L)

99001-06600-00

Unavailable

52

DAMPER, FOOTREST

1NL-27414-00-00

Unavailable

53

BOLT (3XF1)

90110-08220-00

$7.49

54

COLLAR(1NL)

90387-086N4-00

Unavailable

55

WASHER, PLATE (12X)

90201-087F0-00

Unavailable

56

PLUG(42X)

90338-08163-00

Unavailable

57

STAND, MAIN

26H-27111-01-R4

Unavailable

58

BOLT(1TX)

90109-101E6-00

Unavailable

59

NUT, SELF LOCKING (3G1)

90185-10091-00

Unavailable

60

SPRING, TENSION

90506-32314-00

Unavailable

61

LINK, MAIN STAND

26H-27115-00-00

Unavailable

62

STAND, SIDE

26H-27311-01-R4

Unavailable

63

BOLT(2GH)

90109-104E6-00

Unavailable

64

NUT, U

90185-10037-00

Unavailable

65

LINK, SIDE STAND

26H-27315-00-00

Unavailable

66

SPRING, TENSION (5N8)

90506-29266-00

Unavailable

67

PEDAL, BRAKE

26H-27200-00-39

Unavailable

68

COLLAR

90387-06701-00

Unavailable

69

NUT, CROWN(3BM)

90176-10073-00

Unavailable

70

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable

71

ROD 1

26H-27247-01-00

Unavailable

72

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

73

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

74

NUT

90179-08437-00

Unavailable

75

. NUT

95380-08700-00

Unavailable

76

PIN

90249-08172-00

Unavailable

77

BOSS, BRAKE PEDAL

26H-27243-00-00

Unavailable

78

BOLT, HEXAGON (462)

90101-06291-00

Unavailable

79

WASHER, SPRING

92995-06100-00

Unavailable

80

SHAFT, BRAKE PEDAL

26H-27212-00-00

Unavailable

81

ROD, BRAKE

26H-27231-00-00

Unavailable

82

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

83

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

84

PIN, COTTER

91490-20025-00

Unavailable

85

BOLT, HEXAGON

97017-06020-00

Unavailable

86

NUT, HEXAGON (371 447)

90170-06184-00

Unavailable

87

SPRING, TORSION

90508-32590-00

Unavailable

88

PLATE, FOOTREST

15R-27415-00-00

Unavailable

89

BOLT, FLANGE

95023-10050-00

Unavailable
