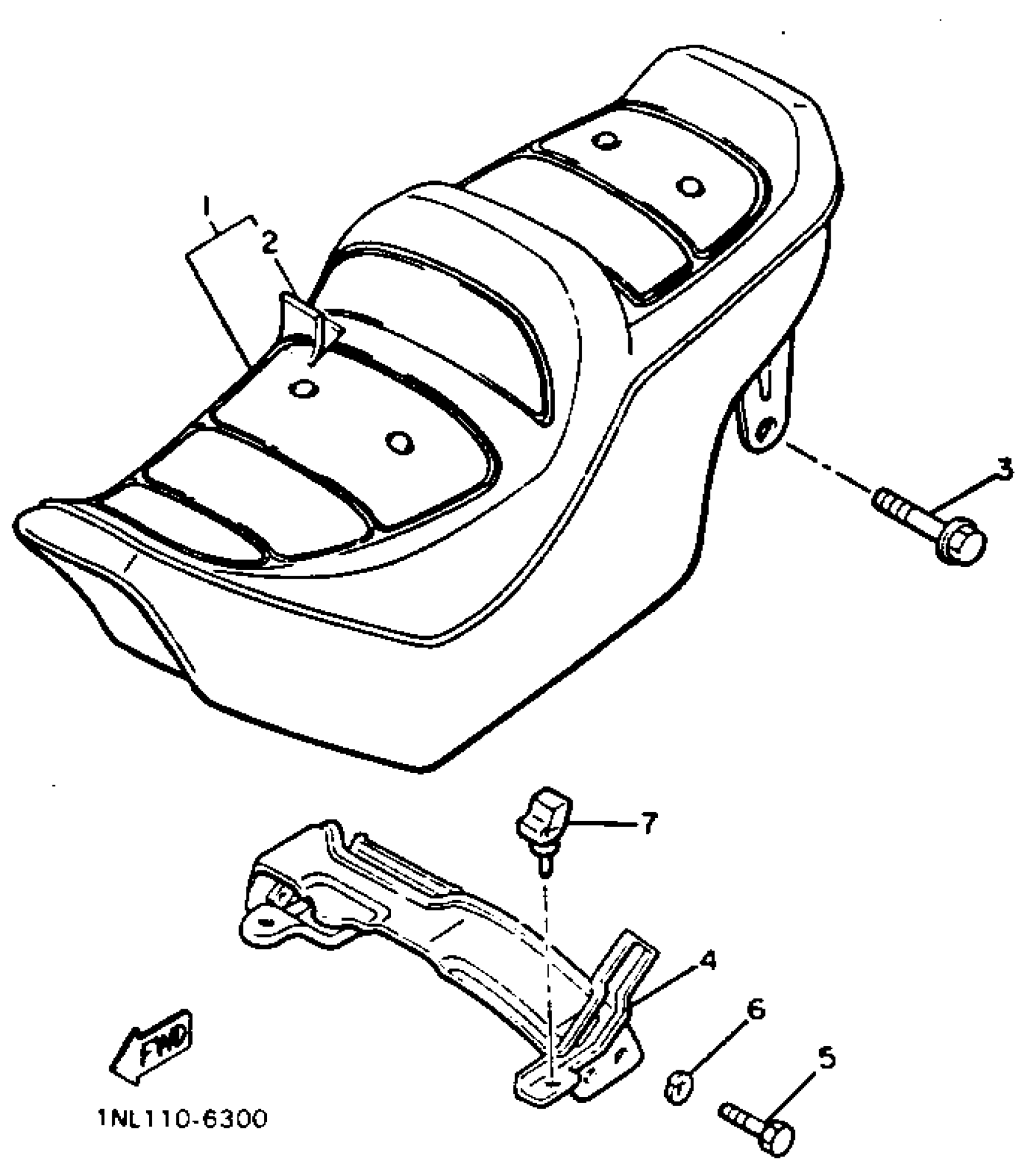

Yamaha XVZ13DUC (VENTURE ROYALE CA) 1988 SEAT Diagram

#

Description

Price

1

DOUBLE SEAT ASY

3JJ-24730-10-00

Unavailable

1

DOUBLE SEAT ASSEMBLY (41R-W2472-10-00)

3JJ-24730-20-00

Unavailable

2

SEAT COVER ASSY

3JJ-2477A-10-00

Unavailable

2

. SEAT COVER ASSEMBLY

1VE-2477A-00-00

Unavailable

3

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

4

STAY, seat

26H-2471A-02-00

Unavailable

5

BOLT (661)

97013-06012-00

$5.60

6

WASHER, SPRING

92995-06100-00

Unavailable

7

DAMPER, seat

26H-24747-00-00

Unavailable
