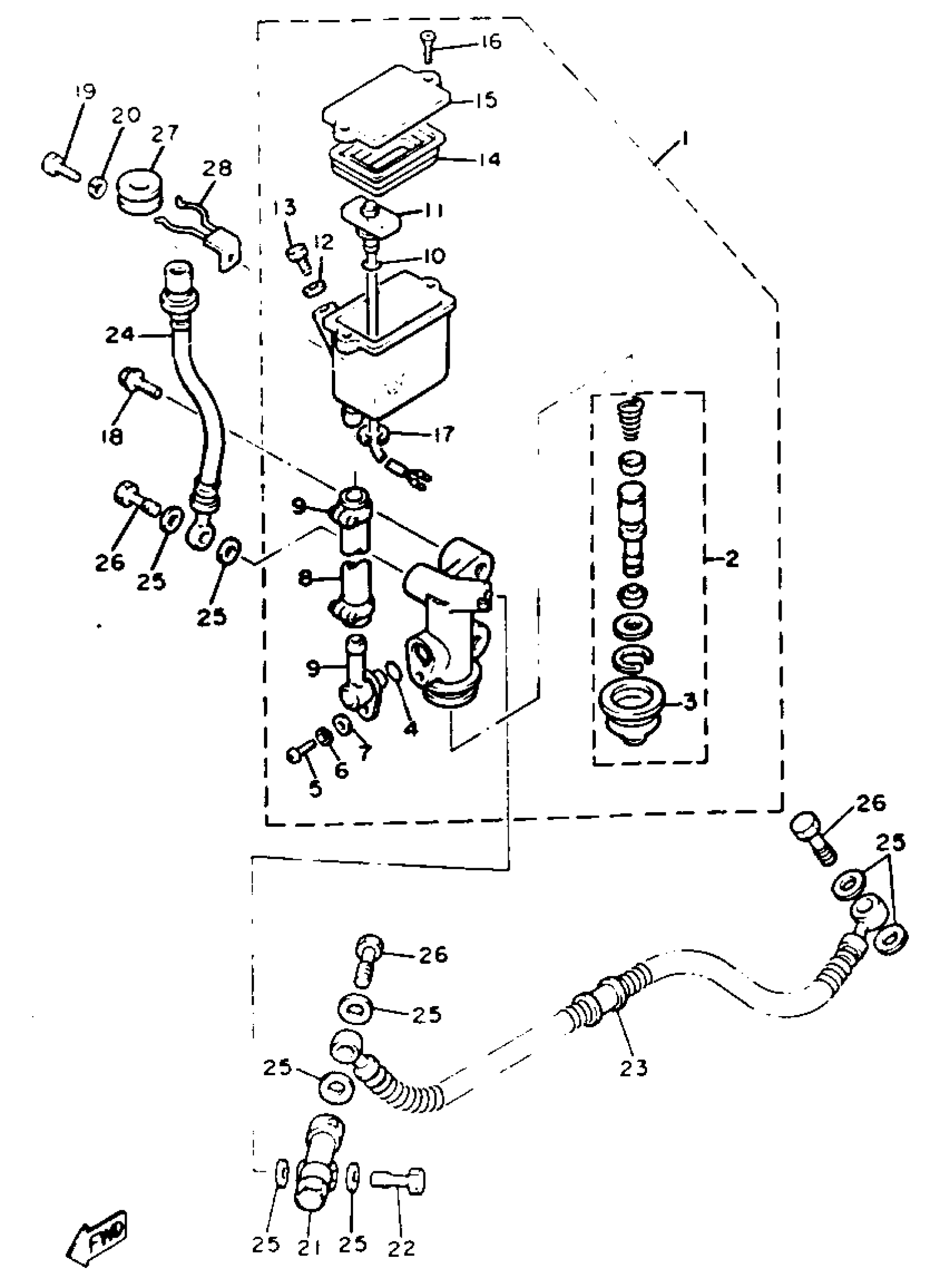

Yamaha XVZ13DUC (VENTURE ROYALE CA) 1988 REAR MASTER CYLINDER Diagram

#

Description
Price

1

MSTR CYLINDER ASY

3JT-2583V-00-00

Unavailable

2

CYLINDER KIT, MASTER

4W1-W0041-00-00

$100.99

3

. BOOT, master cylinder

1J3-25862-51-00

Unavailable

4

O-RING (22U)

93210-15566-00

$7.49

5

SCREW, PAN HEAD

98511-04012-00

Unavailable

6

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

7

WASHER, PLAIN (646)

92990-04600-00

$5.99

8

. HOSE, reservoir

26H-25895-50-00

Unavailable

9

BAND, HOSE 11

90601-11062-00

Unavailable

10

. O-RING

93210-08493-00

Unavailable

11

. LEAD SWITCH ASS''Y

5G2-85702-00-00

Unavailable

12

. WASHER, plate

90201-10610-00

Unavailable

13

. SCREW, hexagon

90153-10015-00

Unavailable

14

. DIAPHRAGM, reservoir

1NL-25854-50-00

Unavailable

15

CAP, RESERVOIR

1NL-25852-51-00

Unavailable

16

SCREW, FLAT

98707-04012-00

Unavailable

17

CIRCLIP(J51)

99080-09600-00

Unavailable

18

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

19

BOLT, HEXAGON

97017-06020-00

Unavailable

20

WASHER, SPRING

92907-06100-00

Unavailable

21

VALVE, proportioning

1NL-25884-00-00

Unavailable

22

BOLT, UNION

90401-10038-00

Unavailable

23

HS,BRKE 1

99999-02792-00

Unavailable

24

HOSE,BRAKE

99999-02793-00

Unavailable

25

WASHER, PLATE(481)

90201-10118-00

Unavailable

26

BOLT, UNION(3GM)

90401-10159-00

Unavailable

27

PROTECTOR, BRAKE HOSE

341-25881-00-00

Unavailable

28

HOLDER, brake hose

26H-25887-50-00

Unavailable
