1988 Yamaha Venture Royale CA (XVZ13DUC) Fairing Diagram

← All diagrams

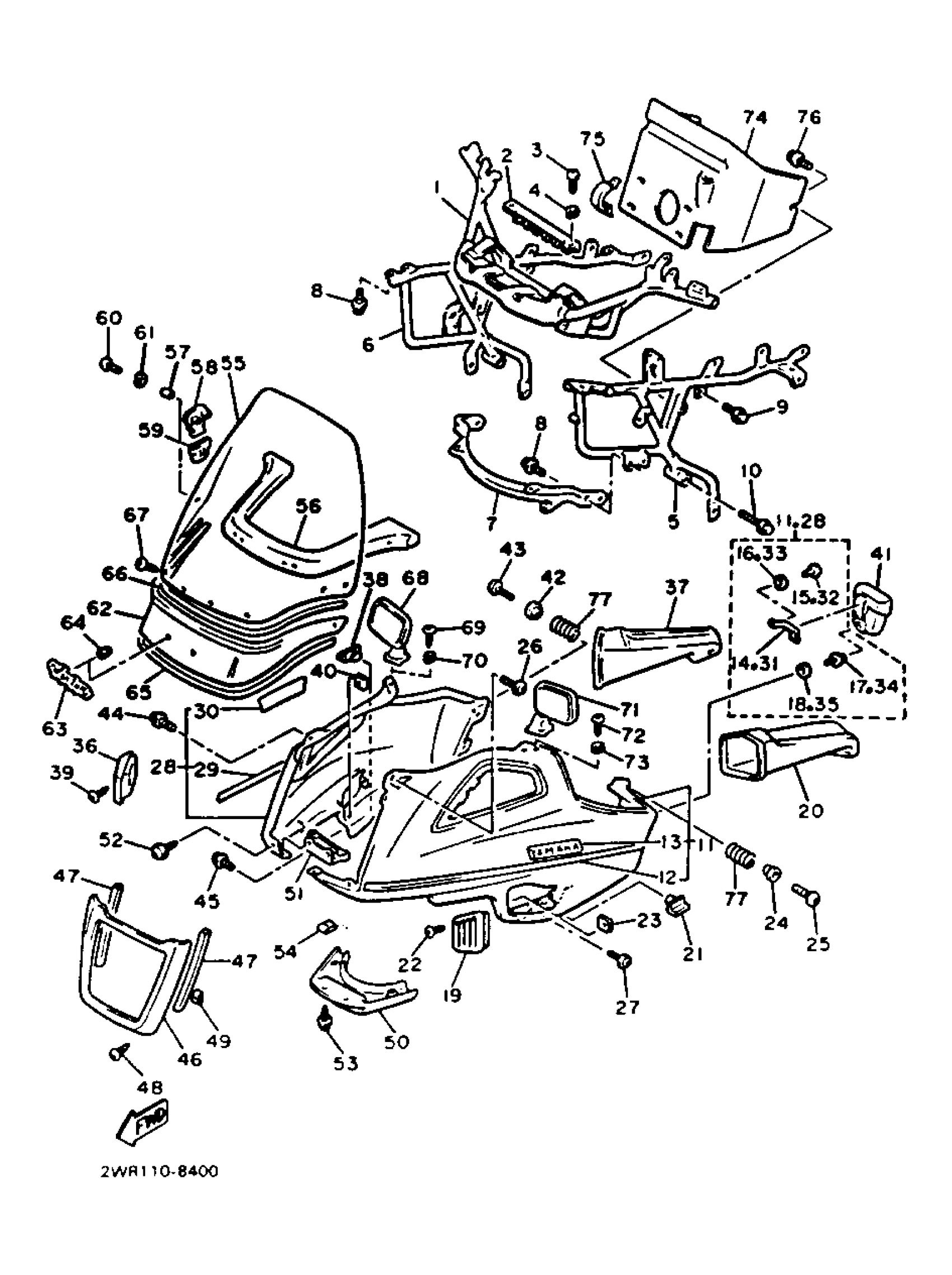

Find the part on the Fairing diagram for your 1988 Yamaha Venture Royale CA (XVZ13DUC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Yamaha Venture Royale CA (XVZ13DUC) Fairing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAY 1

1NL-28356-00-00

1
Out of stock

2

BRACKET, relay

41R-2134E-01-00

1
Out of stock

3

SCREW, PAN

98517-06012-00

1
Out of stock

4

WASHER, SPRING

92907-06100-00

1
Out of stock

5

STAY, leg shield

1NL-28322-00-00

1
Out of stock

6

STAY, leg shield

1NL-28332-00-00

1
Out of stock

7

STAY 2

26H-28359-01-00

1
Out of stock

8

BOLT, FLANGE

95812-06010-00

1
Out of stock

9

BOLT, FLANGE

95817-08012-00

1
Out of stock

10

BOLT, FLANGE

95817-08050-00

1
Out of stock

11

BODY, front upper 1 (2WR-Y283G-00-7Y)

2WR-Y283G-01-7Y

1
Out of stock

11

BODY, FRONT UPPER 1

2WR-Y283G-01-8Y

1
Out of stock

12

. GRAPHIC 1

2WR-28391-00-00

1
Out of stock

12

. GRAPHIC, COWLING 1

2WR-28391-10-00

1
Out of stock

13

EMBLEM

26H-28328-00-00

1
Out of stock

14

. BRACKET, pouch

59G-28283-01-00

1
Out of stock

15

RIVET, BLIND

90267-32019-00

1
Out of stock

16

WASHER,PLAIN

92990-03200-00

—
Out of stock

17

HOOK

59J-28379-00-00

1
Out of stock

18

WASHER, PLATE

90201-04027-00

—
Out of stock

19

GRILL, air intake 1

26H-2837N-01-33

1
Out of stock

20

DUCT 3

26H-2838T-01-00

1
Out of stock

21

DAMPER

26H-28372-00-00

1
Out of stock

22

SCREW, TAPPING (5G2)

90164-04006-00

—
Out of stock

23

NUT, SPRING (26H)

90183-04027-00

—
Out of stock

24

COLLAR

90387-06107-00

—
Out of stock

25

SCREW, PAN

98507-06014-00

—
Out of stock

26

SCREW, W/WASHER (4L0)

90159-06060-00

—
Out of stock

27

SCREW, WITH WASHER(1NL)

90159-05134-00

—
Out of stock

28

BODY, front upper 2 (2WR-Y283H-00-7Y)

2WR-Y283H-01-7Y

1
Out of stock

28

BODY, FRONT UPPER 2

2WR-Y283H-01-8Y

1
Out of stock

29

. GRAPHIC 2

2WR-28392-00-00

1
Out of stock

29

. GRAPHIC, COWLING 2

2WR-28392-10-00

1
Out of stock

30

EMBLEM

26H-28338-00-00

1
Out of stock

31

. BRACKET, pouch

59G-28283-01-00

1
Out of stock

32

RIVET, BLIND

90267-32019-00

1
Out of stock

33

WASHER,PLAIN

92990-03200-00

—
Out of stock

34

HOOK

59J-28379-00-00

1
Out of stock

35

WASHER, PLATE

90201-04027-00

—
Out of stock

36

GRILL, air intake 2

26H-2837R-01-33

1
Out of stock

37

DUCT 4

26H-2838U-01-00

1
Out of stock

38

DAMPER

26H-28372-00-00

1
Out of stock

39

SCREW, TAPPING (5G2)

90164-04006-00

—
Out of stock

40

NUT, SPRING (26H)

90183-04027-00

—
Out of stock

41

POUCH, COWLING

3JJ-28281-00-00

1
Out of stock

41

POUCH, COWLING

1NL-28281-10-00

1
Out of stock

42

COLLAR

90387-06107-00

—
Out of stock

43

SCREW, PAN

98507-06014-00

—
Out of stock

44

SCREW, W/WASHER (4L0)

90159-06060-00

—
Out of stock

45

SCREW, WITH WASHER(1NL)

90159-05134-00

—
Out of stock

46

RIM, headlight

1NL-2835A-00-EH

1
Out of stock

46

RIM, headlight

1NL-2835A-00-R0

1
Out of stock

47

PAD

1NL-28378-00-00

1
Out of stock

48

SCREW, TAPPING (5G2)

90164-04006-00

—
Out of stock

49

NUT, SPRING (26H)

90183-04027-00

—
Out of stock

50

GRILL, AIR INTAKE 3

26H-2837T-00-JY

1
Out of stock

50

GRILL, air intake 3

26H-2837T-00-TL

1
Out of stock

51

PLATE

1NL-28336-00-00

1
Out of stock

52

SCREW, WITH WASHER(1NL)

90159-05134-00

—
Out of stock

53

SCREW, WITH WASHER(1NL)

90159-05134-00

—
Out of stock

54

NUT, SPRING

90183-051A0-00

—
Out of stock

55

SCREEN (41R-2837U-00)

ABA-26H01-11-00

1
Out of stock

56

MOLE 1

26H-28345-00-00

1
Out of stock

57

COLLAR

90387-056J6-00

1
Out of stock

58

PLATE, front

1NL-28361-00-00

1
Out of stock

59

DAMPER, SIDE COVER

2N4-21717-00-00

—
Out of stock

60

SCREW, PAN HEAD(JJ6)

98507-05016-00

—
Out of stock

61

WASHER(3SX)

92907-05100-00

—
Out of stock

62

MOLE 2

1NL-28346-00-00

1
Out of stock

63

EMBLEM 4 (26H-21784-00)

26H-21783-00-00

1
Out of stock

64

GROMMET(1KT)

90480-01445-00

—
Out of stock

65

MOLD 3

1NL-28347-01-00

1
Out of stock

66

NOLE 4

1NL-28348-01-00

1
Out of stock

67

SCREW (26H)

90149-05185-00

—
Out of stock

68

REAR VIEW MIRROR ASSY (RIGHT)

26H-26290-20-00

1
Out of stock

69

SCREW, PAN HEAD

98580-05020-00

1
Out of stock

70

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

71

REAR VIEW MIRROR ASSY (LEFT)

26H-26290-30-00

1
Out of stock

72

SCREW, PAN HEAD

98580-05020-00

1
Out of stock

73

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

74

PANEL, inner 3

41V-2836M-00-00

1
Out of stock

75

BRACKET

1NL-28366-00-00

1
Out of stock

76

BOLT, WITH WASHER(55K)

90119-06117-00

—
Out of stock

77

SPRING, compression

90501-142E6-00

1
Out of stock
