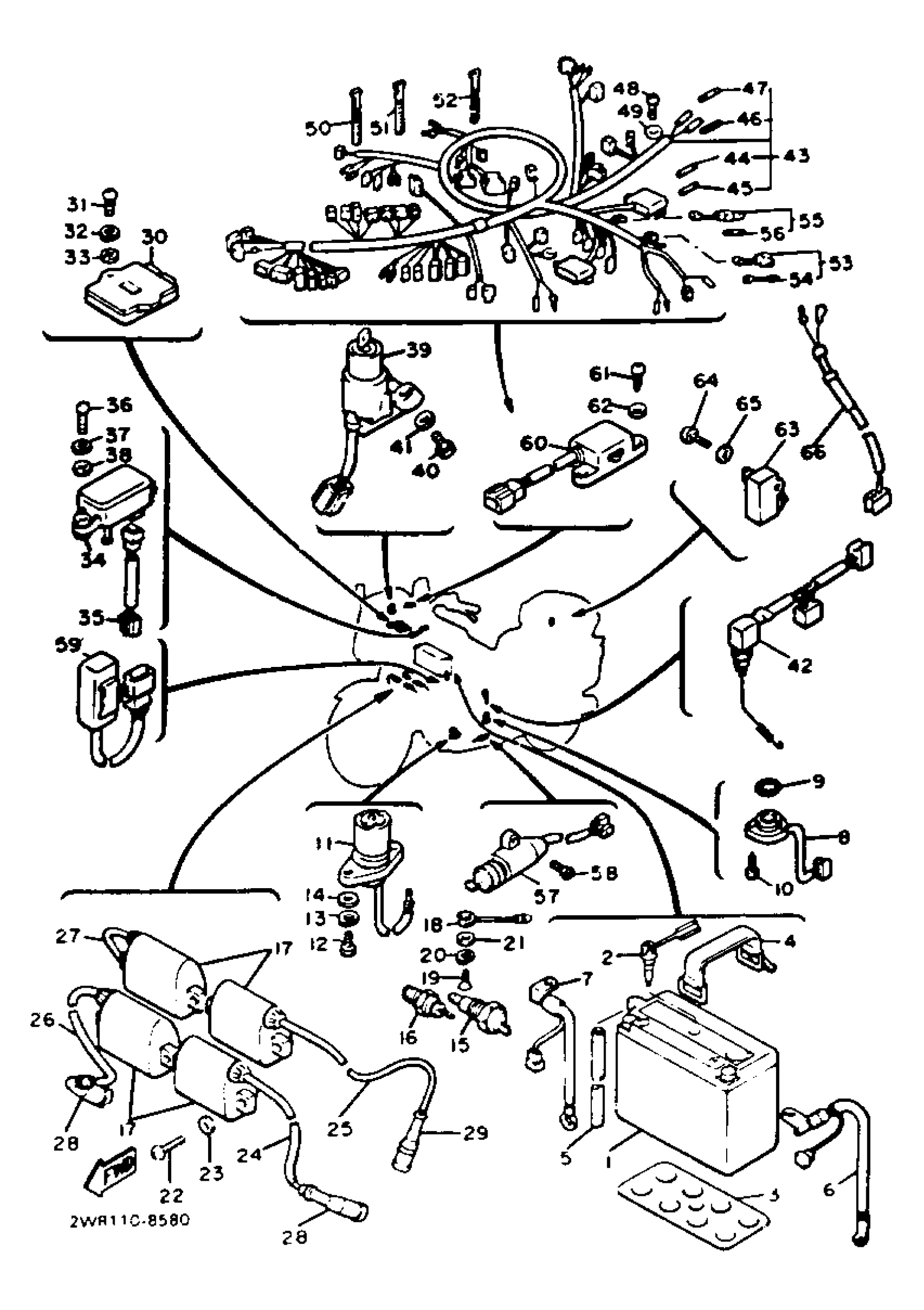

Yamaha XVZ13DUC (VENTURE ROYALE CA) 1988 ELECTRICAL 2 Diagram

#

Description
Price

1

SY50N18LAT YUASA BATTERY

SY5-0N18L-A0-00

Unavailable

2

SENDER, battery

26H-82120-00-00

Unavailable

3

SEAT, battery

26H-82122-00-00

Unavailable

4

BAND, BATTERY

26H-82131-00-00

$23.99

5

HOSE

90445-08716-00

Unavailable

6

WIRE, plus lead

26H-82115-00-00

Unavailable

7

WIRE, minus lead

26H-82116-00-00

Unavailable

8

NEUTRAL SWITCH ASY

41R-82540-02-00

Unavailable

9

O-RING (371)

93210-29196-00

$8.49

10

SCREW, FLAT

98707-05012-00

$1.71

11

OIL LVL GAUGE ASSEMBLY

1NL-85720-00-00

Unavailable

12

BOLT, HEXAGON

97017-06020-00

$4.06

13

WASHER, SPRING

92995-06100-00

Unavailable

14

WASHER, PLAIN (646)

92990-06600-00

$2.80

15

THERMO SWITCH ASSY

3LN-82560-01-00

Unavailable

16

THERMO UNIT

11H-83591-00-00

Unavailable

17

IGNITION COIL ASSY

25G-82310-10-00

Unavailable

18

WIRE,EARTH LEAD 1

4NK-83354-00-00

Unavailable

19

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

20

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

22

SCREW PAN HEAD

98580-06020-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

$2.80

24

CORD, high tension 3

1NL-82343-00-00

Unavailable

25

CORD, high tension 2

41R-82342-00-00

Unavailable

26

CORD, high tension 3

1NL-82343-00-00

Unavailable

27

CORD, high tension 4

41R-82344-00-00

Unavailable

28

PLUG CAP ASSY

3NS-82370-00-00

Unavailable

29

PLUG CAP ASSY

4XY-82370-00-00

Unavailable

30

IGNITOR UNIT ASSY

41R-82305-09-00

Unavailable

31

SCREW, PAN HEAD

98503-06015-00

Unavailable

32

WASHER, SPRING

92995-06100-00

Unavailable

33

WASHER, PLATE

90201-06M08-00

Unavailable

34

SENSOR, PRESSURE

22N-82380-10-00

Unavailable

35

WIRE, sub lead

26H-82309-00-00

Unavailable

36

SCREW PAN HEAD

98580-06020-00

Unavailable

37

WASHER, SPRING

92995-06100-00

Unavailable

38

WASHER, PLATE

90201-06020-00

Unavailable

39

MAIN SWITCH STEERING LOCK

1NL-82501-01-00

Unavailable

40

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

41

WASHER, PLAIN (646)

92990-06600-00

$2.80

42

STOP SWITCH ASS''Y

2WR-82530-00-00

Unavailable

43

WIRE HARNESS ASSEMBLY

1NL-82590-01-00

Unavailable

44

FUSE (12V 5A)

5G2-82151-00-00

Unavailable

45

FUSE

1A0-82151-00-00

Unavailable

46

FUSE (12V-15A)

4X7-82151-00-00

Unavailable

47

FUSE

1A0-82161-00-00

Unavailable

48

SCREW, TAPPING

97780-50620-00

Unavailable

49

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

50

BAND, SWITCH CORD

437-83936-11-00

Unavailable

51

BAND, SWITCH CORD

437-83936-01-00

Unavailable

52

BINDER (XL540J)

7H9-87188-00-00

Unavailable

53

FUSE HOLDER ASS''Y

26H-82150-01-00

Unavailable

54

FUSE (40A)

707-82151-00-00

Unavailable

55

. FUSE HOLDER ASSEMBLY

4X7-82150-00-00

Unavailable

56

FUSE

1A0-82161-00-00

Unavailable

57

SWITCH, side stand

26H-82566-00-00

Unavailable

58

SCREW, FLAT

98707-05016-00

Unavailable

59

RESERVE LIGHTING UNIT ASSY

10M-84308-00-00

Unavailable

60

HAZARD FLASHER SWITCH

41V-83362-00-00

Unavailable

61

SCREW, OVAL HEAD TAPPING

97780-40112-00

Unavailable

62

YBS66-4 WASHER, PLAIN

92990-04200-00

Unavailable

63

SWITCH, ALARM

J45-82503-01-00

Unavailable

64

SCREW, PAN HEAD

98507-04018-00

Unavailable

65

WASHER(JF2)

92907-04600-00

Unavailable

66

WIRE, lead

1NL-82509-00-00

Unavailable
