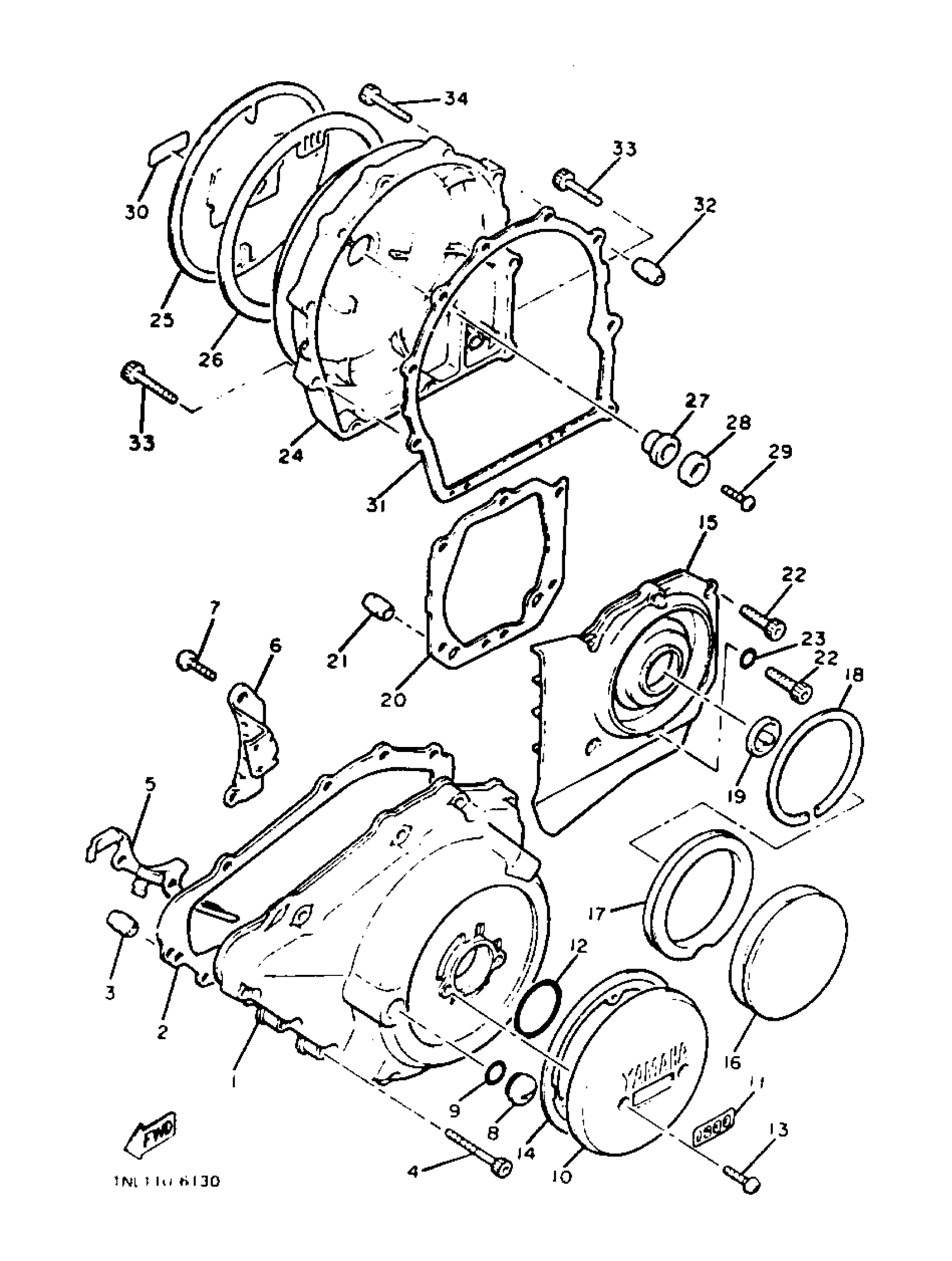

Yamaha XVZ13DUC (VENTURE ROYALE CA) 1988 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, crankcase 1

26H-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER 1

3JP-15451-01-00

$27.99

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

BOLT, SOCKET

91314-06030-00

$8.49

5

CLAMP

90465-06234-00

Unavailable

6

CLAMP (26H)

90465-08220-00

Unavailable

7

SCREW PAN HEAD

98580-06010-00

$8.49

8

PLUG, STRAIGHT SCREW (5H0)

90340-14068-00

$18.99

9

O-RING (2H9)

93210-14369-00

$7.49

10

COVER, cap 2

26H-15427-01-00

Unavailable

11

EMBLEM

1NL-15447-00-00

Unavailable

12

O-RING (256)

93210-45150-00

$9.49

13

SCREW, FLAT HEAD

98780-06016-00

Unavailable

14

GASKET 1

26H-15455-01-00

Unavailable

15

COVER,CRANKCASE 2

26H-15421-04-00

Unavailable

16

COVER, chain case 2

26H-15428-00-00

Unavailable

17

DAMPER 4

26H-15337-01-00

Unavailable

18

CLIP (26H)

90468-98132-00

Unavailable

19

DAMPER, ENGINE MOUNT 5

26H-15338-00-00

Unavailable

20

GASKET, CRANKCASE COVER 2

3JP-15461-01-00

Unavailable

21

PIN, DOWEL(3VD)

99530-10114-00

$2.55

22

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

23

GASKET 256113960000

90430-06014-00

Unavailable

24

COVER,CRANKCASE 3

1NL-15431-00-00

Unavailable

25

COVER, chain case

26H-15418-01-00

Unavailable

26

RING, RUBBER

26H-15449-00-00

Unavailable

27

GROMMET

4H7-15486-00-00

Unavailable

28

WASHER (4H7)

90209-06096-00

Unavailable

29

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

30

EMBLEM

1NL-15447-00-00

Unavailable

31

GASKET, CRANKCASE COVER 3

3JP-15462-01-00

Unavailable

32

PIN, DOWEL(3VD)

99530-10114-00

$2.55

33

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

34

BOLT, SOCKET

91314-06035-00

Unavailable
