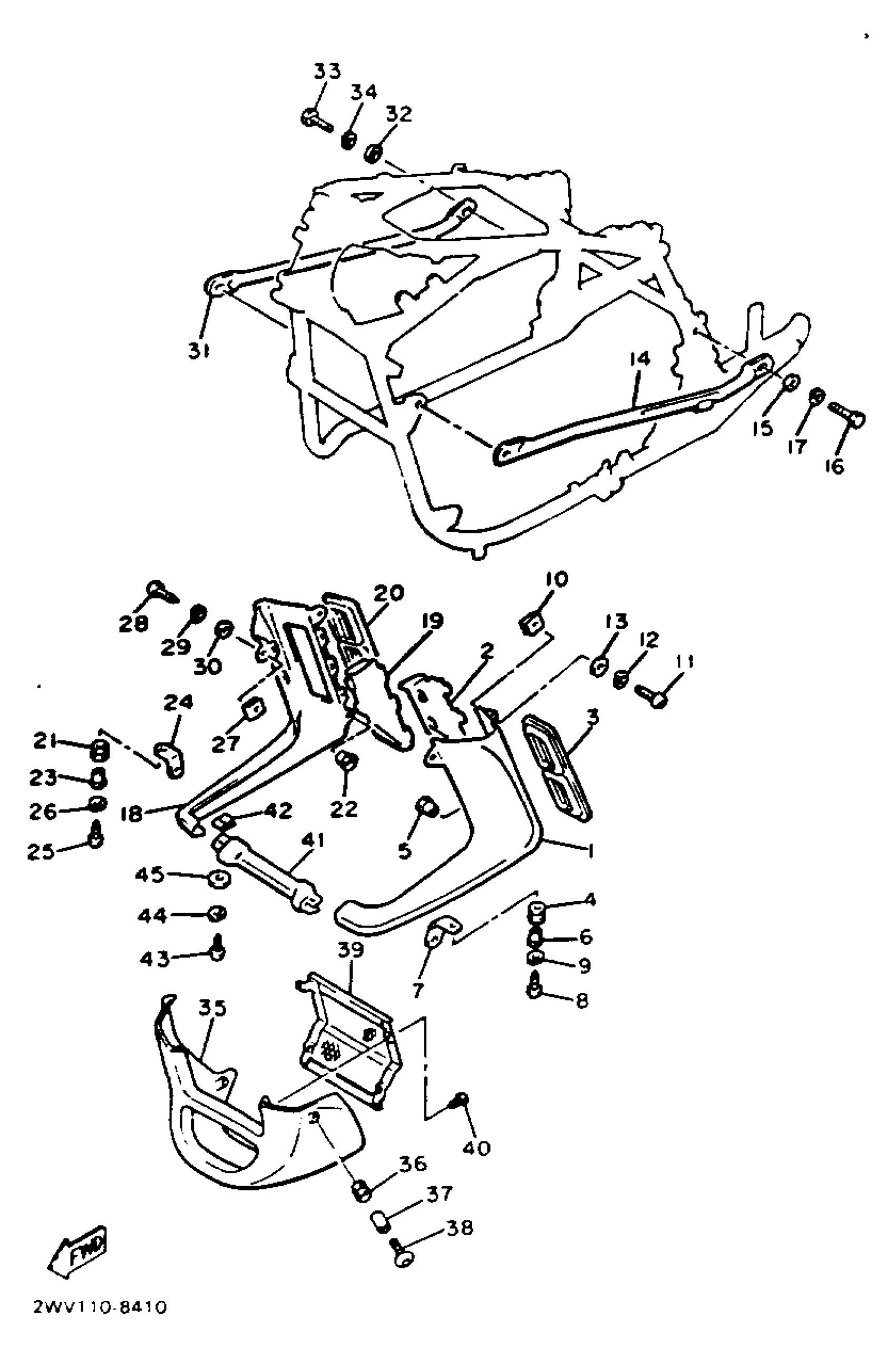

Yamaha XVZ13DUC (VENTURE ROYALE CA) 1988 COWLING 2 Diagram
#
1
BODY, FRONT LOWER 1
26H-2835J-01-JY
Unavailable
1
BODY, front lower 1
26H-2835J-01-TL
Unavailable
2
PANEL, inner 4
26H-2836N-02-00
Unavailable
9
WASHER, SPRING
92995-06100-00
Unavailable
12
WASHER, SPRING
92995-06100-00
Unavailable
14
. STAY 2
41R-28357-00-00
Unavailable
15
WASHER, PLAIN
92990-08200-00
Unavailable
18
BODY, FRONT LOWER 2
26H-2835K-01-JY
Unavailable
18
BODY, front lower 2
26H-2835K-01-TL
Unavailable
19
PANEL, inner 5
26H-2836R-01-00
Unavailable
20
GRILL, air outlet 4
26H-2837Y-00-00
Unavailable
21
GROMMET (1E6)
90480-15058-00
Unavailable
22
GROMMET
90480-08371-00
Unavailable
23
COLLAR (4N0)
90387-071E0-00
Unavailable
24
BRACKET 23
26H-2833Y-02-00
Unavailable
26
WASHER, SPRING
92995-06100-00
Unavailable
29
WASHER, SPRING
92995-06100-00
Unavailable
31
. STAY 3
41R-28358-00-00
Unavailable
32
WASHER, PLAIN
92990-08200-00
Unavailable
35
COVER, LOWER
1NL-28385-00-JY
Unavailable
35
COVER, lower
1NL-28385-00-TL
Unavailable
36
GROMMET (462)
90480-13018-00
Unavailable
37
COLLAR(47X)
90387-060G7-00
Unavailable
38
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
39
COVER
1NL-28365-00-00
Unavailable
40
SCREW, PAN TAP.2 SLIT
97707-40610-00
Unavailable
41
FIN
26H-2835M-00-JY
Unavailable
41
FIN
26H-2835M-00-TL
Unavailable
43
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
44
WASHER, SPRING
92907-06100-00
Unavailable
45
WASHER(6TA)
92907-06600-00
Unavailable
