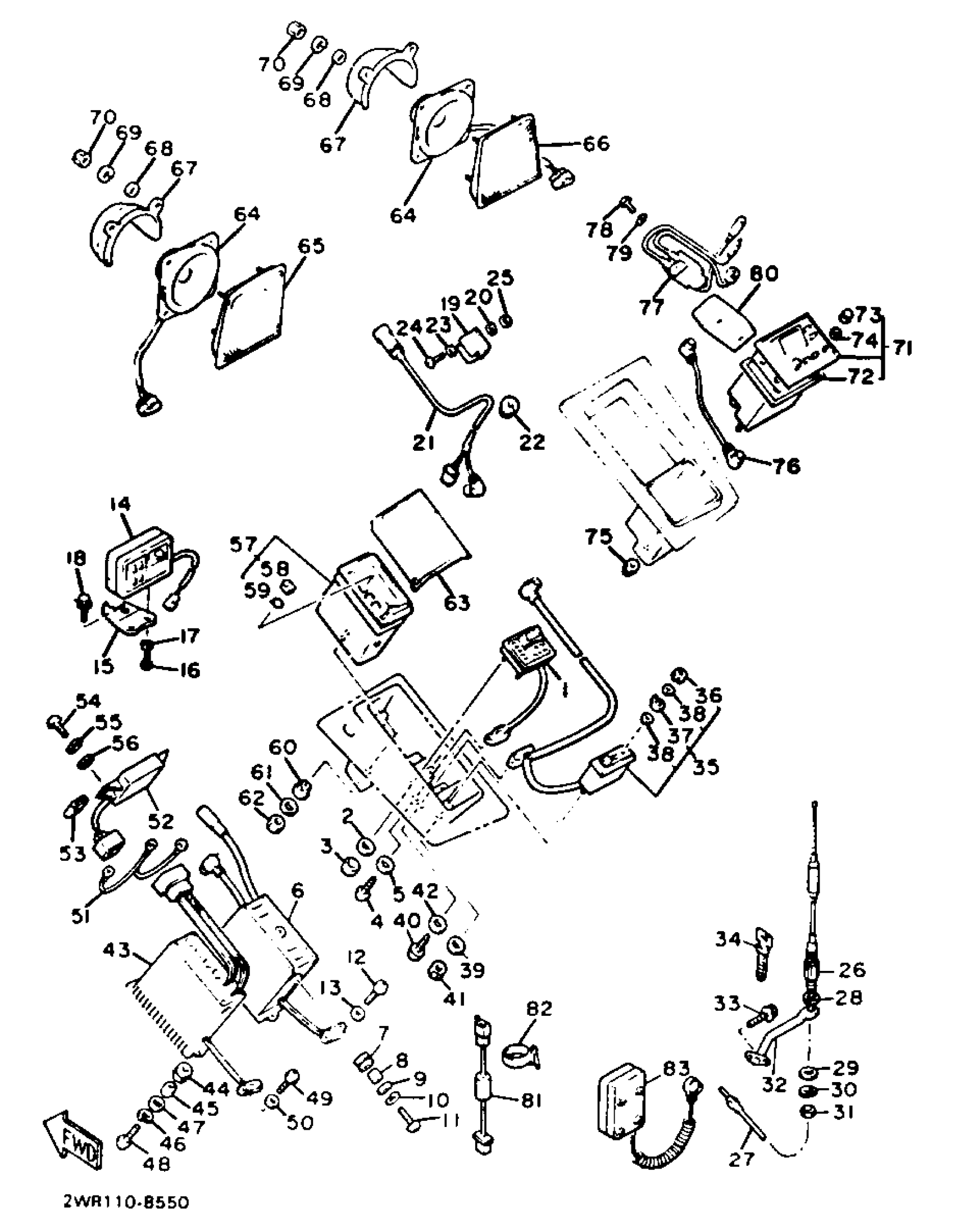

Yamaha XVZ13DUC (VENTURE ROYALE CA) 1988 AUDIO 1 Diagram
#
1
CONTROL, tuner
26H-88121-01-00
Unavailable
4
. SCREW, TAPPING
97702-30512-00
Unavailable
6
TUNER
26H-88122-02-00
Unavailable
7
. GROMMET
90480-09364-00
Unavailable
8
. COLLAR
90387-046N2-00
Unavailable
9
WASHER, plate
90201-045K9-00
Unavailable
11
SCREW, PAN HEAD
98511-04012-00
Unavailable
14
REMOTE CONTROL 1
1NL-88168-00-00
Unavailable
15
BRACKET, remote control
1NL-88178-00-00
Unavailable
16
GASKET, EXHAUST
98507-05008-00
Unavailable
17
WASHER(1RW)
92907-05600-00
Unavailable
18
BOLT, FLANGE
95026-10016-00
Unavailable
19
HOLDER, CONNECTOR
4XY-88195-01-00
Unavailable
20
COLLAR
90387-041K1-00
Unavailable
21
CORD, head set 1
1NL-88196-00-00
Unavailable
22
CAP
1NL-28349-00-00
Unavailable
23
WASHER, PLATE
90201-042E0-00
Unavailable
24
SCREW, PAN HEAD
98507-04018-00
Unavailable
25
NUT, FLANGE
95707-04500-00
Unavailable
26
POLE, ANTENNA
26H-88143-09-00
Unavailable
27
CABLE
26H-88146-00-00
Unavailable
28
WASHER, PLATE(4BP)
90202-17211-00
Unavailable
29
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
30
YBS67-12 WASHER,SPRING
92990-12100-00
Unavailable
31
NUT
90170-12329-00
Unavailable
32
BRACKET, antenna
1NL-88144-00-00
Unavailable
33
BOLT, FLANGE
95817-06012-00
Unavailable
34
BAND, SWITCH CORD
437-83936-01-00
Unavailable
35
CONTROL, amp
26H-88131-02-00
Unavailable
36
BUTTON 1
26H-88137-00-00
Unavailable
37
KNOB 2
26H-88138-00-00
Unavailable
38
WASHER, gum
26H-88139-00-00
Unavailable
41
. SCREW, TAPPING
97702-30512-00
Unavailable
43
AMP. POWER
26H-88132-01-00
Unavailable
44
. GROMMET
90480-09364-00
Unavailable
45
. COLLAR
90387-046N2-00
Unavailable
47
WASHER, plate
90201-045K9-00
Unavailable
48
SCREW, PAN HEAD
98511-04012-00
Unavailable
51
. WIRE, earth lead
26H-8232Y-00-00
Unavailable
52
FILTER, noise
1NL-88188-00-00
Unavailable
53
NUT, SPRING
90183-051A0-00
Unavailable
54
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
55
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
56
. WASHER, PLAIN
92990-05200-00
Unavailable
57
CASSETTE DECK ASS''Y
26H-88150-01-00
Unavailable
58
BUTTON 1
26H-88157-00-00
Unavailable
59
O-RING
26H-88159-00-00
Unavailable
60
. DAMPER 2
26H-28227-00-00
Unavailable
61
WASHER, PLATE
90201-05023-00
Unavailable
62
NUT, HEXAGON (663)
95380-05600-00
Unavailable
63
. COVER, cassette deck
26H-88153-00-00
Unavailable
64
. SPEAKER 1
26H-88161-00-00
Unavailable
65
GRILLE, speaker 1
26H-88163-00-00
Unavailable
66
GRILLE, speaker 2
26H-88173-00-00
Unavailable
67
BOX, speaker 1
26H-88162-00-00
Unavailable
68
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
69
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
70
NUT, HEXAGON (663)
95380-05600-00
Unavailable
71
CB RADIO ASS''Y
59J-88180-01-00
Unavailable
72
. GASKET, cb
59J-8818E-00-00
Unavailable
73
. KNOB, cb
59J-8818F-00-00
Unavailable
74
. PACKING, cb
59J-8818G-00-00
Unavailable
75
NUT, FLANGE
95707-04500-00
Unavailable
76
CORD, cb
59J-88186-00-00
Unavailable
77
MATCHING BOX ASS''Y
1NL-88185-00-00
Unavailable
78
SCREW, PAN HEAD (E56)
98580-04010-00
Unavailable
80
COVER, matching box
59J-8818A-00-00
Unavailable
81
FILTER, noise
59J-88188-00-00
Unavailable
82
BAND
1UA-82591-00-00
Unavailable
83
REMOTE CONTROL 1
1NL-88169-00-00
Unavailable
