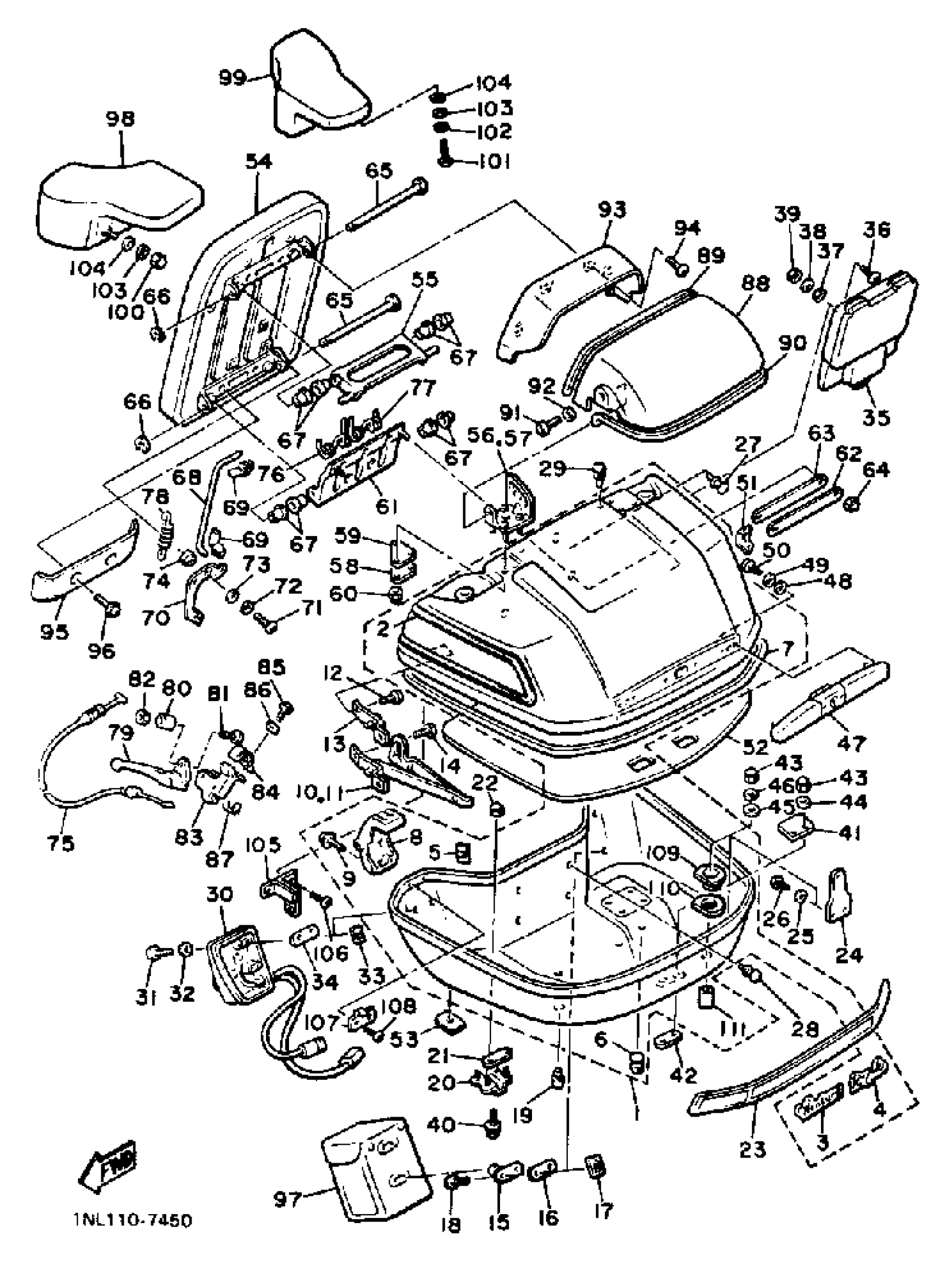

Yamaha XVZ13DSC (VENTURE ROYALE CA) 1986 TRAVELBAG Diagram
#
1
TRAVEL TRUNK
1NL-Y284E-00-1X
Unavailable
1
TRAVEL TRUNK
1NL-Y284E-10-2X
Unavailable
1
TRAVEL TRUNK
1NL-Y284E-20-3X
Unavailable
1
TRAVEL TRUNK
1NL-Y284E-30-4X
Unavailable
2
. GRAPHIC SET, TRUNK TRAVEL TRUNK
1NL-2840H-00-00
Unavailable
2
. GRAPHIC SET, TRUNK TRAVEL TRUNK
1NL-2840H-10-00
Unavailable
2
. GRAPHIC SET, TRUNK TRAVEL TRUNK
1NL-2840H-20-00
Unavailable
2
. GRAPHIC SET, TRUNK TRAVEL TRUNK
1NL-2840H-30-00
Unavailable
3
EMBLEM 4 (26H-21784-00)
26H-21783-00-00
Unavailable
4
. EMBLEM 3
31M-2842J-00-00
Unavailable
6
PAD, BATTERY
(5G7-82121-00-00)
Unavailable
7
SEAL 5
54K-2847F-00-00
Unavailable
8
. HINGE 2
54K-2845E-00-00
Unavailable
9
. SCREW, WITH WASHER
90159-05132-00
Unavailable
10
STOPPER, open
1NL-2845L-00-00
Unavailable
11
STOPPER, open
1NL-2845M-00-00
Unavailable
12
SCREW, tapping (97701-30106)
97701-30606-00
Unavailable
13
BRACKET, trunk stopper
1NL-2849R-00-00
Unavailable
14
SCREW, tapping (97701-30106)
97701-30606-00
Unavailable
15
. HOOK
54K-2844L-00-00
Unavailable
16
. SEAL 7
54K-2849F-00-00
Unavailable
17
. NUT, special
54K-2849M-00-00
Unavailable
18
SCREW, TAPPING
97707-40710-00
Unavailable
19
GROMMET (397)
90480-10068-00
Unavailable
20
BRACKET 3
1NL-28476-00-00
Unavailable
21
PLATE, rubber 3
1NL-28485-00-00
Unavailable
22
NUT, CAP
95307-05800-00
Unavailable
23
. REAR REFLECTOR ASS''Y
54K-85140-00-00
Unavailable
24
. HOOK
54K-28488-00-00
Unavailable
25
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
26
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
27
PLUG(1NL)
90338-07180-00
Unavailable
28
PLUG(1NL)
90338-07180-00
Unavailable
29
. DAMPER, grip
26H-2843A-00-00
Unavailable
30
REMOTE CONTROL BASE ASS''Y
1NL-8816A-00-00
Unavailable
31
SCREW, tapping
90167-40042-00
Unavailable
32
WASHER(JF2)
92907-04600-00
Unavailable
33
. NUT, special
54K-2849M-00-00
Unavailable
34
. SEAL 7
54K-2849F-00-00
Unavailable
35
VANITY MIRROR ASS''Y
1NL-2840U-00-00
Unavailable
36
SCREW, BINDING (8J0)
90154-05005-00
Unavailable
37
WASHER, PLATE (26H)
90202-05147-00
Unavailable
38
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
39
NUT, HEXAGON
95317-05600-00
Unavailable
40
BOLT, FLANGE(2UJ)
95024-06010-00
Unavailable
41
. PLATE 3
54K-28497-00-00
Unavailable
42
. PLATE, rubber 9
54K-2849J-00-00
Unavailable
43
NUT(4MY)
95307-06800-00
Unavailable
44
WASHER, PLATE
90202-06058-00
Unavailable
45
WASHER, PLATE (5E3)
90202-10120-00
Unavailable
46
WASHER, SPRING
92907-06100-00
Unavailable
47
GRIP, SADDLEBAG
54K-28408-00-00
Unavailable
48
WASHER, PLATE
90202-08146-00
Unavailable
49
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
50
GASKET, EXHAUST
98507-05008-00
Unavailable
51
COVER LOCK ASS''Y 2
54K-28493-00-00
Unavailable
52
SEAT
54K-2848H-00-00
Unavailable
53
SEAT 2
1NL-2848K-00-00
Unavailable
54
BACK REST ASSY
3JJ-2840F-00-00
Unavailable
55
HINGE 1
1NL-28444-00-00
Unavailable
56
BRACKET, hinge
1NL-2846M-01-00
Unavailable
57
BRACKET, hinge 2
1NL-2846N-01-00
Unavailable
58
PLATE 5
1NL-2847H-00-00
Unavailable
59
PLATE, rubber 7
1NL-2847J-00-00
Unavailable
60
LEVER
1NL-2841A-01-00
Unavailable
60
NUT, CAP
95307-05800-00
Unavailable
61
BRACKET 4
1NL-28477-01-00
Unavailable
62
PLATE 6
1NL-2849H-00-00
Unavailable
63
PLATE, rubber 6
1NL-2846J-00-00
Unavailable
64
NUT, CAP
95307-05800-00
Unavailable
65
SHAFT 1
1NL-2844M-00-00
Unavailable
66
CIRCLIP(22K)
99080-05600-00
Unavailable
67
BUSHING (J17)
90386-06108-00
Unavailable
68
ROD
1NL-28478-00-00
Unavailable
69
JOINT, cage
1NL-28424-00-00
Unavailable
71
SCREW, PAN HEAD
90157-05M19-00
Unavailable
72
WASHER(3SX)
92907-05100-00
Unavailable
73
WASHER(1RW)
92907-05600-00
Unavailable
74
WASHER (3R8)
90209-06187-00
Unavailable
75
WIRE, adjusting
1NL-2843M-00-00
Unavailable
76
SPRING
1NL-28489-00-00
Unavailable
77
SPRING 2
1NL-2848A-00-00
Unavailable
78
SPRING 214-14683-01
90506-12029-00
Unavailable
79
LEVER, DECOMPRESSION
583-83981-00-00
Unavailable
80
COLLAR, LEVER 1
5BE-83913-00-00
Unavailable
81
SCREW, PAN HEAD
90157-05M19-00
Unavailable
82
NUT, CAP
95307-05800-00
Unavailable
83
HOLDER, lever upper 1
1NL-82912-00-00
Unavailable
84
HOLDER, lever lower 1
1NL-82913-00-00
Unavailable
85
SCREW, PAN
98507-06010-00
Unavailable
86
WASHER(6TA)
92907-06600-00
Unavailable
87
STOPPER
1KH-26257-00-00
Unavailable
88
COVER 1
1NL-2842M-00-EM
Unavailable
88
COVER 1
1NL-2842M-00-JW
Unavailable
88
COVER 1
1NL-2842M-00-NR
Unavailable
88
COVER 1
1NL-2842M-00-TY
Unavailable
89
MOULDING 10
1NL-2844U-00-00
Unavailable
90
MOULDING 10
1NL-2844U-00-00
Unavailable
91
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
92
. WASHER, PLATE
90202-05088-00
Unavailable
93
COVER 2
1NL-2842N-00-00
Unavailable
94
SCREW, OVAL HEAD TAPPING
97780-40112-00
Unavailable
95
COVER 3
1NL-2843J-00-00
Unavailable
96
SCREW, WITH WASHER(1NL)
90159-05134-00
Unavailable
97
POUCH, 2
3JJ-28402-00-00
Unavailable
98
REST, ARM L/H
1NL-2840R-00-00
Unavailable
99
POUCH, 2
3JJ-2840T-00-00
Unavailable
100
NUT, CAP
95307-05800-00
Unavailable
101
SCREW, PAN HEAD
90157-05M19-00
Unavailable
102
WASHER(3SX)
92907-05100-00
Unavailable
103
WASHER, PLATE (26H)
90202-05147-00
Unavailable
104
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
105
TRUNK SWITCH BRKT. 8
1NL-28469-00-00
Unavailable
106
SCREW, TAPPING
97707-30108-00
Unavailable
107
TRUNK SWITCH BRKT. 7
1NL-28468-00-00
Unavailable
108
SCREW, TAPPING
97707-30108-00
Unavailable
109
REINFORCEMENT 4
1NL-2843K-00-00
Unavailable
110
PLATE, rubber 10
1NL-2845K-00-00
Unavailable
111
COLLAR (3H5)
90387-060A3-00
Unavailable
