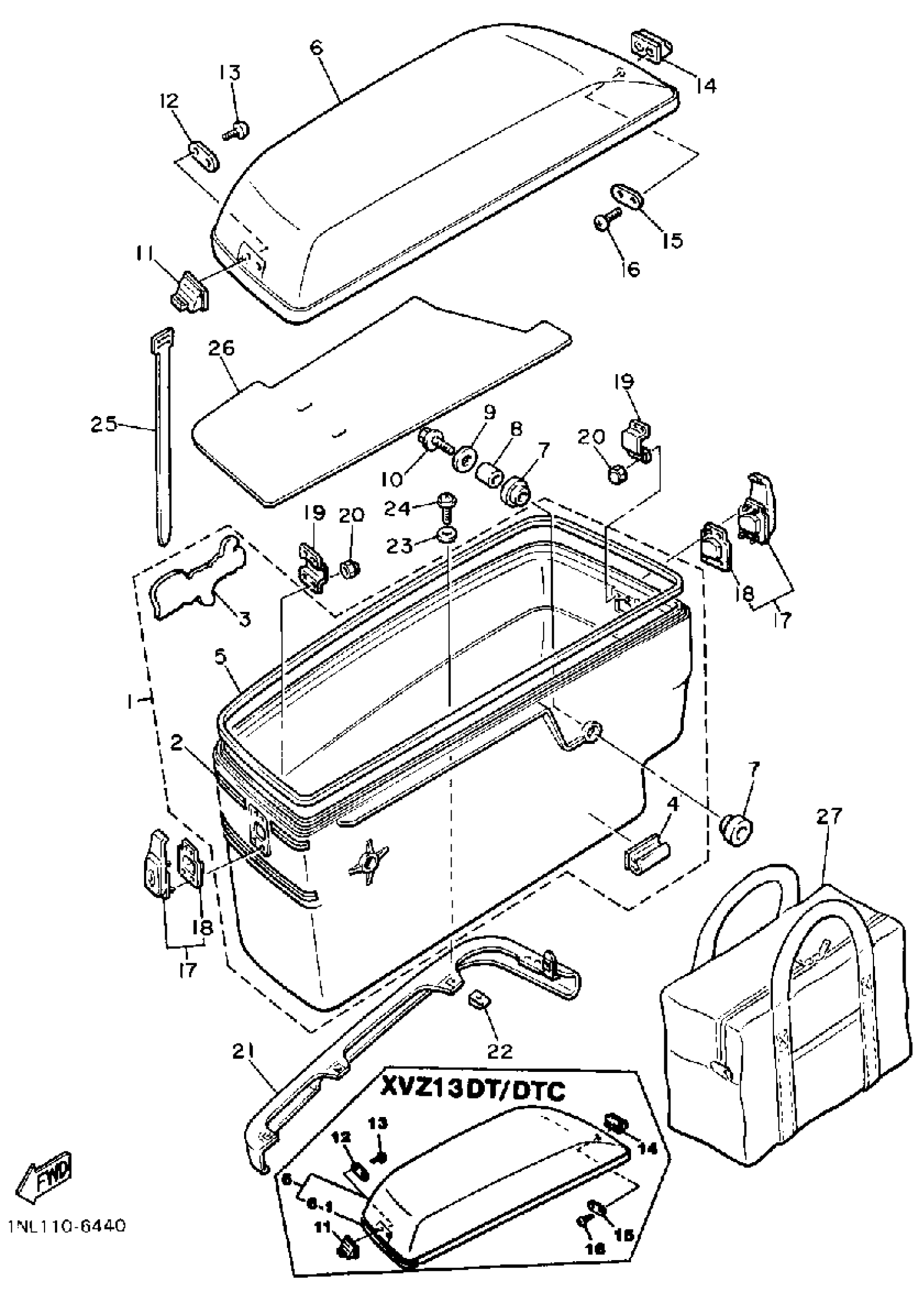

Yamaha XVZ13DSC (VENTURE ROYALE CA) 1986 SADDLEBAG 2 Diagram
#
0
SADDLEBAG GRAPHIC SET 2
1NL-2840G-10-00
Unavailable
1
SADDLEBAG GRAPHIC SET 2
1NL-2840G-00-00
Unavailable
1
SADDLEBAG GRAPHIC SET 2
1NL-2840G-10-00
Unavailable
1
SADDLEBAG 2 (RH)
1NL-Y2848-00-1X
Unavailable
1
SADDLEBAG 2 (RH)
1NL-Y2848-00-EM
Unavailable
1
SADDLEBAG 2 (RH)
1NL-Y2848-00-TY
Unavailable
1
SADDLEBAG 2 (RH)
1NL-Y2848-10-2X
Unavailable
2
GRAPHICSET2, SDLBAG (DIAMOND SILVER)
(1NL-2840J-00-00)
Unavailable
2
GRAPHICSET2, SDLBAG (DIAMOND SILVER)
(1NL-2840J-10-00)
Unavailable
3
. EMBLEM 4
31M-2844A-01-00
Unavailable
5
. SEAL 1
1NL-28428-00-00
Unavailable
6
LID, SADDLEBAG (RH)
1NL-28449-00-JW
Unavailable
6
LID, SADDLEBAG (RH)
1NL-28449-00-NR
Unavailable
6
LID, SADDLEBAG 2
1NL-Y2849-00-EN
Unavailable
6
LID, SADDLEBAG 2
1NL-Y2849-10-TL
Unavailable
7
GROMMET(1NL)
90480-20447-00
Unavailable
8
COLLAR(82M)
90387-084R5-00
Unavailable
9
WASHER (23T)
90201-065G8-00
Unavailable
10
BOLT, FLANGE
95817-06035-00
Unavailable
11
PLATE, rubber 1
1NL-Y284J-00-00
Unavailable
12
PLATE 2
1NL-28487-00-00
Unavailable
13
GASKET, EXHAUST
98507-05008-00
Unavailable
14
PLATE, rubber 2
1NL-Y284K-00-00
Unavailable
15
PLATE 2
1NL-28487-00-00
Unavailable
16
GASKET, EXHAUST
98507-05008-00
Unavailable
17
GRIP,SD-DLBG
1NL-28408-02-00
Unavailable
18
. SEAL 7
1NL-2849F-00-00
Unavailable
19
. COVER LOCK ASSEMBLY 2
1NL-28493-00-00
Unavailable
20
NUT, CAP
95307-05800-00
Unavailable
21
GUARD COMP. 2
1NL-2840M-00-00
Unavailable
22
NUT, SPRING
90183-051A0-00
Unavailable
23
WASHER, PLATE (26H)
90202-05147-00
Unavailable
24
SCREW, WITH WASHER(1NL)
90159-05134-00
Unavailable
25
BAND, tool
26H-21376-00-00
Unavailable
26
SEAT
1NL-2848H-00-00
Unavailable
27
BAG INNER 1
1NL-28479-01-00
Unavailable
