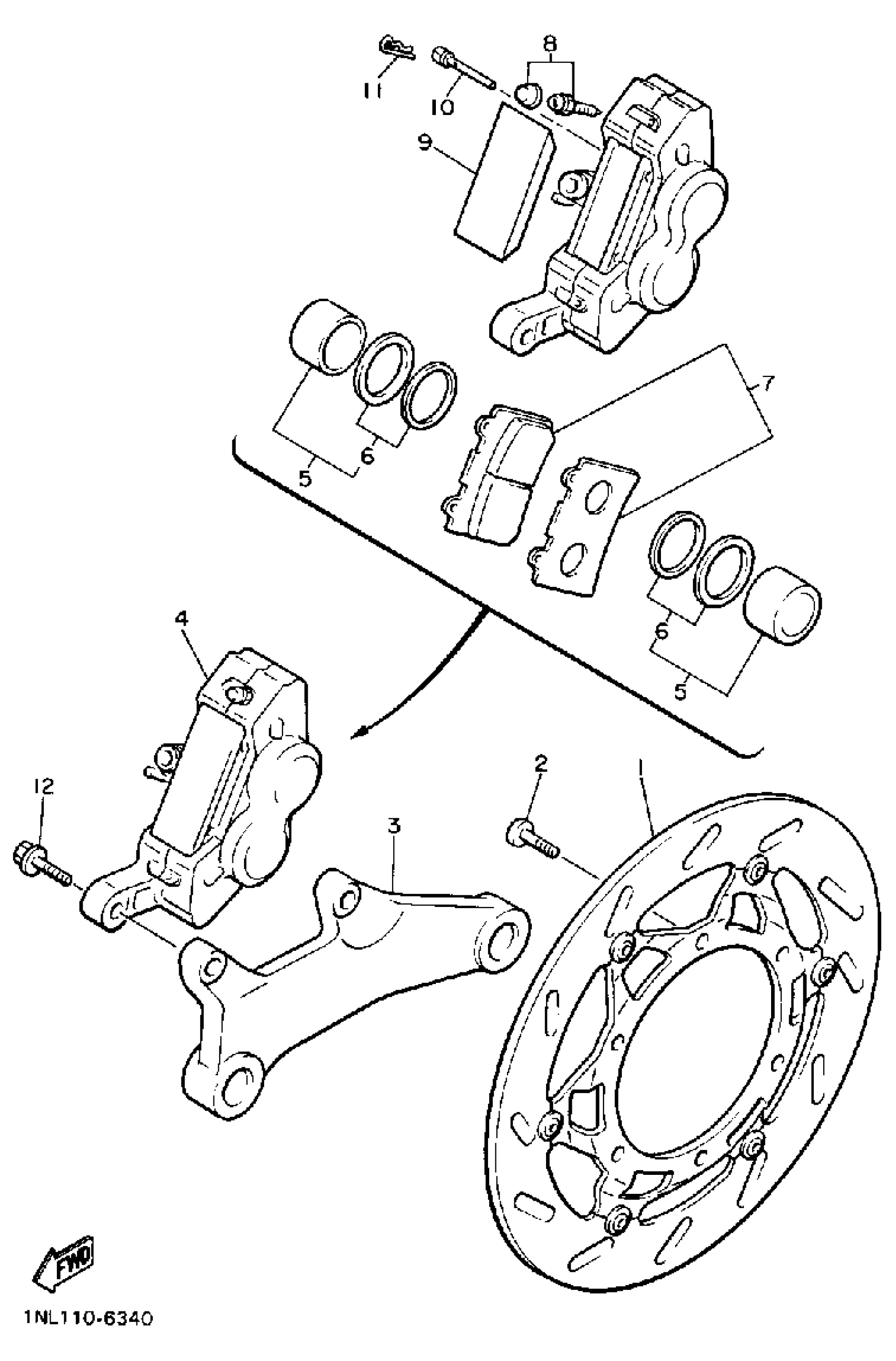

Yamaha XVZ13DSC (VENTURE ROYALE CA) 1986 REAR BRAKE CALIPER Diagram

DISK BRAKE ASS''Y (1NL-25830-51-00)

1NL-25830-52-00

Unavailable

BOLT,HEX. SOCKET BUTTON

90111-08084-00

$5.60

BRKT,CLPR

1NL-25819-01-00

Unavailable

CALIPER ASY

1NL-25810-53-00

Unavailable

PISTON ASSY, CALIPER

1KT-25802-00-00

$193.99

CALIPER SEAL KIT

1KT-25803-00-00

$58.99

. BRAKE PAD KIT

1NL-W0045-01-00

Unavailable

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

COVER, DUST

1NL-25836-01-00

$36.99

PIN, PAD

3HE-25924-00-00

Unavailable

CLIP, PAD PIN

3GM-25925-00-00

$11.99

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49
