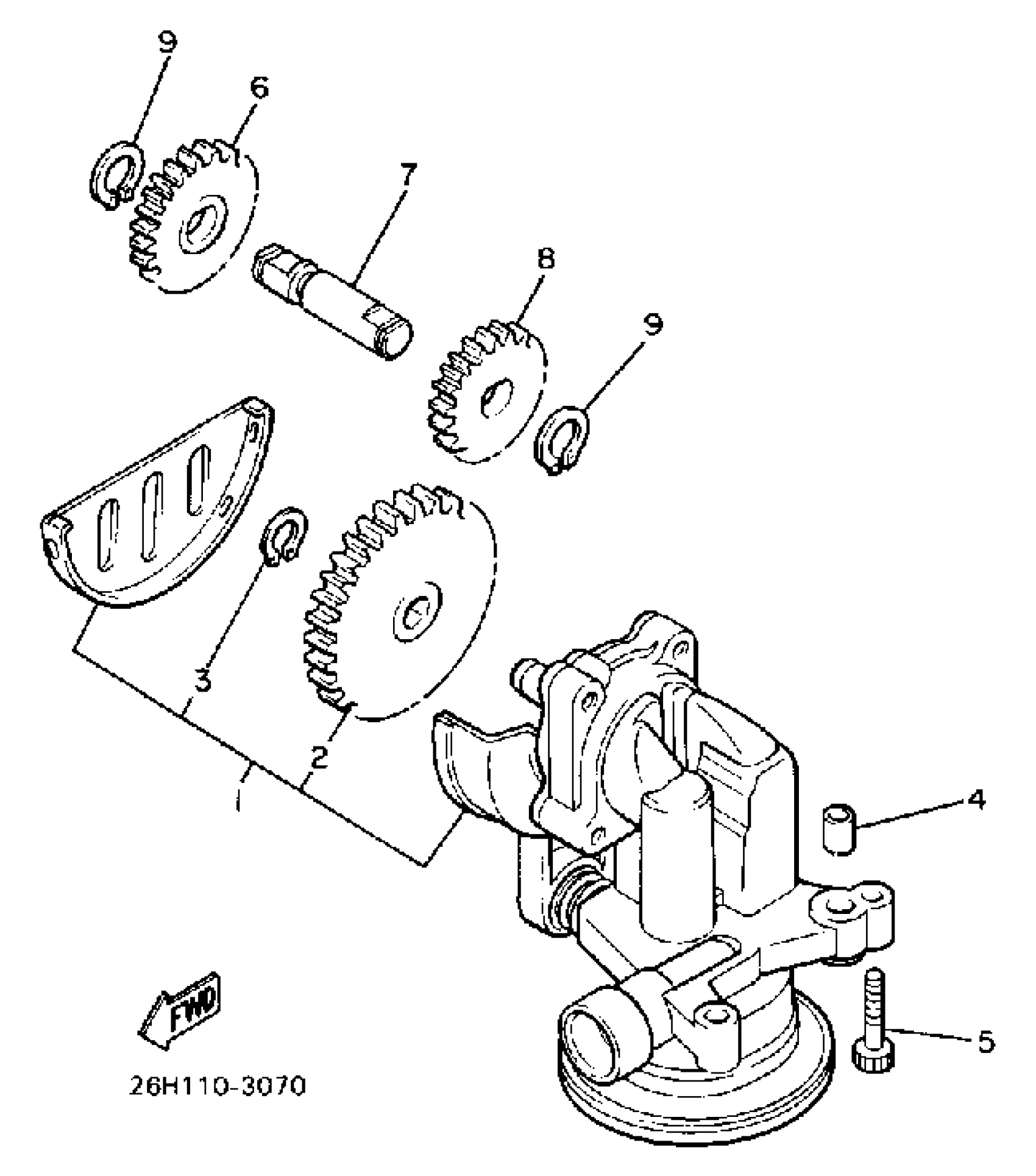

Yamaha XVZ13DSC (VENTURE ROYALE CA) 1986 OIL PUMP Diagram

OIL PUMP ASS'Y

26H-13300-02-00

Unavailable

GEAR, PUMP DRIVEN (28T)

26H-13325-00-00

Unavailable

CIRCLIP(24H)

99009-11400-00

$8.49

PIN, DOWEL(3VD)

99530-10114-00

$2.55

BOLT,SOCKET

91317-06025-00

$5.60

GEAR, PUMP IDLE 1 (16T)

26H-13351-01-00

$45.99

SHAFT, IDLE GEAR

26H-13342-00-00

Unavailable

GEAR, PUMP IDLE 2 (15T)

26H-13361-00-00

Unavailable

CIRCLIP(10Y)

99009-12400-00

$3.59
