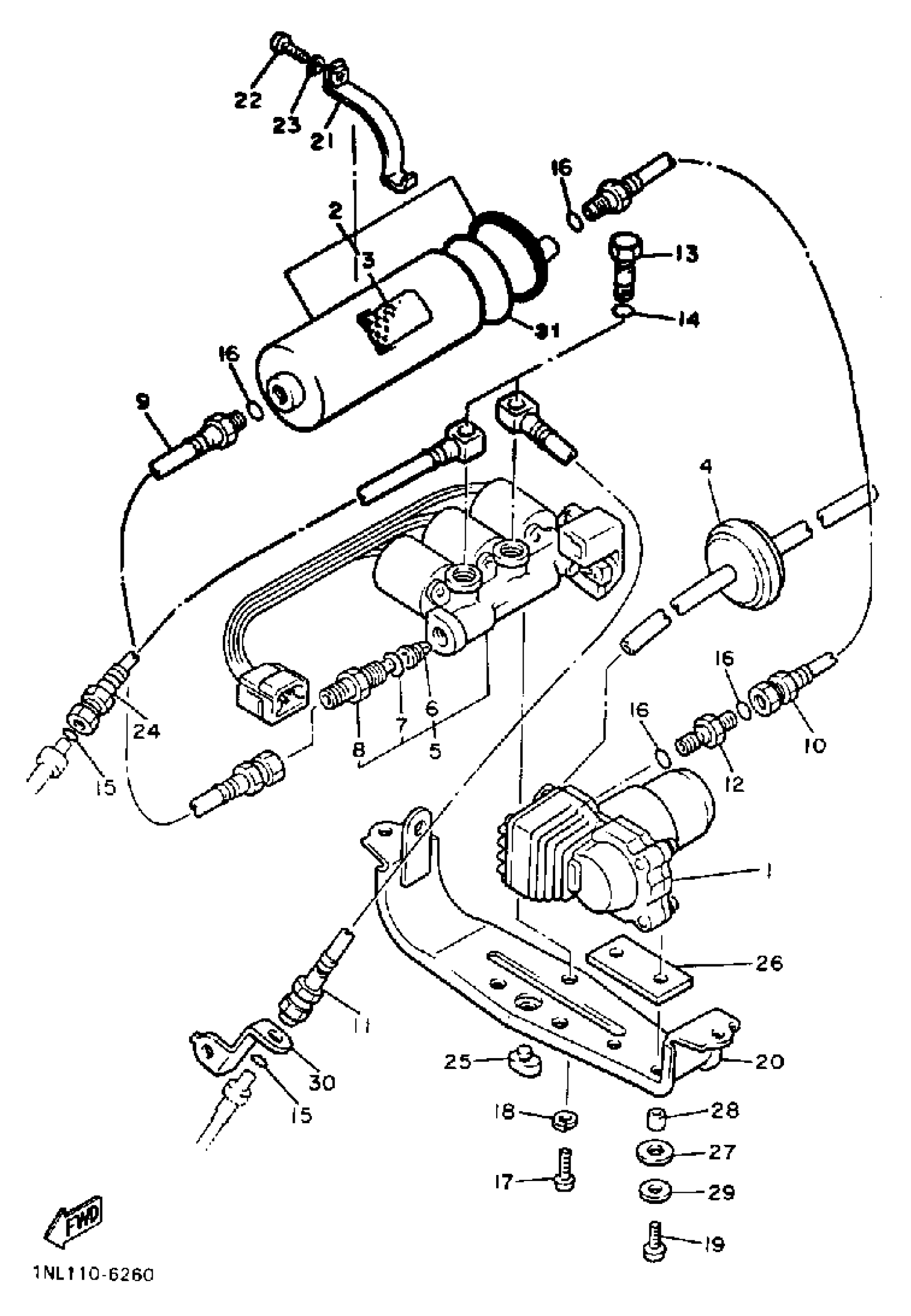

Yamaha XVZ13DSC (VENTURE ROYALE CA) 1986 LEVELING UNIT Diagram

#

Description
Price

1

AIR COMPRESSOR ASS''Y

31M-22910-00-00

Unavailable

2

DRYER AAS''Y

31M-22940-00-00

Unavailable

3

. DESICCANT

31M-22945-00-00

Unavailable

4

SUCTION FILTER ASS''Y

31M-22950-00-00

Unavailable

5

VALVE ASS''Y

31M-22960-00-00

Unavailable

6

. VALVE, reed

31M-13512-00-00

Unavailable

7

O-RING (26H)

93210-06632-00

$8.49

8

. ADAPTER

31M-22962-00-00

Unavailable

9

HOSE ASS''Y 1

31M-22906-00-00

Unavailable

10

HOSE ASS''Y 2

31M-22907-00-00

Unavailable

11

HOSE ASS''Y 3

31M-22908-00-00

Unavailable

12

UNAVAILABLE IN PRICE BOOK

[31-M2295-40-00

Unavailable

13

BOLT, union

31M-22955-00-00

Unavailable

14

O-RING (4G0)

93210-11453-00

$7.49

15

O-RING

93210-05098-00

$4.29

16

O-RING (26H)

93210-06632-00

$8.49

17

SCREW PAN HEAD

98580-06010-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

20

BRACKET, read stay

31M-21688-00-00

Unavailable

21

BAND

31M-21647-00-00

Unavailable

22

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

23

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

24

HOSE ASS''Y 4

31M-22909-00-00

Unavailable

25

HOSE ASSEMBLY 4

(31M-22958-00-00)

Unavailable

26

DAMPER

(31M-22928-00-00)

Unavailable

27

WASHER, PLATE

(90201-083H9-00)

Unavailable

28

COLLAR (3J0)

90387-05682-00

Unavailable

29

WASHER PLATE 803835240000

90201-05032-00

Unavailable

30

BRACKET, HOSE

(31M-22957-00-00)

Unavailable

31

O-RING (21A)

93210-34633-00

Unavailable
