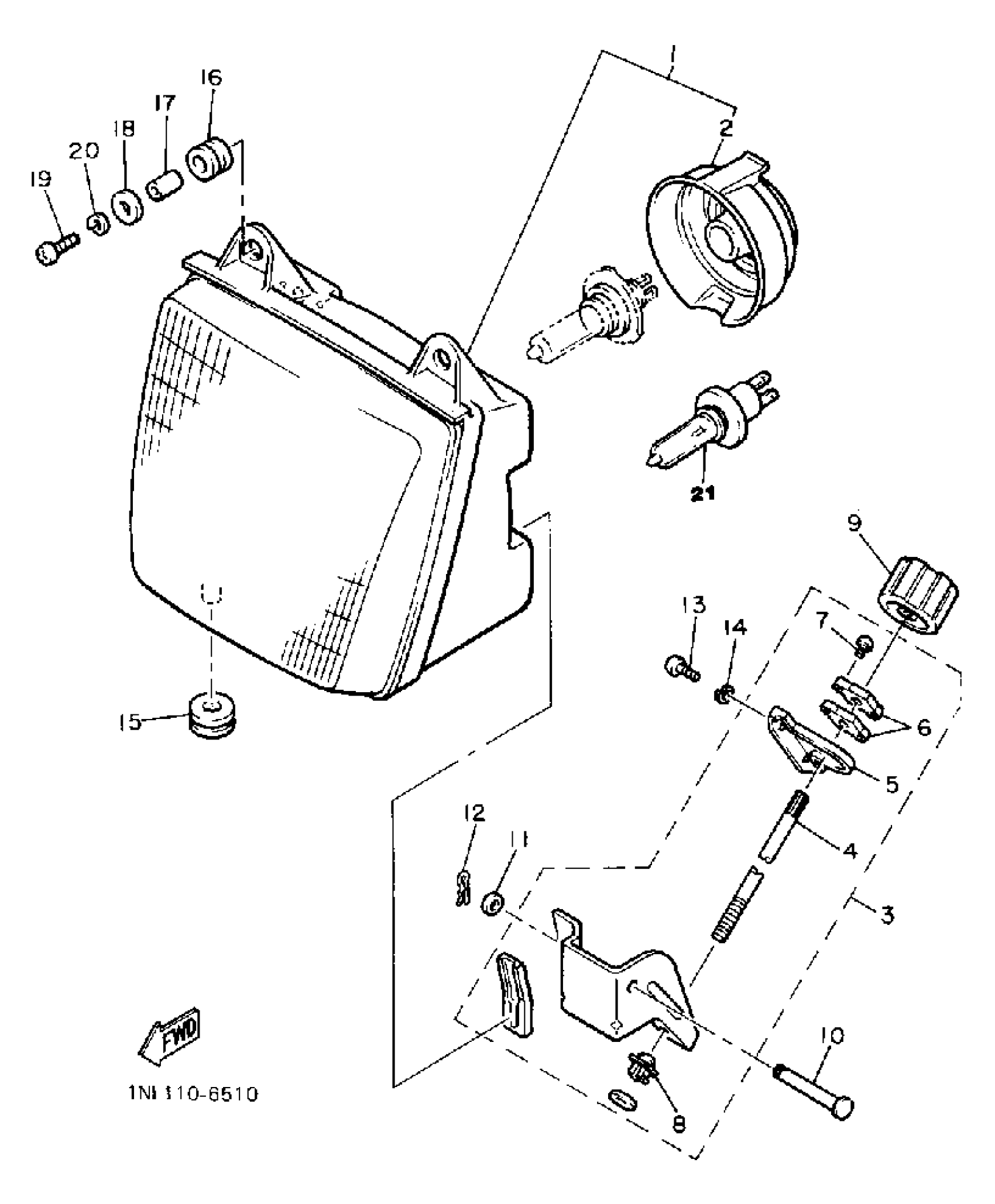

Yamaha XVZ13DSC (VENTURE ROYALE CA) 1986 HEADLIGHT Diagram
#
Description
Price
1
HEADLIGHT UNIT ASS''Y
1NL-84303-A0-00
Unavailable
2
COVER, SOCKET
36Y-84397-00-00
Unavailable
3
ROD ASS''Y
1NL-8431M-00-00
Unavailable
4
. ROD
26H-8431N-00-00
Unavailable
5
STAY, SETTING
(26H-8431R-00-00)
Unavailable
6
. HOLDER
26H-8431U-00-00
Unavailable
8
. WASHER, special
26H-84327-00-00
Unavailable
9
KNOB ASSY
26H-8432M-00-00
Unavailable
10
PIN,CLEVIS
91701-06055-00
Unavailable
13
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
16
GROMMET 839774310000
90480-14023-00
Unavailable
17
COLLAR (1T2)
90387-07598-00
Unavailable
18
WASHER, PLATE
90201-06380-00
Unavailable
19
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
20
WASHER, SPRING
92907-06100-00
Unavailable
21
BULB, HEADLIGHT
8V0-84314-10-00
Unavailable
