Description

Price

1

MASTER CYLINDER ASS''Y (CLUTCH) (26H-26450-01)

26H-26450-20-00

Unavailable

2

CYLINDER KIT, MASTER (CLUTCH)

2KW-W0099-00-00

Unavailable

3

PUSH ROD

26H-26464-00-00

$27.99

4

BUSH

3GM-26455-00-00

$24.99

5

DIAPHRAGM, RESERVOIR

26H-25854-00-00

Unavailable

6

. CAP, RESERVOIR

26H-26452-00-00

Unavailable

7

SCREW, FLAT

98707-04012-00

$2.18

8

. LEVER 1 (26H-83912-00)

26H-83912-10-00

Unavailable

9

BOLT (4L0)

90109-06577-00

$5.60

10

NUT, SELF-LOCKING

95617-06100-00

$8.49

11

. HOLDER

26H-26467-00-00

Unavailable

12

BOLT, HEXAGON

97017-06025-00

$4.24

13

WASHER, SPRING

92907-06100-00

$4.25

14

BOOT, MASTER CYLINDER

306-25862-00-00

$48.99

15

PIPE

26H-26471-02-00

Unavailable

16

HOSE, clutch 1

26H-26472-00-00

Unavailable

17

HOSE, clutch 2

26H-26473-00-00

Unavailable

18

HOLDER

(26H-26475-01-00)

Unavailable

19

SCREW, PAN

98517-06012-00

Unavailable

20

WASHER, SPRING

92907-06100-00

$4.25

21

PROTECTOR, BRAKE HOSE

341-25881-00-00

Unavailable

22

BOLT, UNION(3GM)

90401-10159-00

Unavailable

23

WASHER, PLATE(481)

90201-10118-00

Unavailable

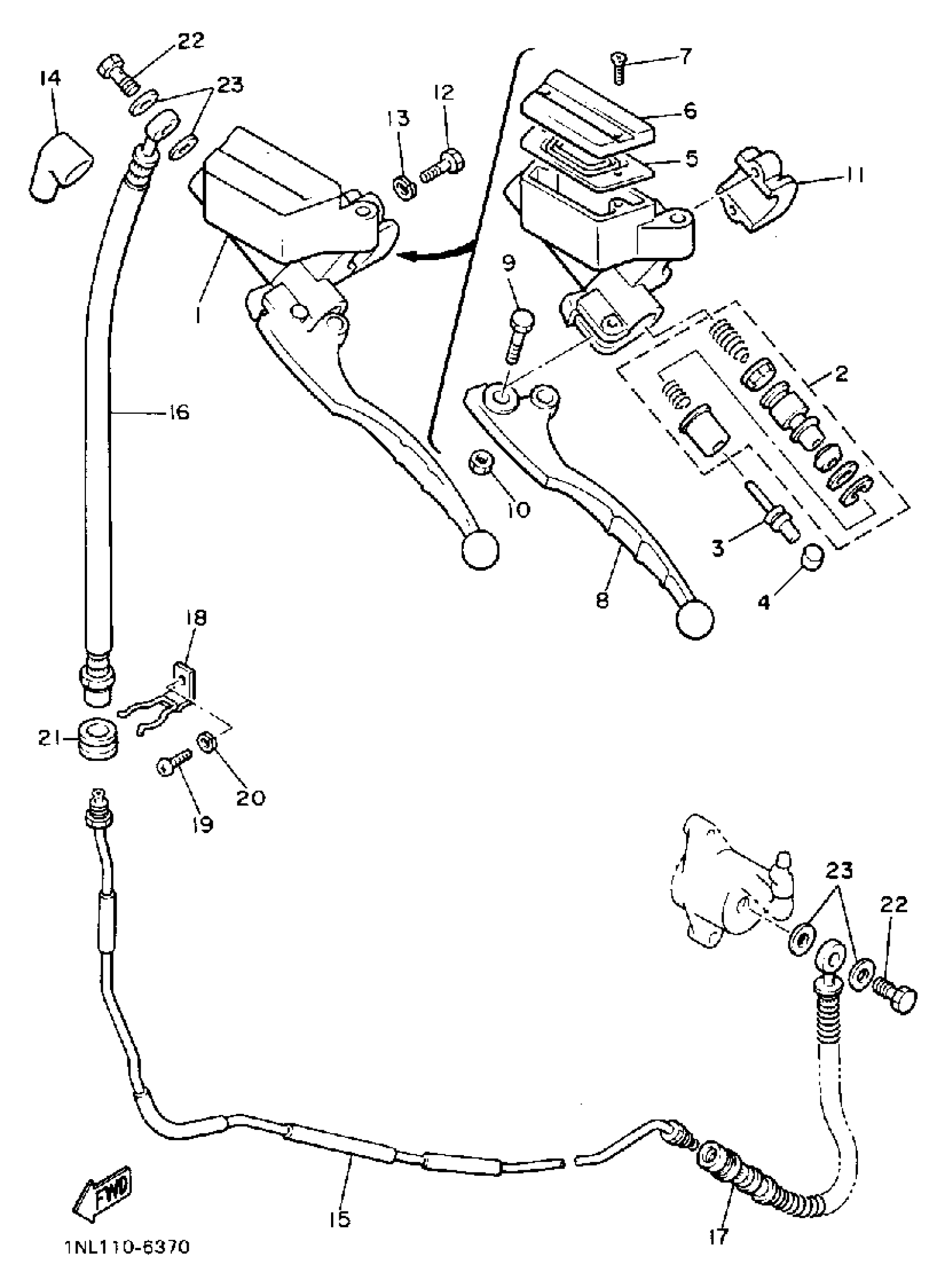

Yamaha XVZ13DSC (VENTURE ROYALE CA) 1986 FRONT MASTER CYLINDER 2 Diagram

MASTER CYLINDER ASS''Y (CLUTCH) (26H-26450-01)

CYLINDER KIT, MASTER (CLUTCH)

PUSH ROD

BUSH

DIAPHRAGM, RESERVOIR

. CAP, RESERVOIR

SCREW, FLAT

. LEVER 1 (26H-83912-00)

BOLT (4L0)

NUT, SELF-LOCKING

. HOLDER

BOLT, HEXAGON

WASHER, SPRING

BOOT, MASTER CYLINDER

PIPE

HOSE, clutch 1

HOSE, clutch 2

HOLDER

SCREW, PAN

WASHER, SPRING

PROTECTOR, BRAKE HOSE

BOLT, UNION(3GM)

WASHER, PLATE(481)
