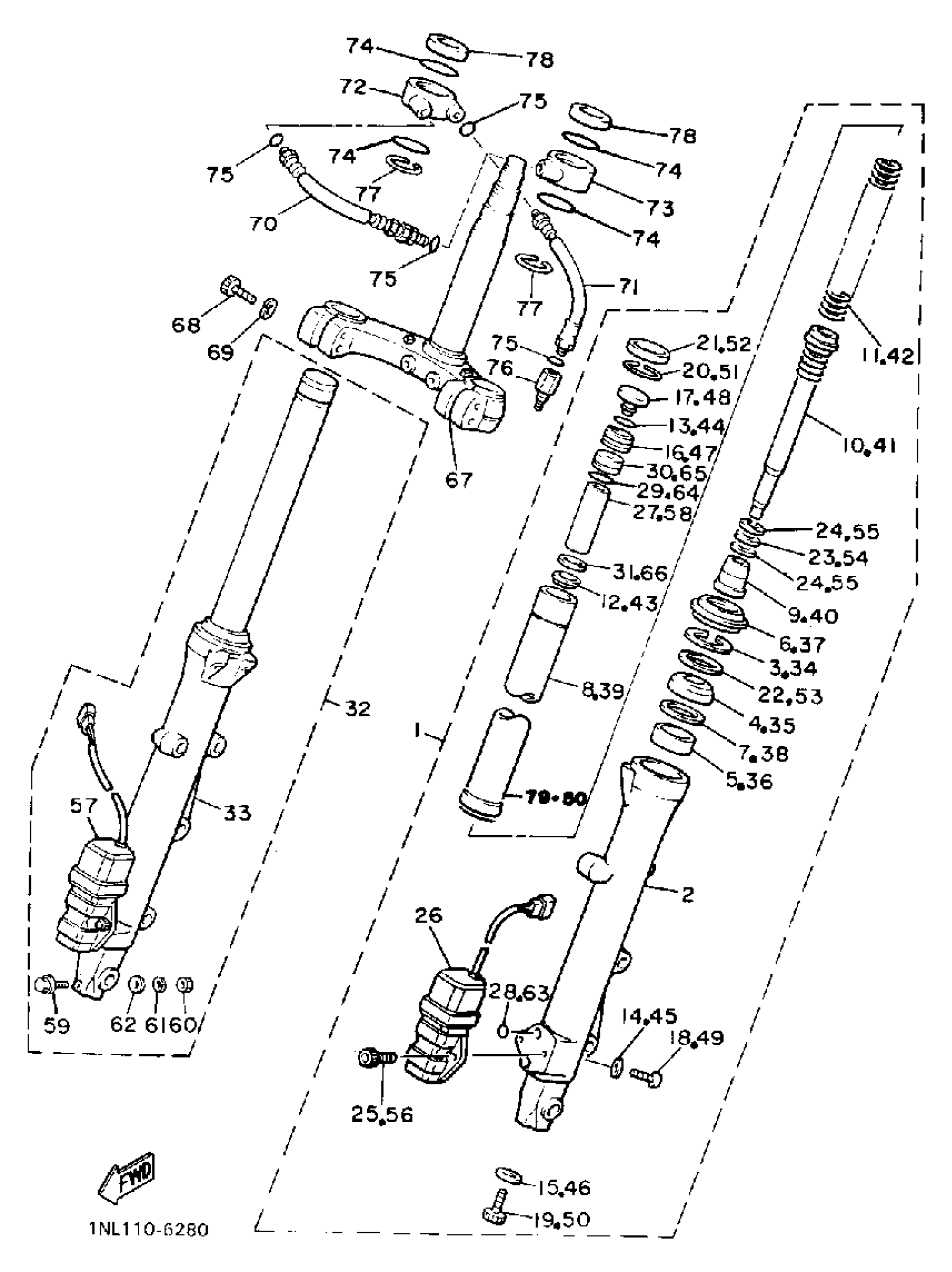

Yamaha XVZ13DSC (VENTURE ROYALE CA) 1986 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY L
1NL-23102-00-00
Unavailable
2
. TUBE, OUTER 1
1NL-23126-00-00
Unavailable
7
WASHER, SPRING UPPER
26H-23149-00-00
Unavailable
8
. INNER TUBE COMP 1
3JJ-23110-00-00
Unavailable
9
. SPINDLE, taper
26H-23173-00-00
Unavailable
10
CYLINDER, FRTFRK FRONT FORK (1NL-23170-00)
2WR-23170-00-00
Unavailable
11
. SPRING, front fork
41R-23141-00-00
Unavailable
12
. SEAT, SPRING UPPER
1FK-23142-00-00
Unavailable
13
O-RING
26H-23147-00-00
Unavailable
16
. BOLT, cap
1NL-23111-00-00
Unavailable
17
CAP, FRONT FORK
26H-23168-00-00
Unavailable
18
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
19
BOLT
3R4-23181-L0-00
Unavailable
20
RING, snap
26H-23153-00-00
Unavailable
21
GASKET
26H-23163-00-00
Unavailable
22
. WASHER, oil seal
26H-23146-00-00
Unavailable
23
. WASHER
26H-2319L-00-00
Unavailable
24
SPRING, VALVE
26H-2319M-00-00
Unavailable
25
BOLT, SOCKET
91314-06016-00
Unavailable
26
. MODULATOR ASSEMBLY 1 ASS''Y 1
1NL-2310E-00-00
Unavailable
27
. SPACER
1NL-2316E-00-00
Unavailable
28
O-RING (26H)
93210-14579-00
Unavailable
29
. O-RING
1NL-23188-00-00
Unavailable
30
. CAP
1NL-2319U-00-00
Unavailable
31
. O-RING
1NL-23188-10-00
Unavailable
32
FRONT FORK ASSEMBLY R
1NL-23103-00-00
Unavailable
33
. TUBE, OUTER 2
1NL-23136-00-00
Unavailable
38
WASHER, SPRING UPPER
26H-23149-00-00
Unavailable
39
. INNER TUBE COMP 1
3JJ-23110-00-00
Unavailable
40
. SPINDLE, taper
26H-23173-00-00
Unavailable
41
CYLINDER, FRTFRK FRONT FORK (1NL-23170-00)
2WR-23170-00-00
Unavailable
42
. SPRING, front fork
41R-23141-00-00
Unavailable
43
. SEAT, SPRING UPPER
1FK-23142-00-00
Unavailable
44
O-RING
26H-23147-00-00
Unavailable
47
. BOLT, cap
1NL-23111-00-00
Unavailable
48
CAP, FRONT FORK
26H-23168-00-00
Unavailable
49
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
50
BOLT
3R4-23181-L0-00
Unavailable
51
RING, snap
26H-23153-00-00
Unavailable
52
GASKET
26H-23163-00-00
Unavailable
53
. WASHER, oil seal
26H-23146-00-00
Unavailable
54
. WASHER
26H-2319L-00-00
Unavailable
55
SPRING, VALVE
26H-2319M-00-00
Unavailable
56
BOLT, SOCKET
91314-06016-00
Unavailable
57
. MODULATOR ASSEMBLY 1 ASS''Y 1
1NL-2310E-00-00
Unavailable
58
. SPACER
1NL-2316E-00-00
Unavailable
59
. BOLT 2
1NL-23356-00-00
Unavailable
60
NUT(6L2)
95333-08600-00
Unavailable
61
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
62
.. WASHER, PLATE
92990-08600-00
Unavailable
63
O-RING (26H)
93210-14579-00
Unavailable
64
. O-RING
1NL-23188-00-00
Unavailable
65
. CAP
1NL-2319U-00-00
Unavailable
66
. O-RING
1NL-23188-10-00
Unavailable
67
UNDER BRACKET COMP
2WR-23340-01-00
Unavailable
68
BOLT, SOCKET
91314-08035-00
Unavailable
69
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
70
HOSE ASSEMBLY
(26H-2318J-00-00)
Unavailable
70
HOSE ASSEMBLY
31M-2318J-00-00
Unavailable
71
HOSE, air 2
1NL-2318K-00-00
Unavailable
72
JOINT, air 2
26H-2319A-00-00
Unavailable
73
JOINT, air 1
26H-2318A-00-00
Unavailable
74
O-RING
26H-23188-00-00
Unavailable
75
O-RING
3J2-23147-00-00
Unavailable
76
CONNECTOR
31M-2318E-00-00
Unavailable
77
RING, snap
26H-23153-00-00
Unavailable
78
GASKET
26H-23163-00-00
Unavailable
79
PISTON, FRONT FORK
3JJ-23171-00-00
Unavailable
80
PISTON, FRONT FORK
3JJ-23171-00-00
Unavailable
