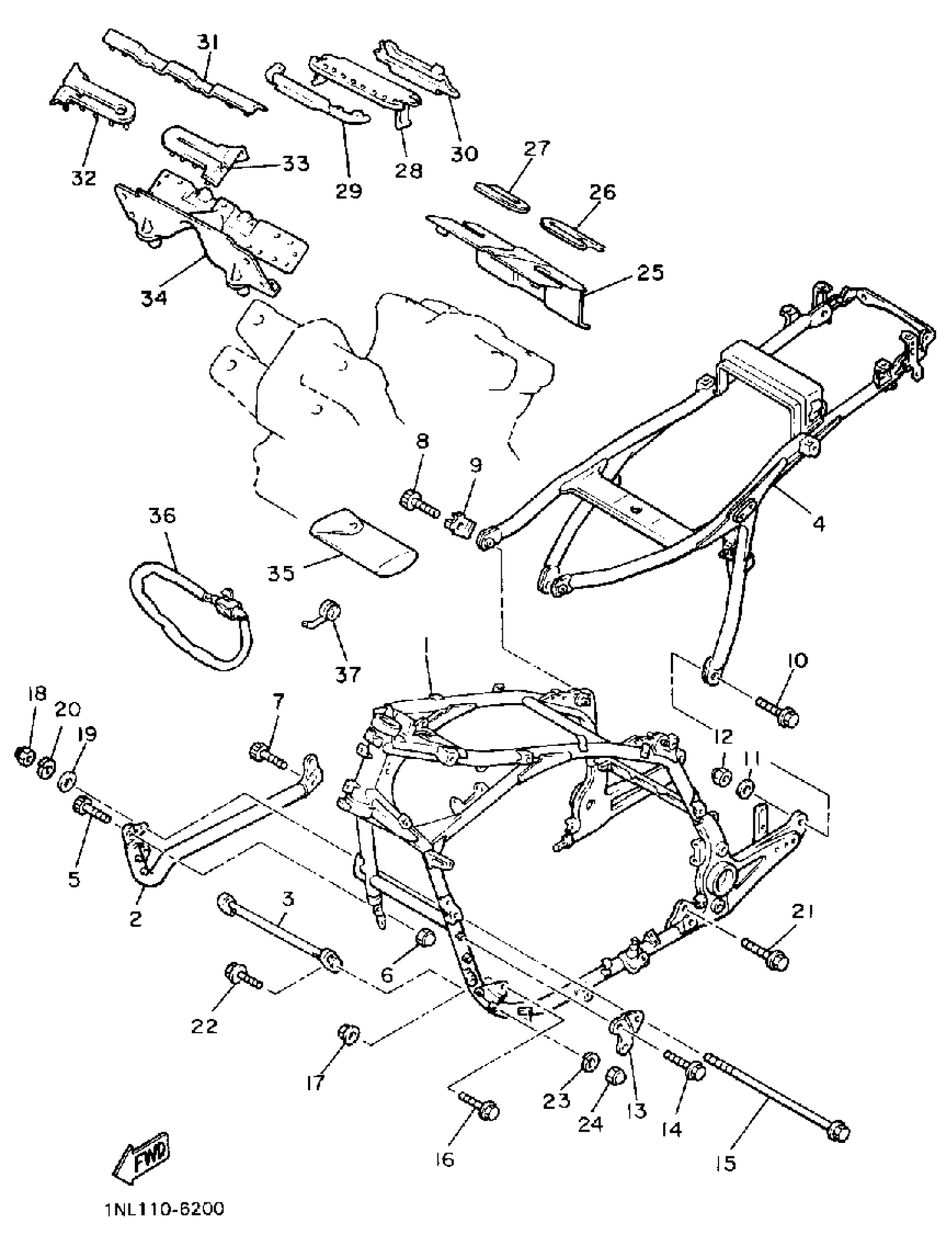

Yamaha XVZ13DSC (VENTURE ROYALE CA) 1986 FRAME Diagram

#

Description
Price

1

FRAME

1NL-21110-00-33

Unavailable

2

DOWN TUBE COMP.

26H-21140-01-33

Unavailable

3

CROSS BAR COMPLETE

26H-2141V-00-00

Unavailable

4

REAR FRAME COMP

1NL-21190-00-33

Unavailable

5

BOLT, SOCKET

91317-10030-00

$9.49

6

NUT

90179-10321-00

Unavailable

7

BOLT, SOCKET

91317-10020-00

Unavailable

8

BOLT (583)

90101-10303-00

$9.49

9

WASHER, LOCK

90215-10192-00

Unavailable

10

BOLT, FLANGE(4GB)

95817-10045-00

$6.99

11

WASHER, PLATE (2J2)

90201-10696-00

$7.49

12

NUT, CROWN(3BM)

90176-10073-00

$8.49

13

STAY, ENGINE 2

(26H-21315-00-00)

Unavailable

14

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

15

BOLT, washer based

90105-10254-00

Unavailable

16

BOLT, WASHER BASED(4EB)

90105-10788-00

Unavailable

17

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

18

NUT, CROWN (650)

95380-10800-00

Unavailable

19

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

20

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

21

BOLT, WASHER BASED (26H)

90105-12252-00

Unavailable

22

BOLT, FLANGE

95817-08060-00

Unavailable

23

WASHER(JN5)

92907-08100-00

Unavailable

24

NUT, crown

90176-08034-00

Unavailable

25

COVER 2

26H-2117M-00-00

Unavailable

26

COVER 3

26H-2117N-00-00

Unavailable

27

COVER 4

26H-2117R-00-00

Unavailable

28

COVER 7

26H-2117V-00-00

Unavailable

29

COVER 5

26H-2117T-00-00

Unavailable

30

COVER 6

26H-2117U-00-00

Unavailable

31

COVER 8

26H-2117W-00-00

Unavailable

32

COVER 9

26H-2117X-00-00

Unavailable

33

COVER 10

26H-2117Y-00-00

Unavailable

34

COVER

26H-2117F-00-00

Unavailable

35

TOOL KIT

1NL-W2810-00-00

Unavailable

36

WHEEL LOCK ASSEMBLY (4X7-W2171-00)

4W5-W2171-00-00

Unavailable

37

GAUGE, AIR

2X4-2811A-01-00

Unavailable
